Revox C270 User Manual

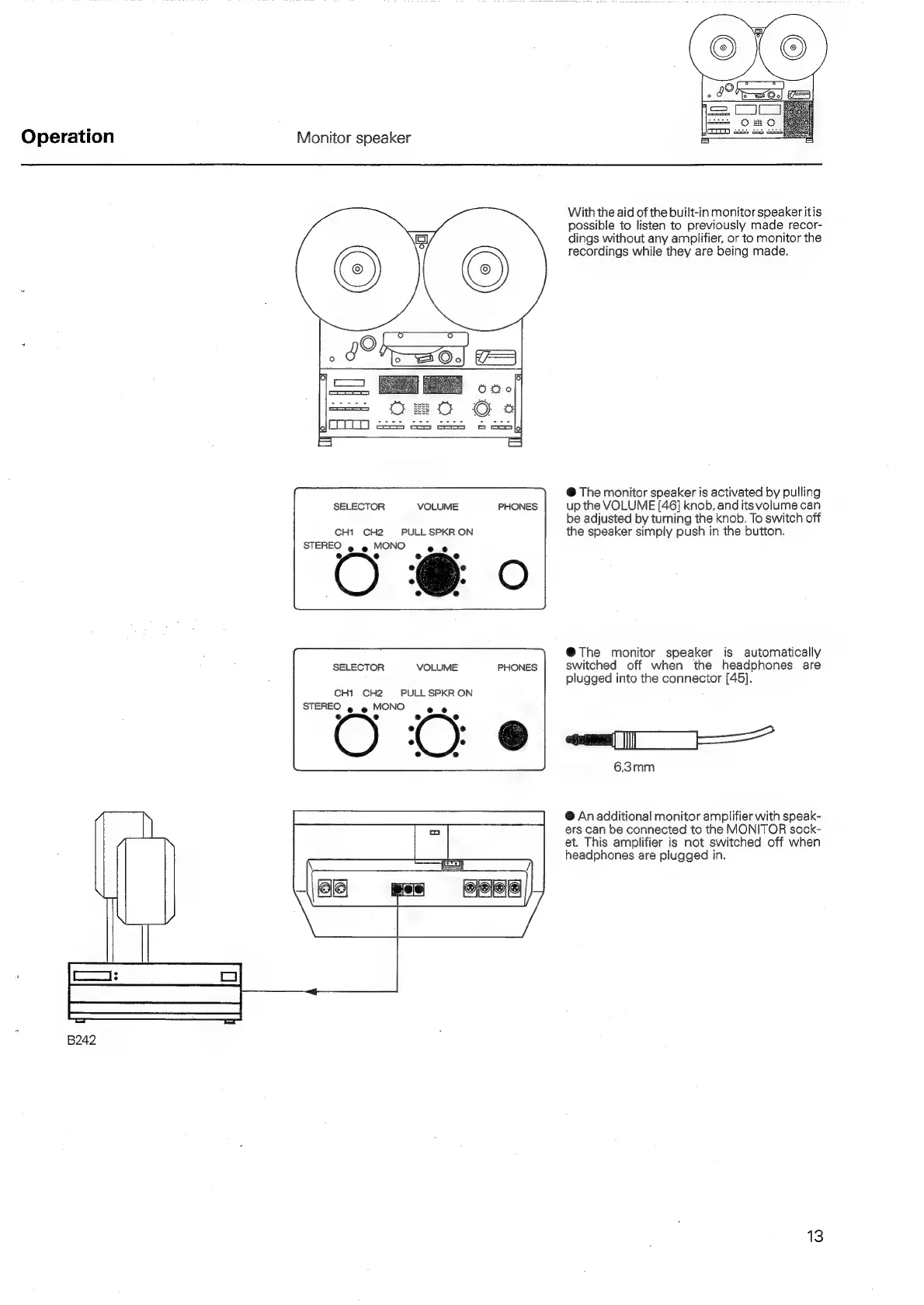

Operation
Monitor speaker
SELECTOR
CH1 CH2 PULL SPKR ON
STEREO » » MONO
SELECTOR
CH1 CH2 PULL SPKRON
STEREO ¢ » MONO
e e@
VOLUME
ee
VOLUME
ee
J
PHONES
O
PHONES
With the aid of the built-in monitor speaker itis
possible to listen to previously made recor-
dings without any amplifier, or to monitor the
recordings while they are being made.
@ The monitor speaker is activated by pulling
up the VOLUME [46] knob, and its volume can
be adjusted by turning the knob. To switch off
the speaker simply push in the button.
@The monitor speaker is automatically
switched off when the headphones are
plugged into the connector [45].
oma]
6.3mm
@ An additional monitor amplifier with speak-
ers can be connected to the MONITOR sock-
et. This amplifier is not switched off when
headphones are plugged in.
13
