Air
Accessories
R96V Series
8
FILTER RACK FILTER SIZES* INCHES [mm]
MODEL
RXGF-CB
(UPFLOW/
HORIZONTAL)
RXGF-CD
(UPFLOW)
RXGF-CC
(DOWNFLOW)
R96VA040
15
3
/4 x 25
[400 x 635]
15
3
/4 x 25
[400 x 635]
12 x 20
[305 x 508]
R96VA060
15
3
/4 x 25
[400 x 635]
15
3
/4 x 25
[400 x 635]
12 x 20
[305 x 508]
R96VA070
15
3
/4 x 25
[400 x 635]
15
3
/4 x 25
[400 x 635]
12 x 20
[305 x 508]
R96VA085
19
1
/4 x 25
[489 x 635]
15
3
/4 x 25
[400 x 635]
12 x 20
[305 x 508]
R96VA100
19
1
/4 x 25
[489 x 635]
15
3
/4 x 25
[400 x 635]
12 x 20
[305 x 508]
R96VA115
22
3
/4 x 25
[578 x 635]
15
3
/4 x 25
[400 x 635]
14 x 20
[356 x 508]
FOR HIGH ALTITUDES:
NOTE: For Canadian installations only, an optional derate (manifold
gas pressure reduction) method may be used to adjust the
furnace for altitude. See Installation Instructions for more
information. This optional method may NOT be used for U.S.
installations. See installation instructions as appropriate orifice
change is required.
L.P. CONVERSION KIT: RXGJ-FP34
CONDENSATE PUMP KIT: PROSTOCK & 1PCB151TUL
DOWNFLOW/HORIZONTAL CONVERSION KIT: RXGY-CK
DOWNFLOW/HORIZONTAL LEFT ZERO CLEARANCE
CONVERSION KIT: RXGY-ZK
COMBUSTIBLE FLOOR BASE: RXGC-B17
RXGC-B21
RXGC-B24
INDOOR COIL CASINGS
MODEL
NUMBER
RXBC-D17A1
RXBC-D21A1
RXBC-D21B1
RXBC-D24A1
VENT TERMINATION KITS: =
RXGY-E02: Vertical/Horizontal Concentric Vent Termination Kit
2" Pipe (US Only)
RXGY-E02A: Vertical/Horizontal Concentric Vent Termination Kit
2" Pipe (US & Canadian)
RXGY-E03: Vertical/Horizontal Concentric Vent Termination Kit
3" Pipe (US Only)
RXGY-E03A: Vertical/Horizontal Concentric Vent Termination Kit
3" Pipe (US & Canadian)
RXGY-G02: Direct Vent Furnace Side Wall Vent 2" or 3" (US Only)
RXGY-D05: Combustion Air Drain Kit 2"
RXGY-D06: Combustion Air Drain Kit 3"
NEUTRALIZER KIT: RXGY-A01
(Replacement Cartridge 54-22120-01)
EXTERNAL BOTTOM FILTER (UPFLOW/HORIZONTAL) RACK:
RXGF-CB
EXTERNAL SIDE (UPFLOW) FILTER RACK: RXGF-CD
EXTERNAL (DOWNFLOW) FILTER RACK: RXGF-CC
*Filter racks are shipped without filters.
Filters shipped with furnace may be used or a suitable 1" [25.4 mm] filter.
[ ] Designates Metric Conversions
CONTRACTOR BENEFITS:
• Auto/Self Configuration
• Day-at-a-glance scheduling, with programmable fan
• Intuitive wiring connections
• Dual fuel ready
• Automatically optimizes airflow
• System status & mode information
• Complete diagnostic information on display
HOMEOWNER BENEFITS:
• Large, easy to read icons and characters
• Auto-mode control
• Smart recovery
• Continuous Fan Mode (5 speeds)
• Humidity Control
• Water heater, pool heater integration* (check model compatibility)
*ECONET CONTROL ACCESSORIES:
Wall Plate = RCPN-AMC08
Face Plate = RETSTFPL
IMPORTANT: Existing Comfort Control
2
System Condensing Units &
Heat Pumps are compatible with EcoNet when matched with a R96V
Gas Furnace and with an EcoNet Translator (RETRN620CC2) installed
on the Comfort Control
2
System control board.
*Available through PROSTOCK
®
.

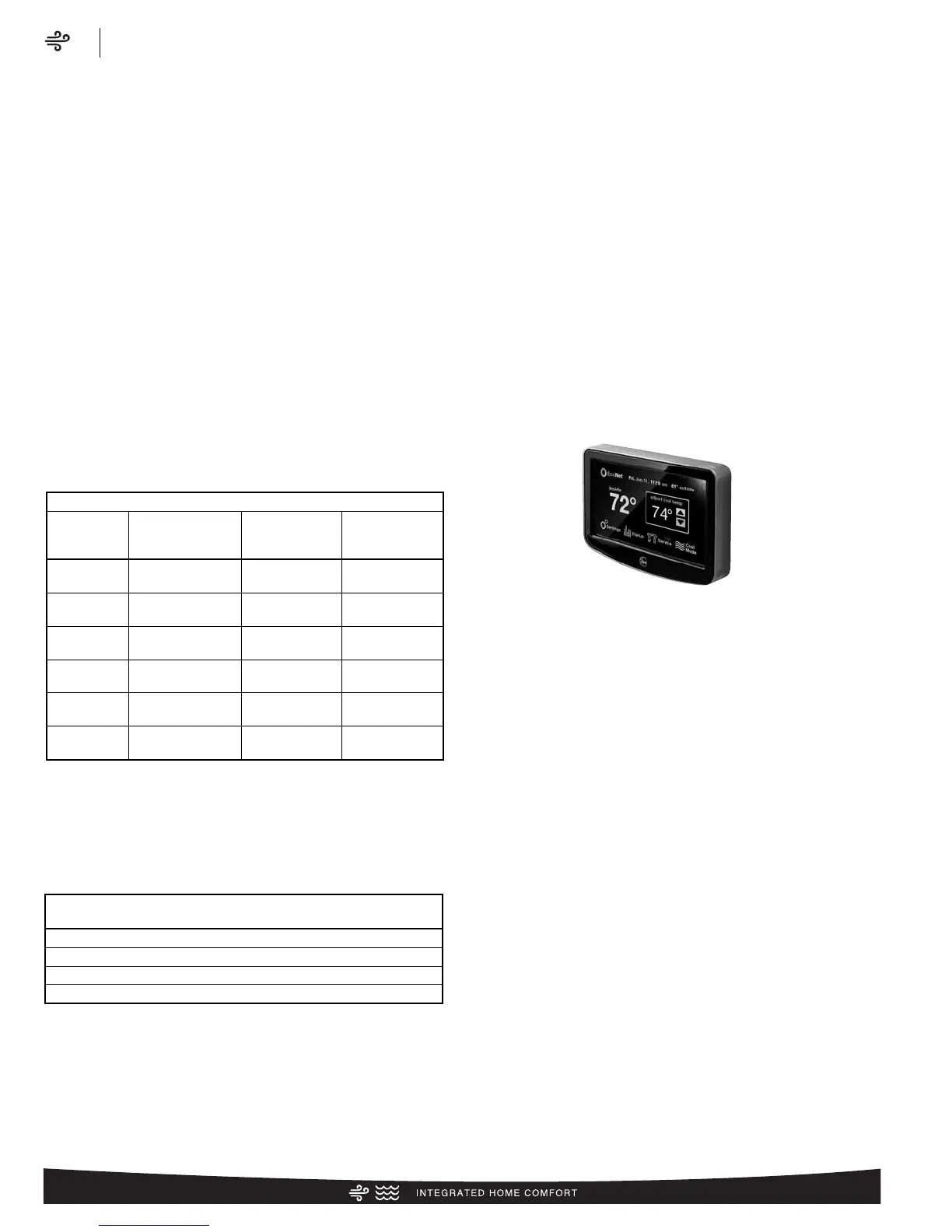

ECONET CONTROL
RECOMMENDED COMMUNICATING FURNACE CONTROL
RETST600SYS
