2.4.2 INSTALLING THE EXPANSION COMPONENT
 Unplug the machine power cord before starting the following procedure.

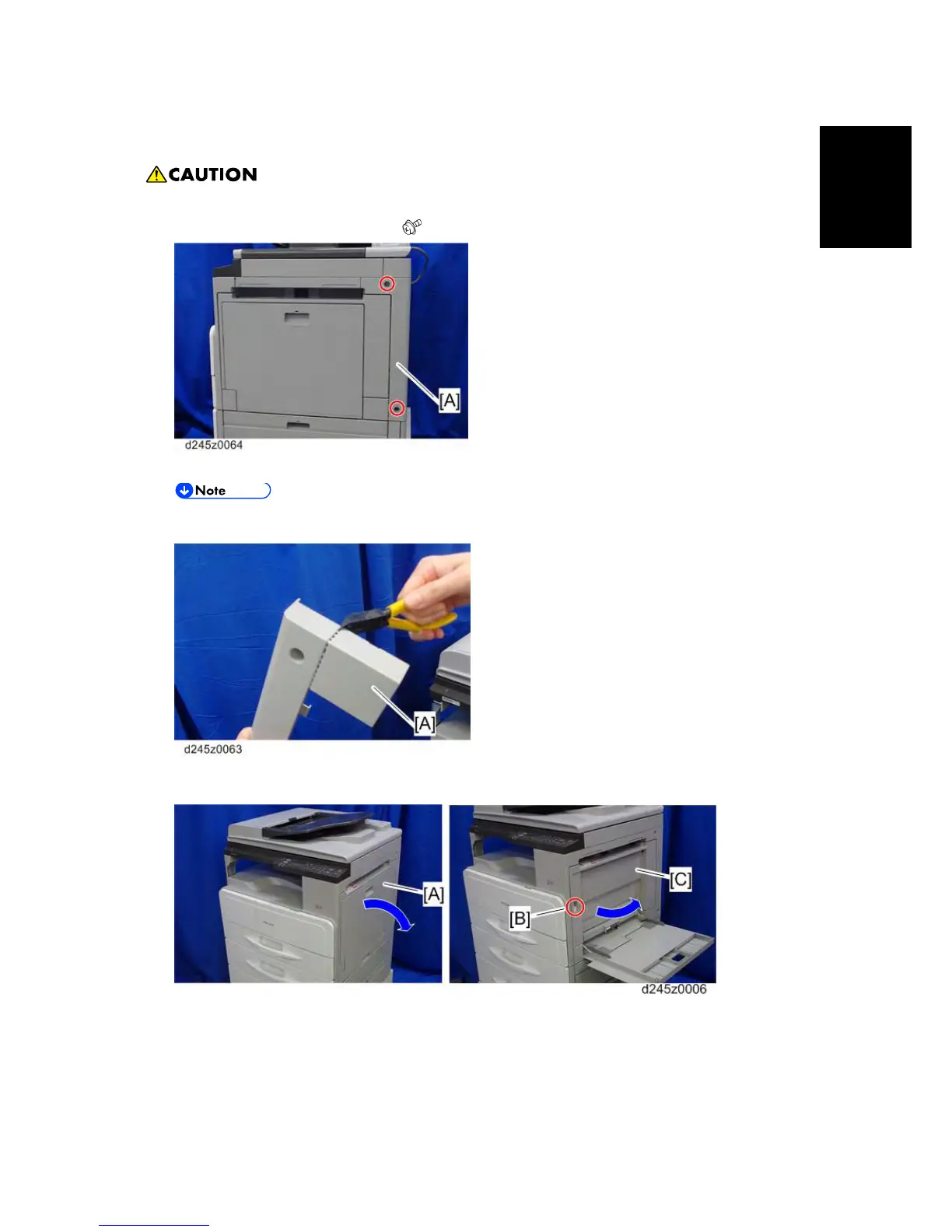

1. Remove the left rear cover [A] (
x 2).
2. Cut off the part [A] of the left rear cover.
 Be careful not to get hurt when cutting off.
3. Open the by-pass tray [A], and then press the button [B] to open the right door [C].
4. Open the front door, and then pull the toner bottle holder lever [A] upward.
5. Release the lock lever [B], and then pull the toner bottle holder [C].
To Next Page
