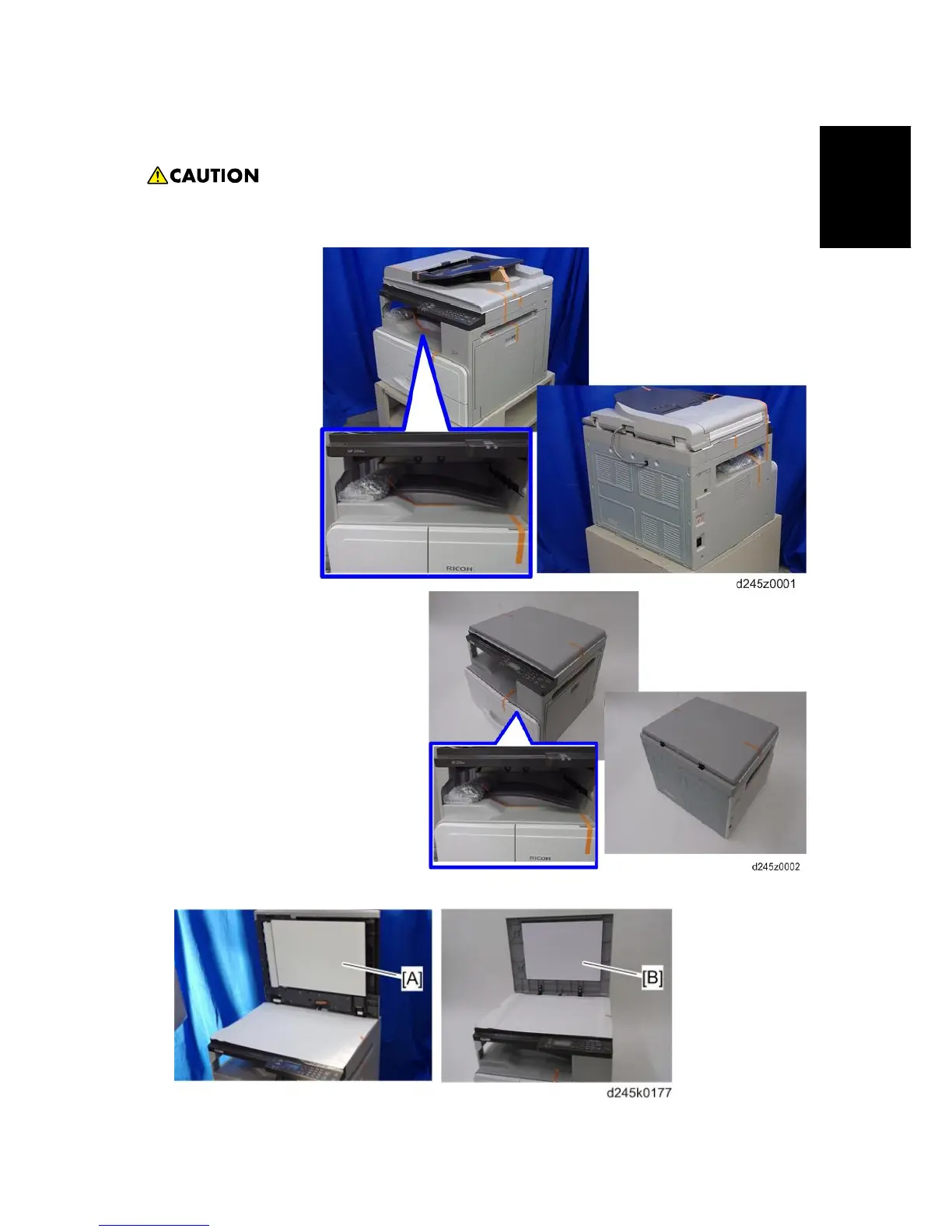

Copier Installation
SM 2-5
D245/D246/D247
Inst
allation
2.2.2 INST
ALLA
TION
PROCEDURE

Unplug the machine power cord bef
ore st
arting the following
procedure.
1.
Remove filament t
ape and other p
adding.
DF Model (D247)
Platen Model (D245/D246)
2.
Open the
ADF [A] or platen cover [B], and then remove the sheet and filament t
apes.
Rev
. 01/22/2016
38
40
