Getting Started

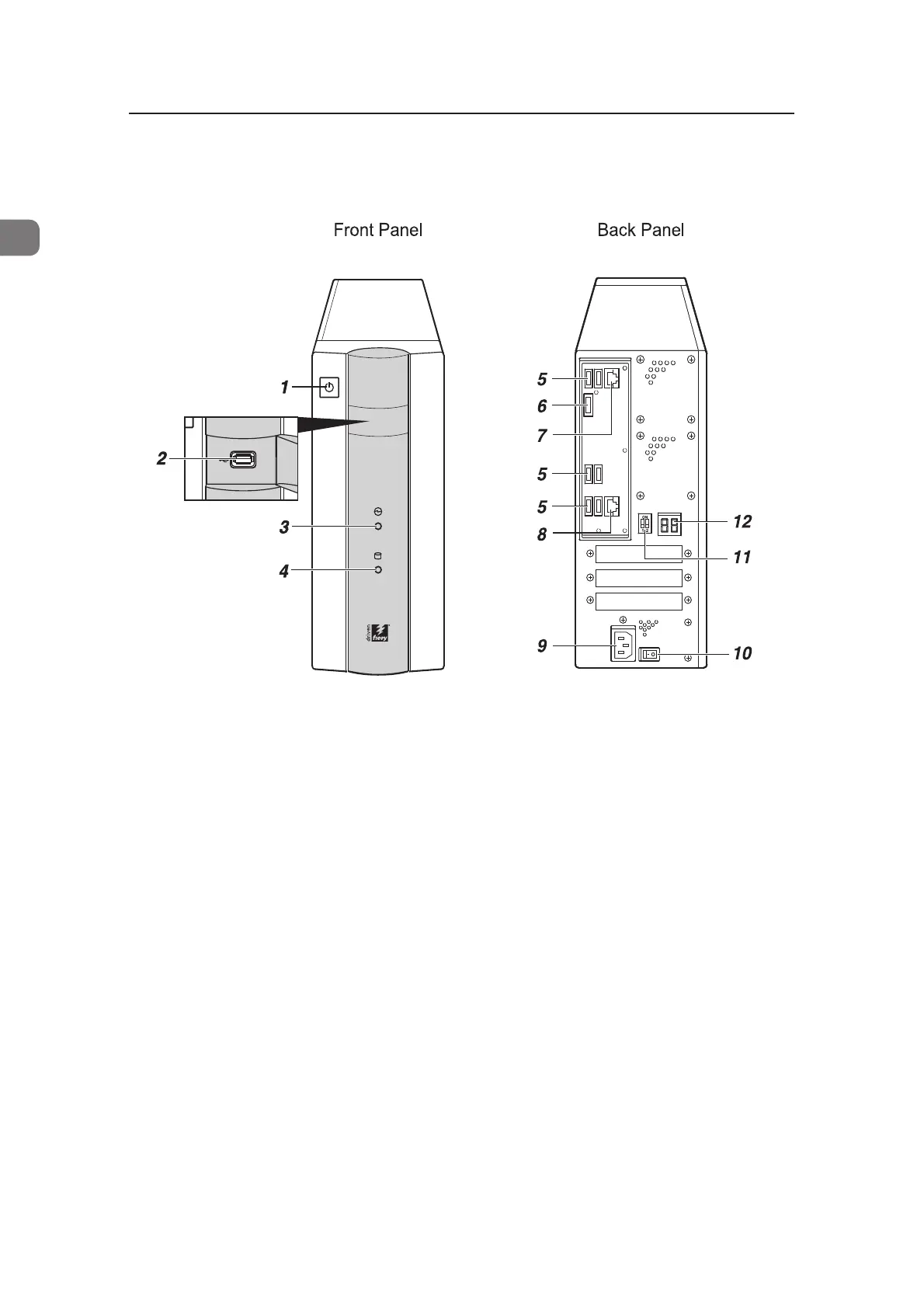

Guide to Components
EBA002
1. Power switch
See page A-17 “Color Controller Startup,
Shutdown, and Restart”.
2. Front side USB port
Port for installing system software, acti-
vating Fiery features, or printing from a
prepared USB flash drive.
3. Power indicator
When Color Controller is operating, the
LED is lit.
4. HDD access indicator
While Color Controller HDD is being ac-
cessed, the indicator flashes.
5. Back side USB ports
Ports for installing system software, acti-
vating Fiery features, or printing from a
prepared USB flash drive.
6. Not used (monitor port)
7. Network connector 10/100/1000Mbps
A port for connecting Color Controller to
a LAN.
8. Network connector 10/100/1000Mbps
A port for connecting Color Controller to
the main unit.
9. Power connector
10. Main power switch
See page A-17 “Color Controller Startup,
Shutdown, and Restart”.
11. Service switches (for service use
only)
12. LEDs (2-digit diagnostic display)
