Paper Feed Section
SM 4-54 D245/D246/D247

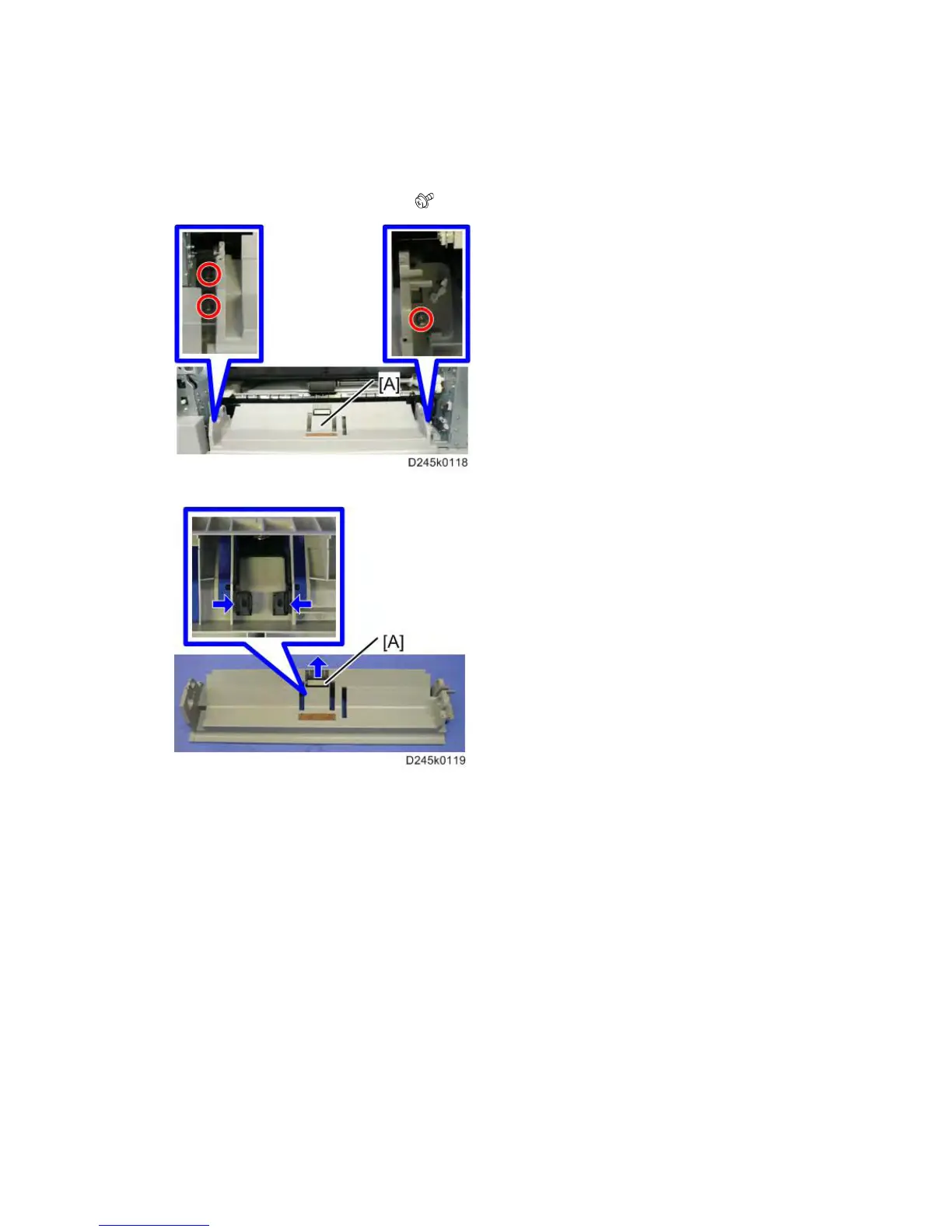

4.12.9 BY-PASS TRAY FRICTION PAD
1. By-pass paper feed roller unit (page 4-52)
2. By-pass tray lower section [A] (
x 3)
3. By-pass tray friction pad [A]
