Copier Installation
SM 2-6 D245/D246/D247

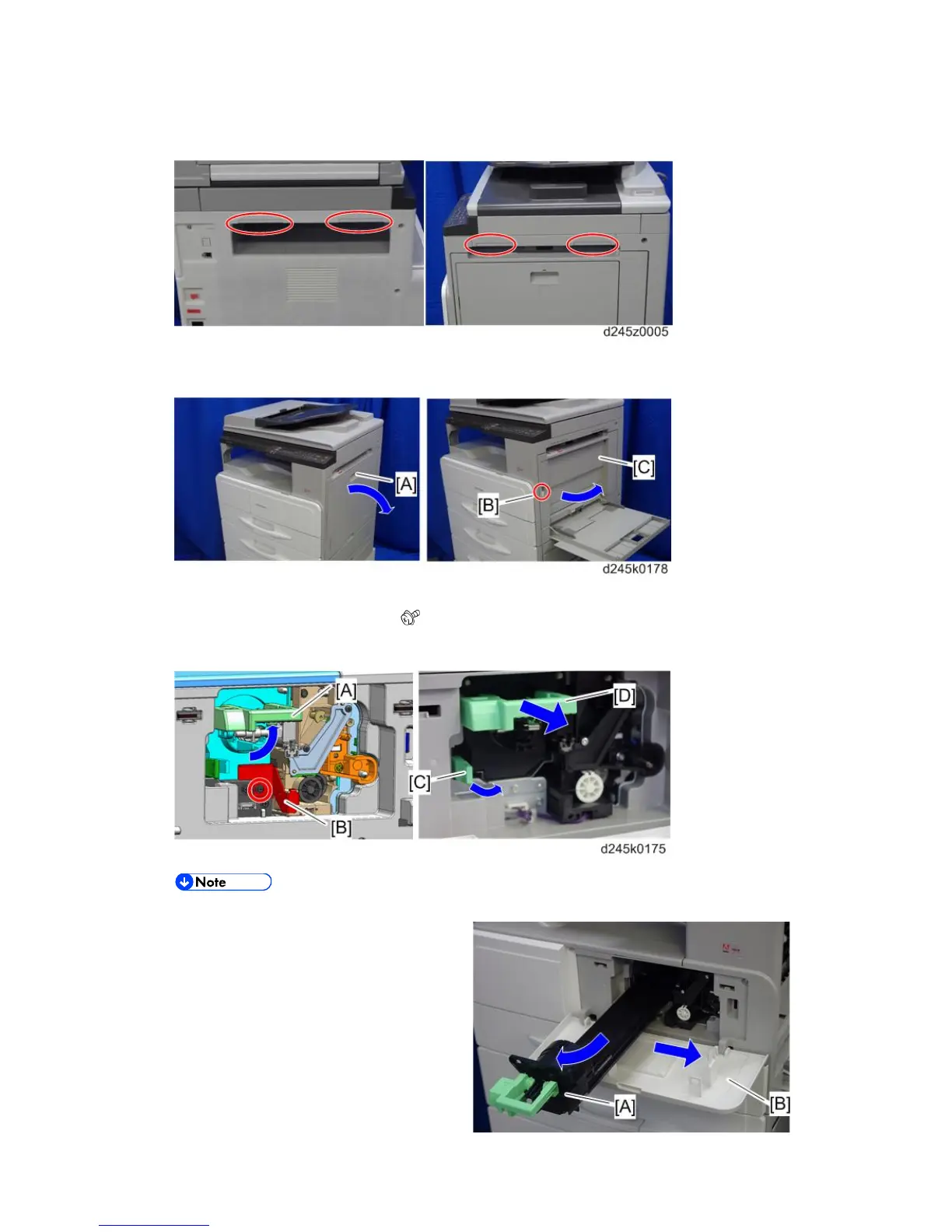

3. Hold the places shown below, and then lift the machine.
Two persons are required to lift the machine.
4. Place the machine on a table or optional paper feed unit.
5. Open the by-pass tray [A], and then press the button [B] to open the right door [C].
6. Open the front door, and then pull the toner bottle holder lever [A] upward.
7. Remove the fixing bracket [B] (
x 1).
8. Release the lock lever [C], and then pull the toner bottle holder [D].
The removed fixing bracket will not be used, so discard it.
9. Remove the toner bottle holder [A] and
the front door [B].
Rev. 01/22/2016
