Electrical Components
SM 4-65 D245/D246/D247
Replacement
and Adjustment

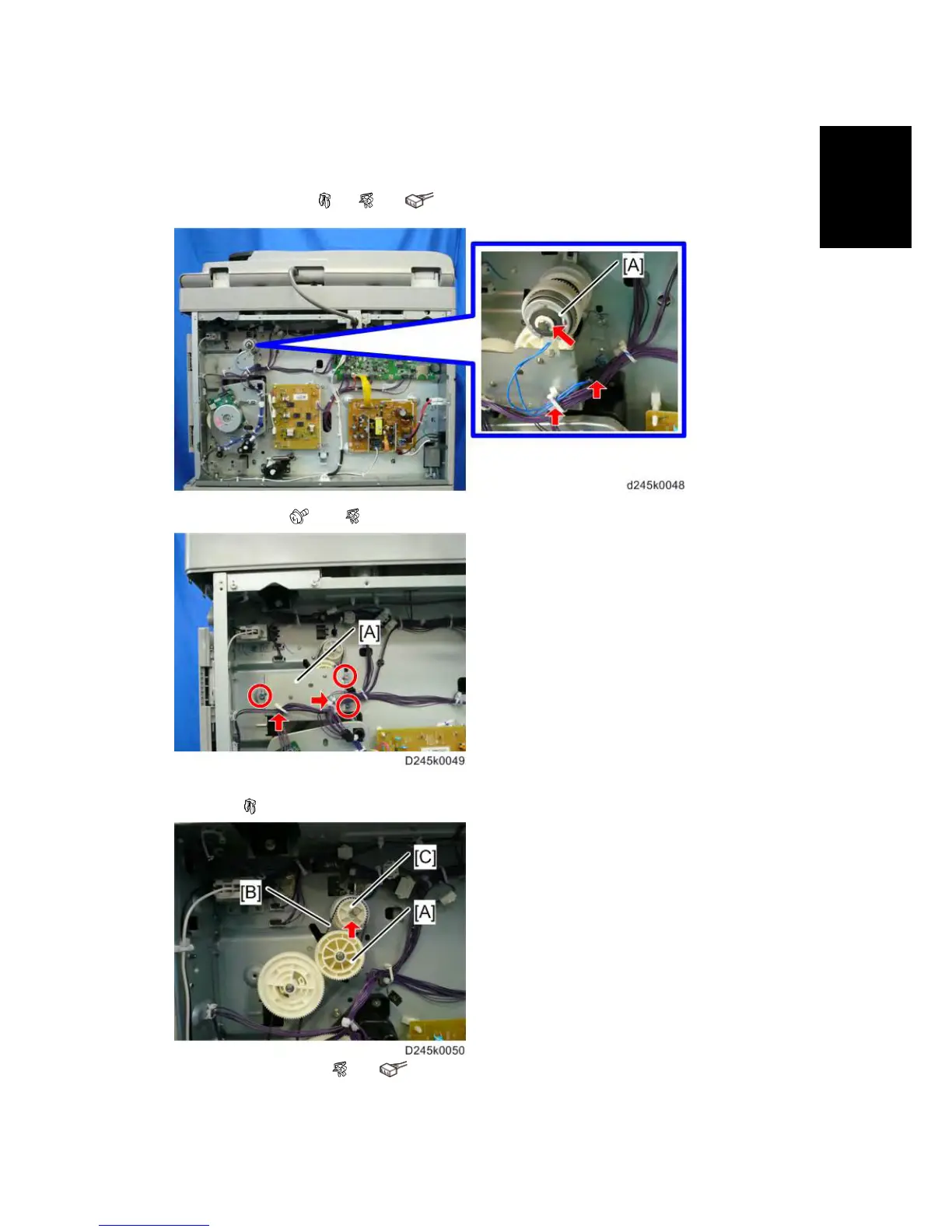

4.14.9 PAPER EXIT CLUTCH AND REVERSE CLUTCH
1. Rear cover (page 4-6)
2. Reverse clutch [A] (
x1, x 1, x 1)
3. Gear cover [A] (
x3, x 2)
4. Gear [A] and timing belt [B]
5. Gear [C] ( x 1)
6. Paper exit clutch [A] (
x 1, x 1)
