Ricoh Pro C7100 Technical Bulletin

Technical Bulletin PAGE: 1/3
Model: Vacuum Feed LCIT RT5100
Date: 31-Oct-16
No.: RD777011
Subject: Rework procedure: Side Fence Cleaning and Oil lubrication
Prepared by: Takuya Hirakawa
From: Field Quality Management Group 4, FQM Dept, QAC
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2
Tier 0.5
SYMPTOM
The side fence cannot slide smoothly.
CAUSE
Paper dust gets on the surface of the slide shaft and inside the bearings.
SOLUTION
Do the PROCEDURE below every 900K pages (PM cycle).
PROCEDURE

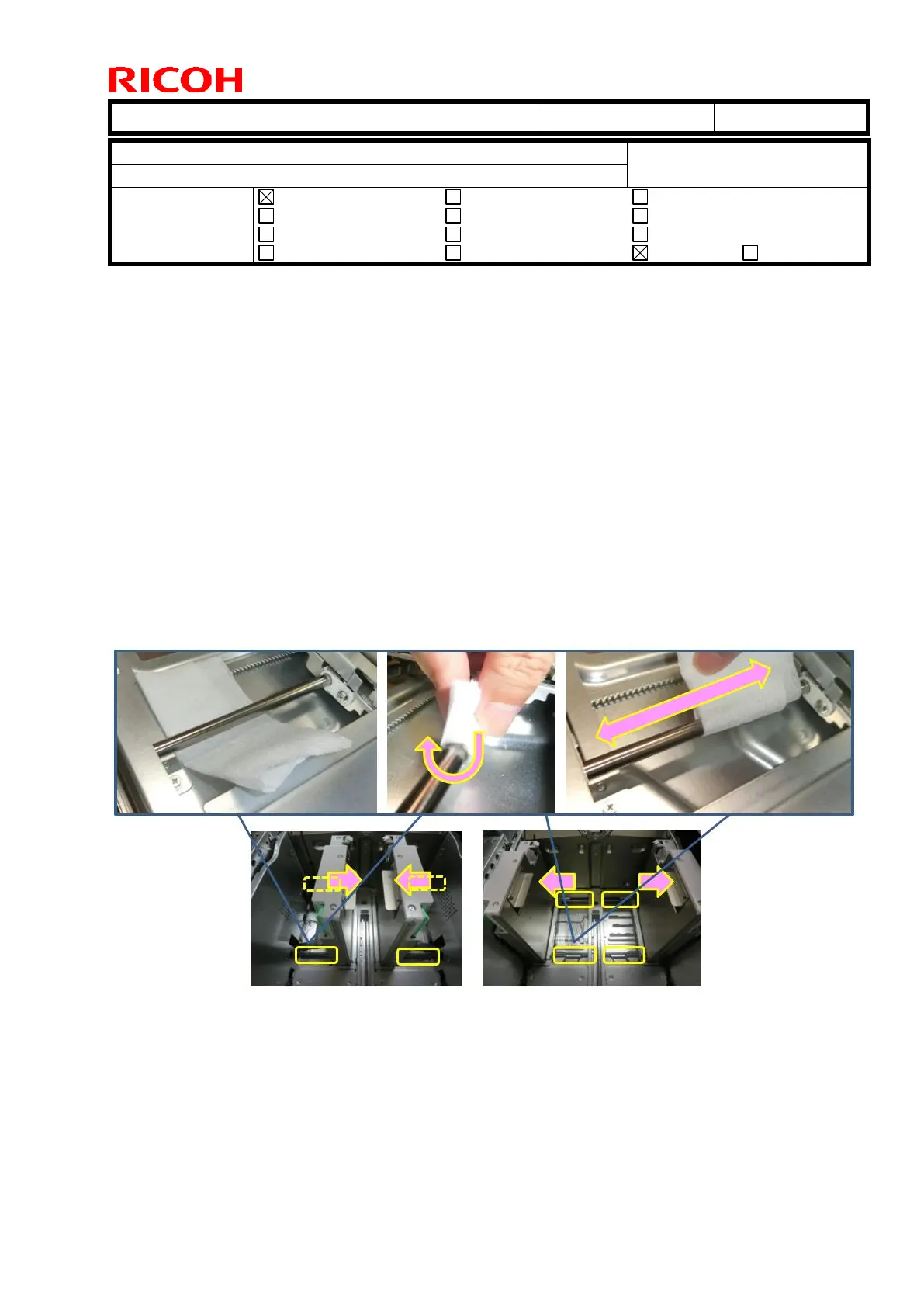

1. Clean the shaft of the side fence with a cloth as shown.
Important: If you cannot clean off all the dust and foreign material with the cloth, use a
vacuum cleaner.
Fig. 1
