Jam

Jam Sensor Layout

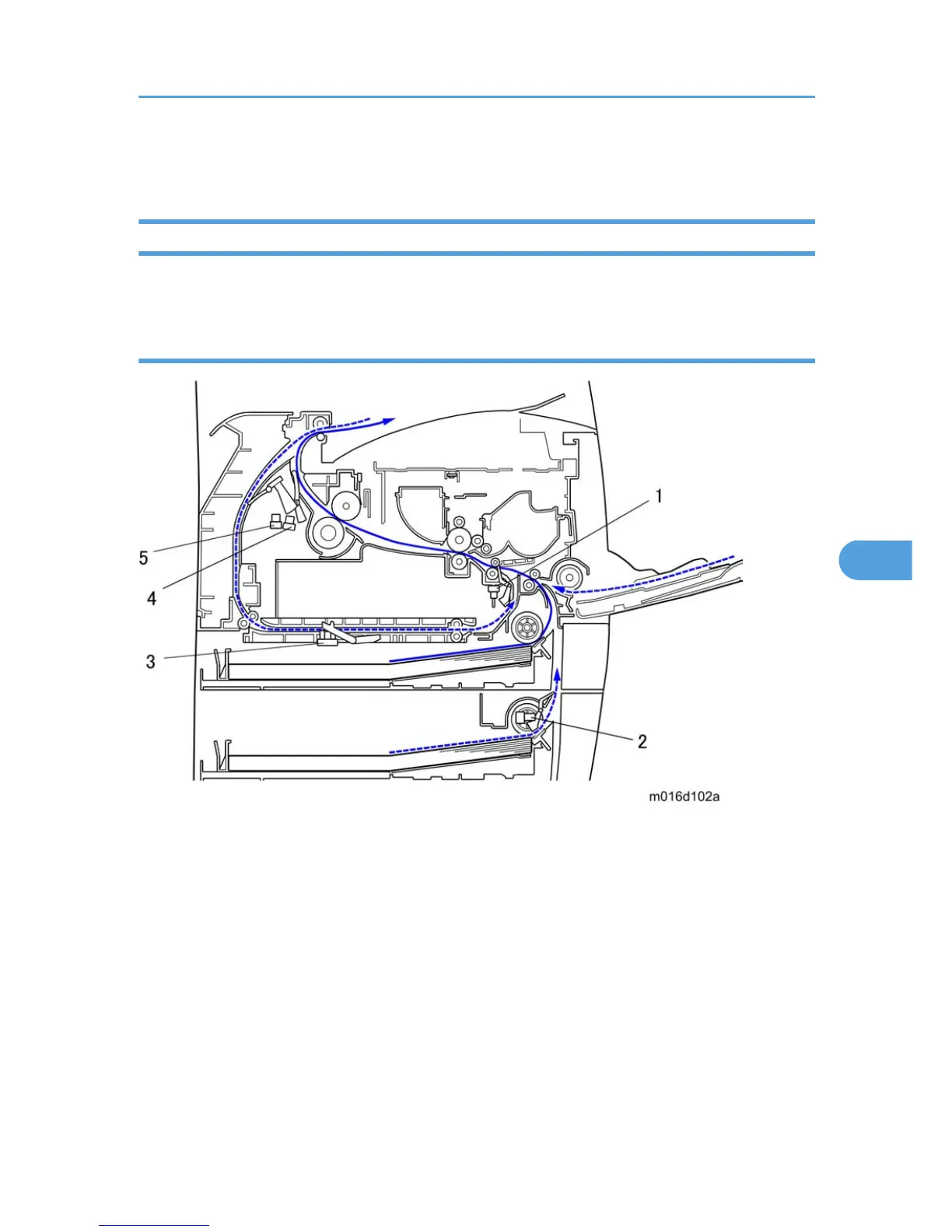

There are the sensors of the jam detection as shown below.

Paper Jam

1. Registration Sensor

2. Tray2 Paper Feed Sensor

Inverter Sensor

4. Paper Exit Sensor

5. Relay Sensor

Jam

127
