6.

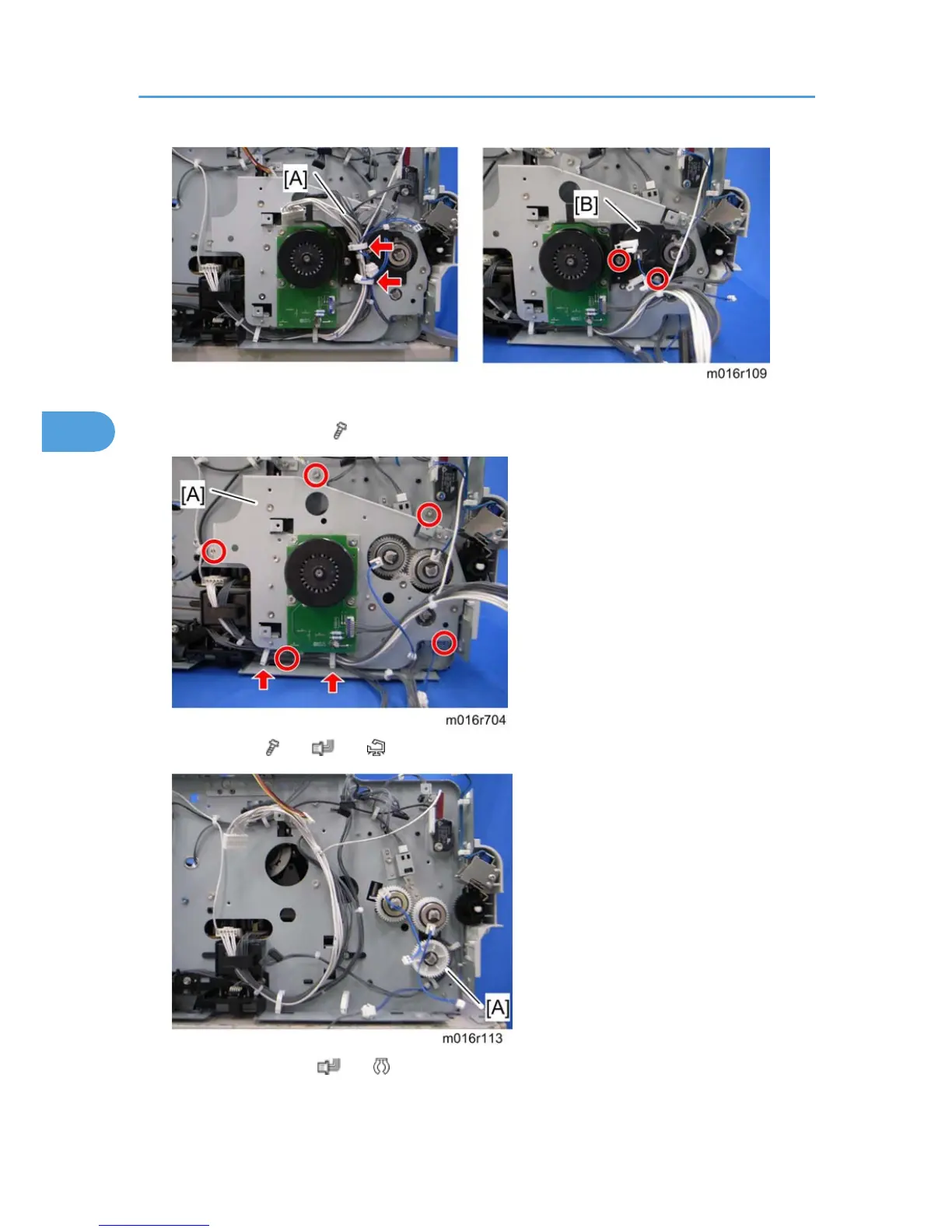

Release all harnesses [A] from the clamps.
7.
Harness guide plate [B] (
x 2)
8.
Drive unit [A] (
x 5,
x 1,
x 2, timing belt)
9.
Paper feed clutch [A] (
x 1,
x 1)
4. Replacement and Adjustment
