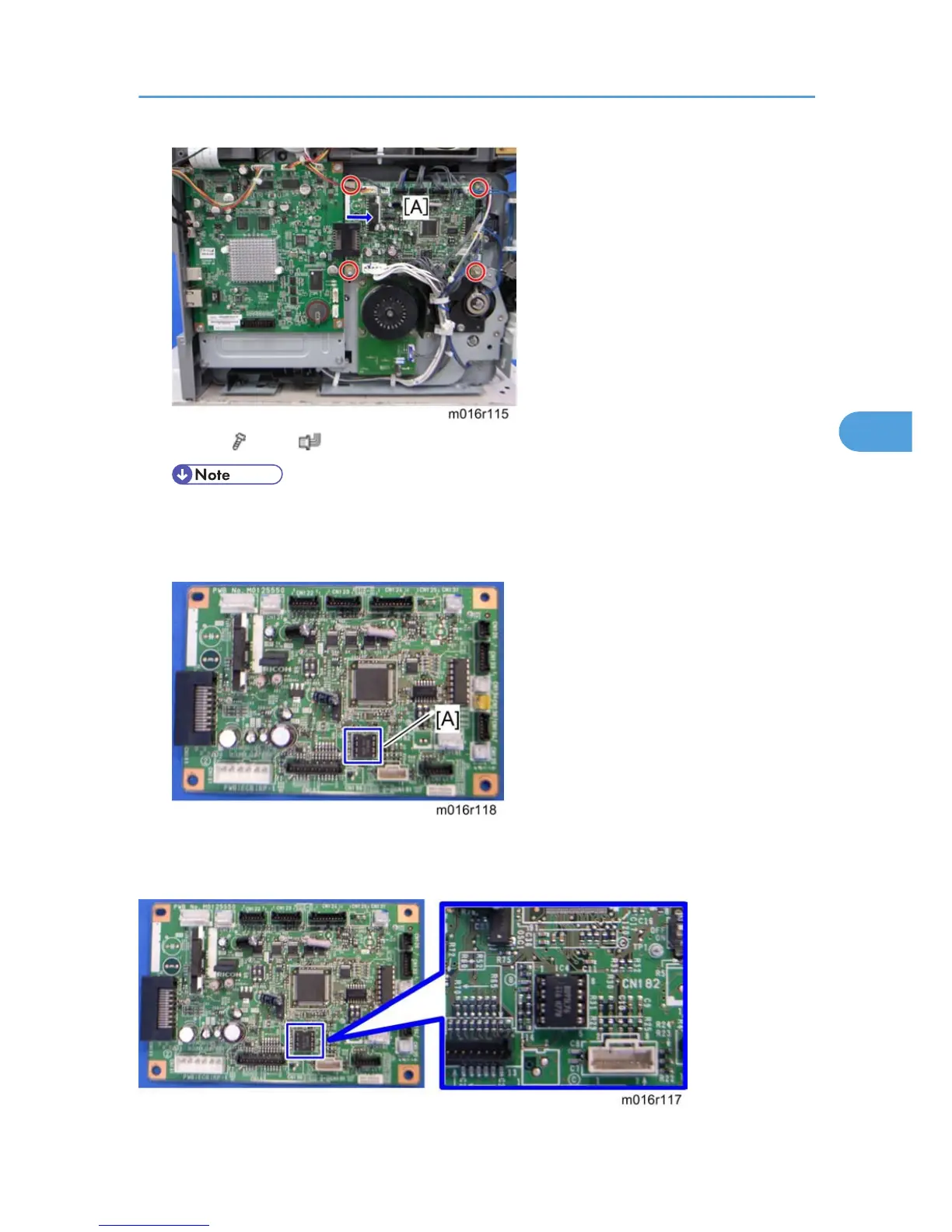

3. ECB [A] ( x 4, all s)
• Do not connect any connectors to CN181 when reinstalling the ECB [A]. CN181 is only used
for factory.
• Do not change the dip switch. The dip switch is only for factory use.
4. EEPROM (Electronically Erasable Programmable Read Only Memory) [A]
When installing the new ECB (Engine Controller Board)
Electrical Components
75
4
