REMOVAL FROM THE PALLET
This chapter describes the operations to remove the product from the pallet and prepare it for installation.

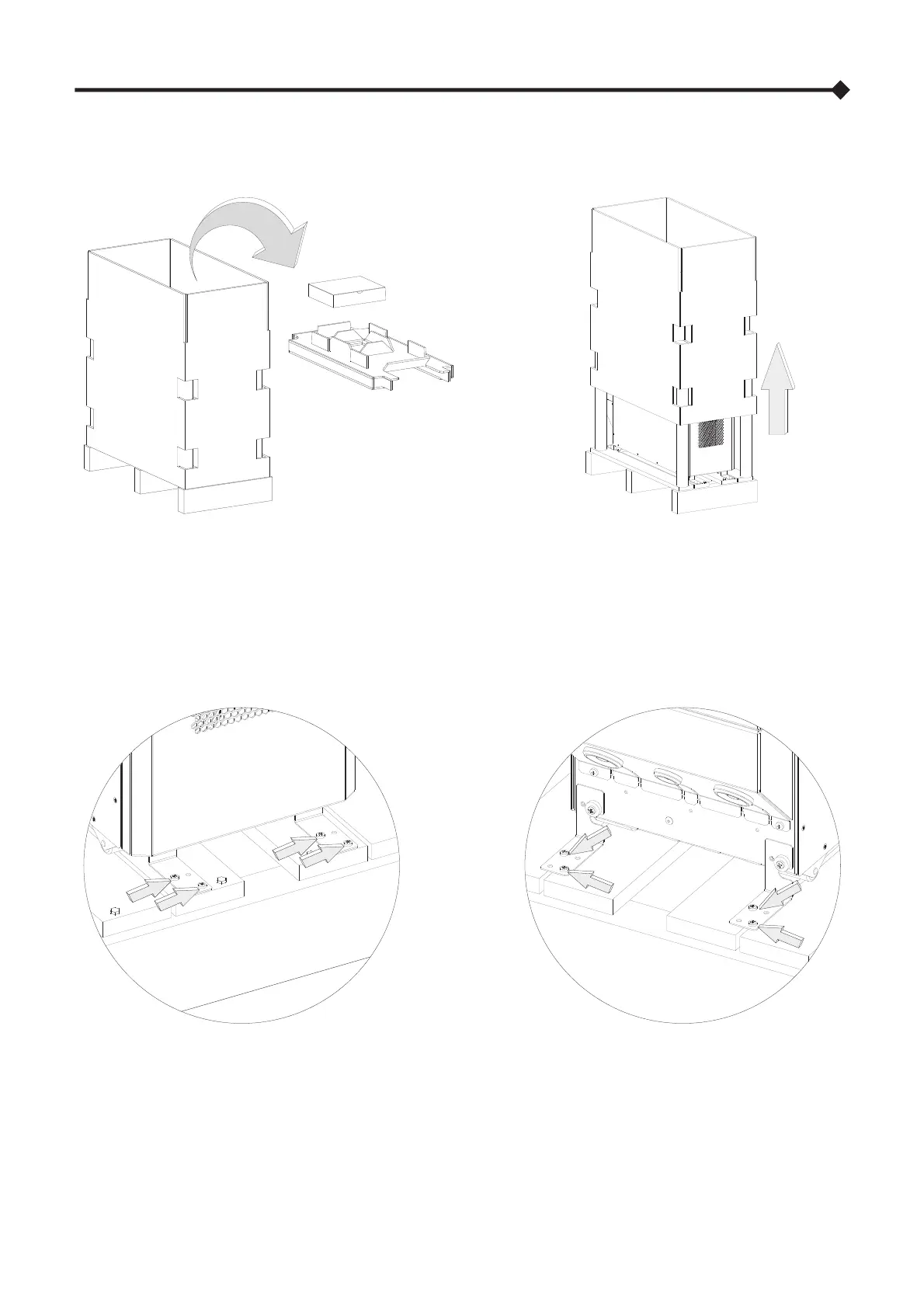

1. Cut the straps and open the cardboard box.
2. Remove the packaging and the accessory box located
above the product.
3. Remove the cardboard box by sliding it
upwards and remove the corner supports.
4. Remove the protective sack.
5. Remove the 4 fixing brackets from the pallet; each bracket is fixed to the pallet by 2 screws.
FRONT VIEW REAR VIEW
