DISPLAY PANEL MESSAGES
This chapter describes, in detail, the various information that can be displayed on the LCD.

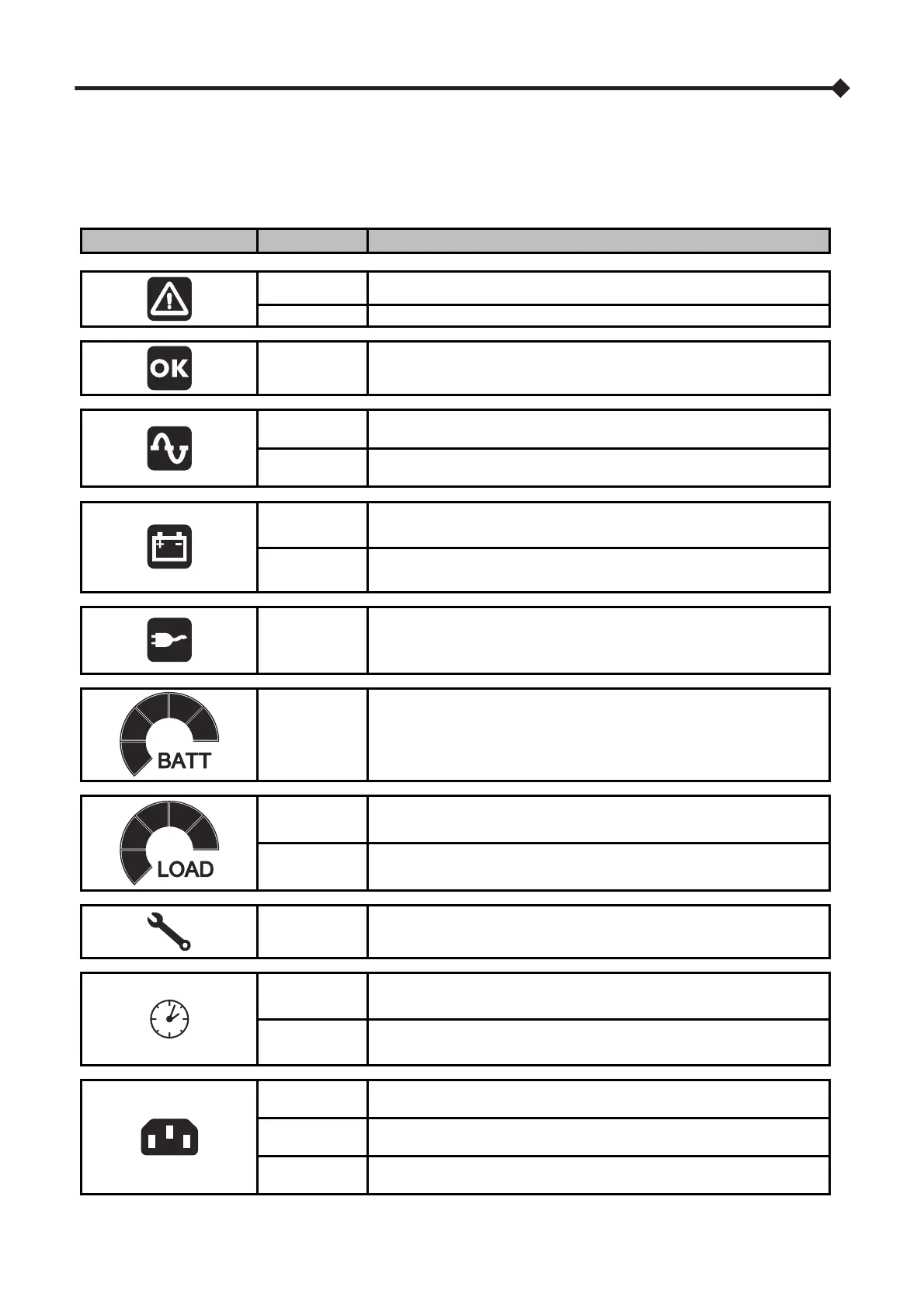

CPS STATUS MESSAGES
ICON STATUS DESCRIPTION
Fixed Indicates a fault
Flashing The CPS is in stand-by mode
Fixed Indicates regular operation
Fixed The CPS is operating from the mains
Flashing
The CPS is operating from the mains, but the output voltage is not
synchronised with the mains voltage
Fixed
The CPS is operating from the battery. In this condition, the CPS emits an
acoustic signal (beep) at regular 4-second intervals.
Flashing
Low battery pre-alarm. Indicates that battery autonomy is coming to an
end. In this condition, the CPS emits a beep at regular 1-second intervals.
Fixed Indicates that the loads connected to the CPS are powered by the bypass
Dynamic Indicates the estimated percentage charge of the batteries
Dynamic
Indicates the percentage of load applied to the CPS compared with the
nominal value.
Flashing Indicates output overload condition.
Flashing Maintenance is required. Contact the support centre.
Fixed
Indicates that the timer is active (programmed switch-on and switch-off).
The timer can be activated/deactivated using the configuration software.
Flashing 1 minute until the CPS switches back on or 3 minutes until it switches off
Off * The EnergyShare sockets are not configured (always connected).
Fixed*
The EnergyShare sockets was configured via configuration software.
At this time the sockets are connected.
Flashing *
The associated event occurred; the EnergyShare outlets have been
disconnected.
* For more information about the configuration of the EnergyShare sockets, see "A
DDITIONAL FUNCTIONS".
