Rigol DS1104Z-S Plus Quick Guide

RIGOL
DS1000Z Quick Guide
5
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to the digital channel input
terminal on the front panel of the oscilloscope in the correct direction.
2. Connect the other terminal of the logic probe to the signal under test. RIGOL
provides DS1000Z Plus with the RPL1116 logic probe option. To realize
convenient and flexible detection of signals, two connection methods for the
signal under test are available. For the details, please refer to the
RPL1116 Logic
Probe User Guide
.

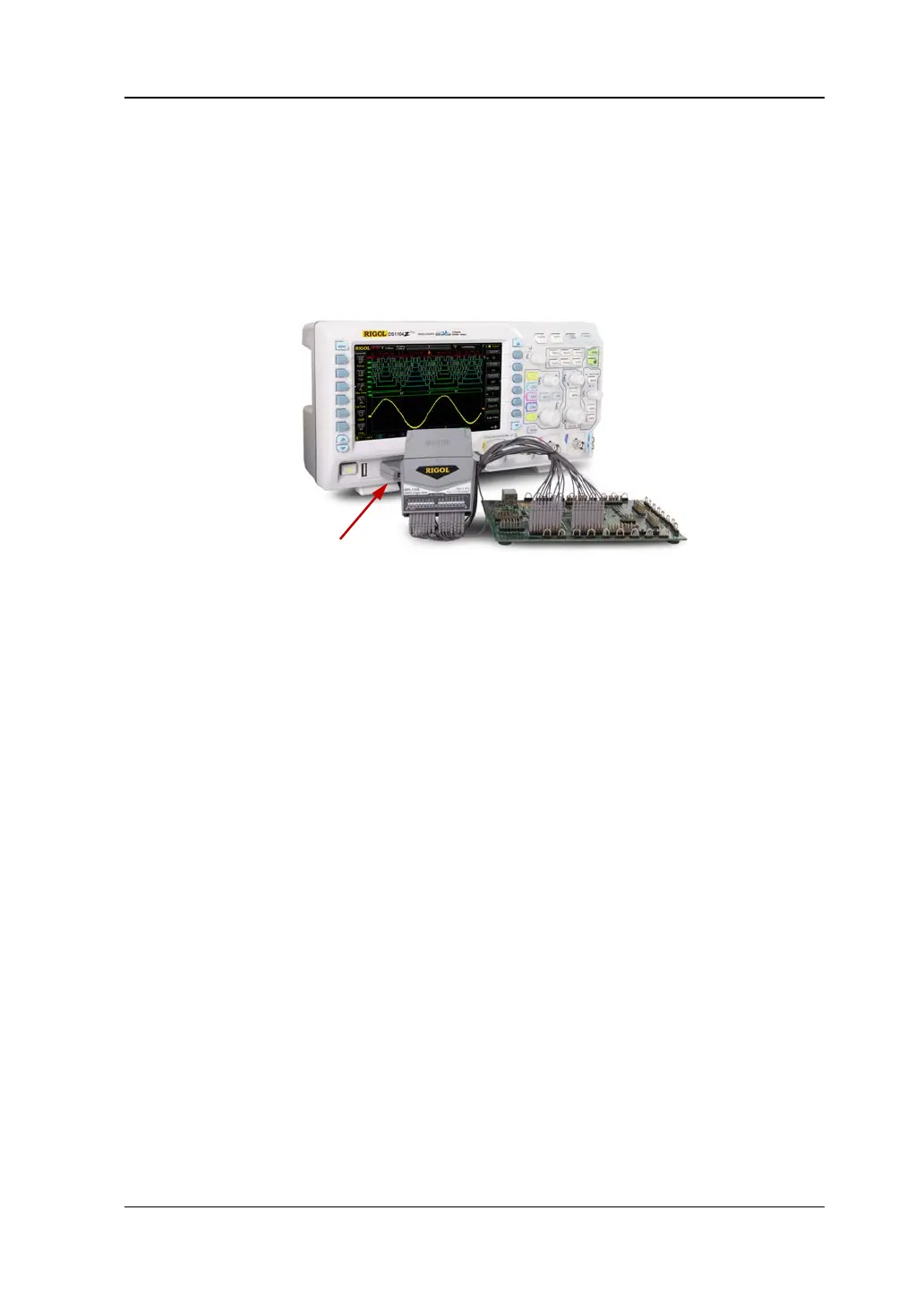

Figure 6 To Connect the Logic Probe
Note: The digital channel input terminal does not support hot plugging. Please do
not insert or pull out the logic probe when the instrument is in power-on state.
Digital Channel Input Terminal

Rigol DS1104Z-S Plus Specifications

General

Bandwidth	100 MHz
Sample Rate	1 GSa/s
Channels	4
Memory Depth	24 Mpts
Vertical Resolution	8 bits
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	2 ns/div to 1000 s/div
Waveform Record	Up to 60, 000 frames
FFT	Yes
Waveform Capture Rate	30, 000 wfms/s
Display	7-inch TFT LCD
Trigger Modes	Edge, Pulse, Video, Window, Timeout
Interfaces	USB, LAN
Serial Bus Triggering and Decoding	I2C, SPI, UART
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
