4 to 16-Ohm Speaker Output
You can connect two speakers to this terminal as long as the nal impedance does not
fall below 4 ohms. Although it is possible to connect more than two speakers to these
terminals, it is not recommended. Please consult a professional if you intend to do so as
incorrect installation could lead to irreparable damage to your amp and speakers.

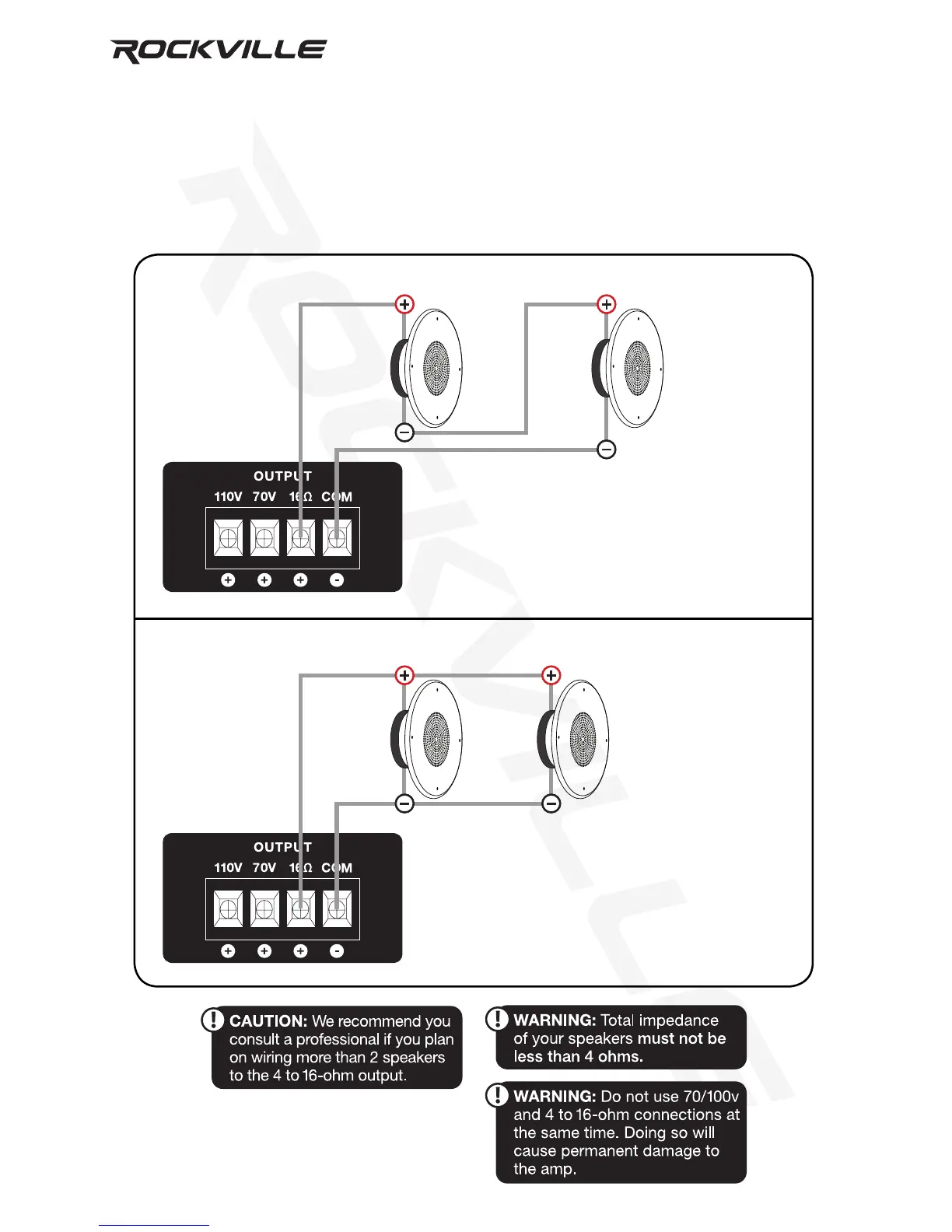

4-Ohm Speaker Connection (wired in series)
8-Ohm Speaker Connection (wired in parallel)
4 ohm
8 ohm
8 ohms at terminal
4 ohms at terminal
4 ohm
8 ohm
