RCS80-1

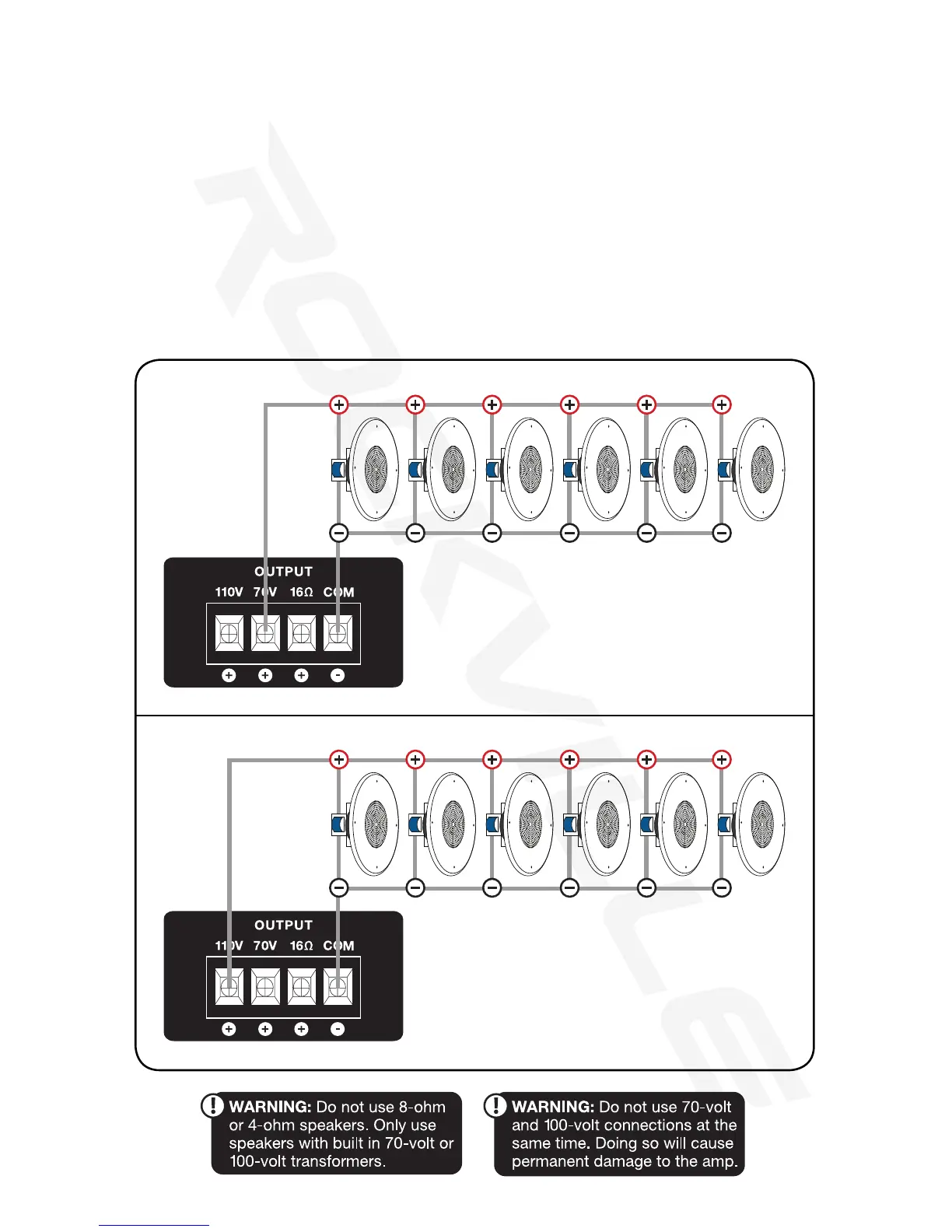

Multi-Speaker 100V Connection
Multi-Speaker 70V Connection
Connections
The RCS80-1’s 70V and 100V connections can be set up in a variety of ways. Please note
that utilizing 70/100-volt connections and 4 to 16-ohm connections simultaneously is not
recommended and will cause damage to the amplier and the speakers.
70V/100V Speaker Output
You may connect any number of speakers to the 70 or 100-<!-- Generator: Adobe Illustra-
