14 Rockwell Automation Publication 5069-UM007A-EN-P - February 2019
Chapter 2 Compact 5000 EtherNet/IP Adapter Power Requirements
Power Connectors
You connect external power supplies to removable terminal blocks (RTBs) to
provide MOD power and SA power. The adapters use different RTBs to
connect power.
The 5069-AENTR adapter uses a 5-terminal Power RTB to connect MOD
power and SA power. Both power types are provided to the system via
one RTB.

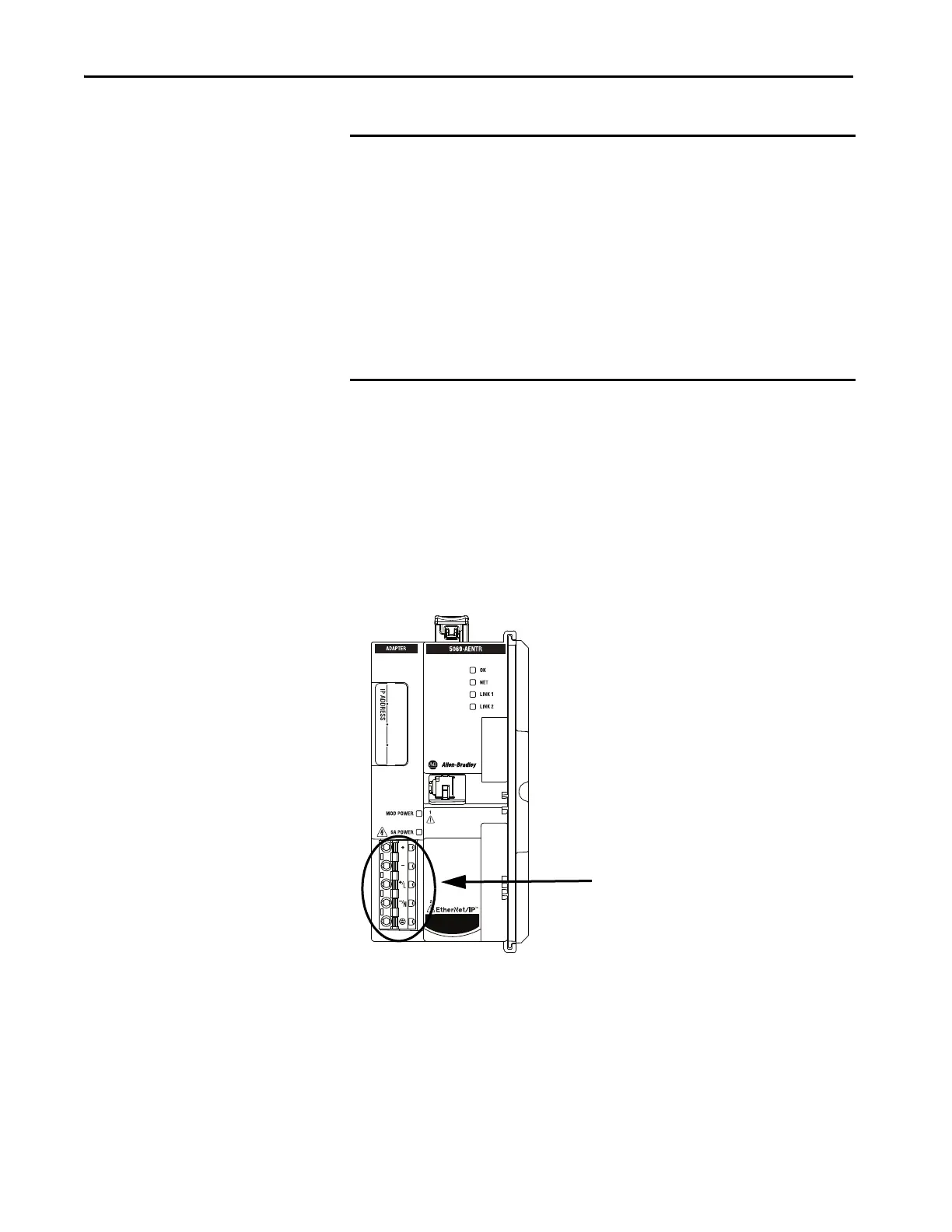

Figure 2 - 5069-AENTR EtherNet/IP Adapter Power Connector
The 5069-AEN2TR adapter uses two RTBs to connect MOD power and SA
power. You connect an external power supply to the MOD power RTB to
provide MOD power. You connect an external power supply to the SA power
RTB to provide SA power.
IMPORTANT For Compact 5000 I/0 EtherNet/IP adapter and I/O modules, we recommend
that you use a separate external power supply for the MOD power and SA
power, respectively.
If you use one external power supply and power is lost from that supply, the
system loses both MOD power and SA power. That is, system-side and field
side power, respectively, is lost.
If you use separate external power supplies, the loss of power from one
external power supply does not affect the availability of power from the
other supply. For example, if separate external power supplies are used and
SA power is lost, MOD power remains available for the Compact 5000 I/0
EtherNet/IP adapter and Compact 5000 I/0 modules.
