Rockwell Automation Allen-Bradley 5069-AENTR User Manual

Rockwell Automation Publication 5069-UM007A-EN-P - February 2019 21
Compact 5000 EtherNet/IP Adapter Power Requirements Chapter 2
Create a New SA Power Bus
Figure 6 show examples when a 5069-FPD field potential distributor to create
a second SA power bus.

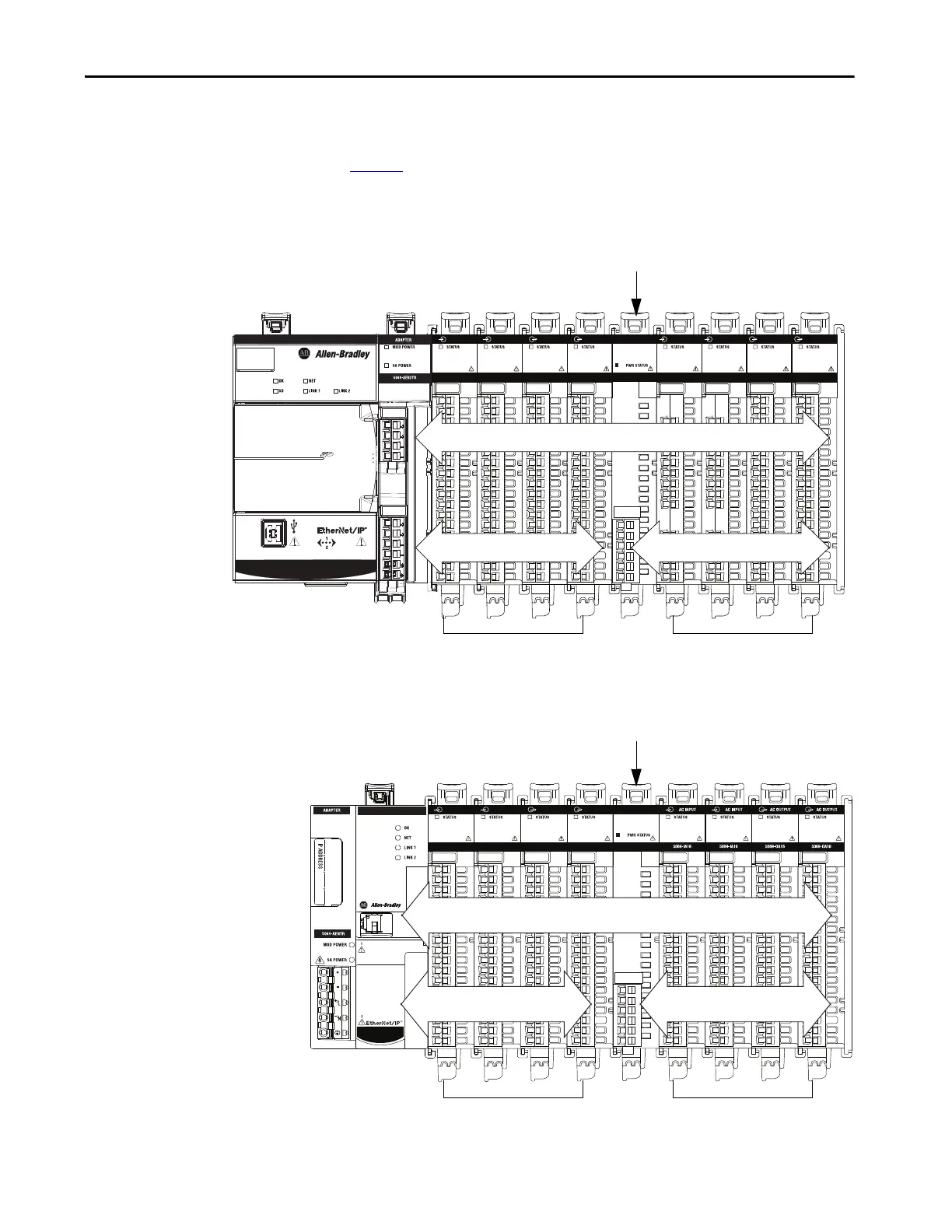

Figure 6 - Compact 5000 I/O EtherNet/IP Adapter and I/O Modules - Create a New SA Power Bus
Compact 5000™ I/O
DC INPUT
5069-IB16
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
DC OUTPUT
5069-OB16
5069-FPD
FIELD POWER
Compact 5000™ I/O
MOD PowerSA Power
DC INPUT
5069-IB16
DC INPUT
5069-IB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
ANALOG OUTPUT
5069-OF8
ANALOG INPUT
5069-IY4
DC OUTPUT
5069-OB16
DC OUTPUT
5069-OB16
5069-FPD
FIELD POWER
Continuous MOD Power Bus Limited to 10 A, max
SA Power Bus Limited to 10 A, max SA Power Bus Limited to 10 A, max
5069-FPD Field Potential Distributor
Digital I/O Modules Analog I/O Modules
Continuous MOD Power Bus Limited to 10 A, max
SA Power Bus Limited to 10 A, max
SA Power Bus Limited to 10 A, max
5069-FPD Field Potential Distributor
DC Type I/O Modules AC Type I/O Modules
In this example, a 5069-FPD
field potential distributor is
used to create an SA power
bus so the digital I/O
modules are separated from
the analog I/O modules.
In this example, a 5069-FPD
field potential distributor is
used to create an SA power
bus so the DC type I/O
modules are separated from
the AC type I/O modules.
