18 Rockwell Automation Publication 5069-UM007A-EN-P - February 2019
Chapter 2 Compact 5000 EtherNet/IP Adapter Power Requirements
Track SA Power Bus Current Draw
We recommend that you track the SA power bus current draw, max, per
module, and collectively for the adapter and I/O modules installed with it.
Consider the following with this example:
• The values in this example represent a worst-case calculation. That is, all
modules that draw SA power bus current, draw the maximum available
on the module.
• Not all modules that are shown in Figure 4
use SA power bus current.
For example, the 5069-ARM and 5069-OW4I modules only pass SA
power bus current to the next module. Some other Compact 5000 I/O
modules do not use SA power bus current, but are not shown in the
graphic, for example, the 5069-OB16 module.
• System SA power bus current, max, is calculated as each module draws
SA power bus current.
In the example in Figure 4
, after the 5069-IB16 module in slot 1 draws
SA power bus current, the system SA power bus current, max, is
138 mA. After the 5069-IB16 module in slot 2 draws SA power bus
current, the system SA power bus current draw is 266 mA.
This process continues until the system SA power bus current, max,
is 1.222 A.

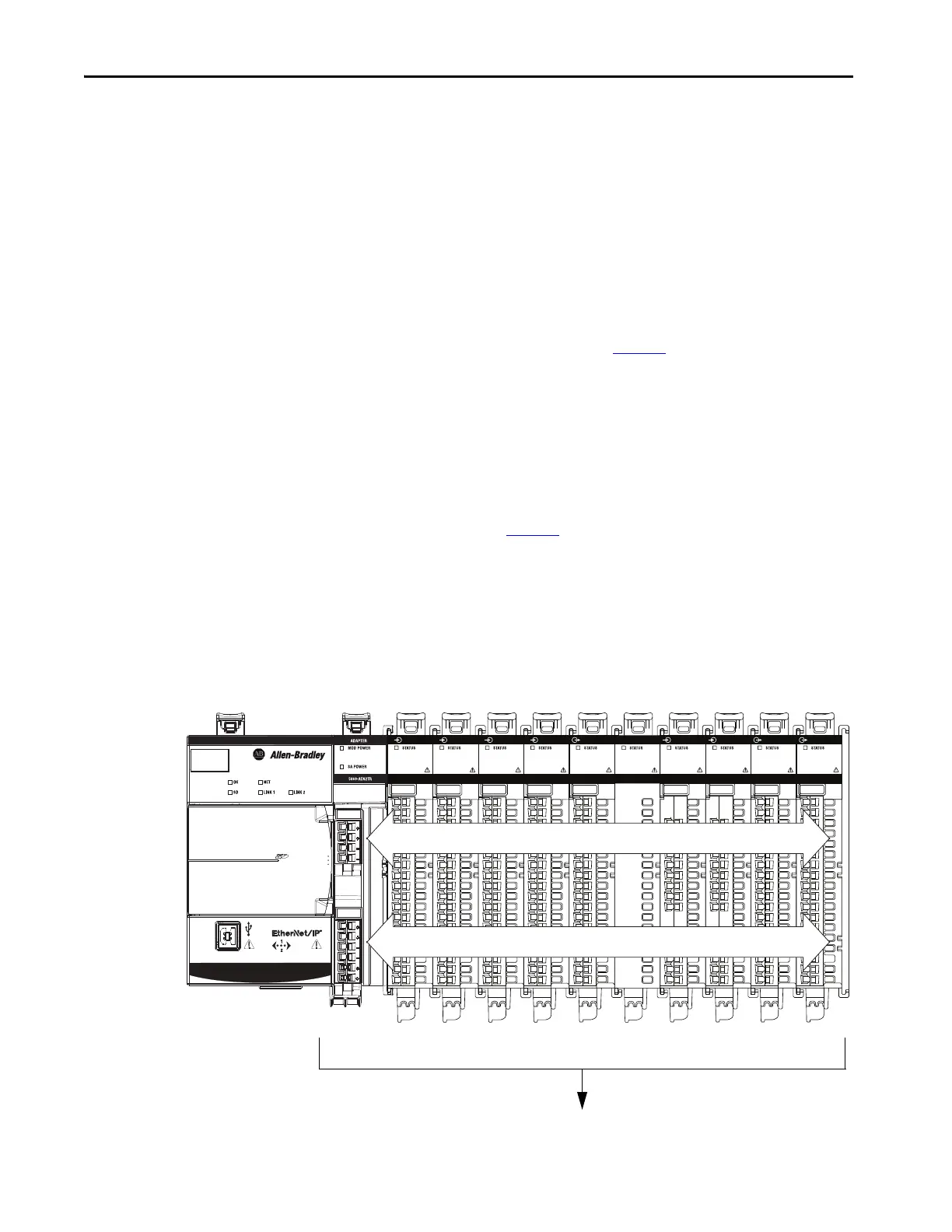

Figure 4 - Compact 5000 I/O EtherNet/IP Adapter and I/O Modules - Calculate SA Power Bus
Current Draw
Compact 5000™ I/O
MOD PowerSA Power
DC INPUT
5069-IB16
DC INPUT
5069-IB16
DC INPUT
5069-IB16F
DC INPUT
5069-IB16F
RELAY OUTPUT
5069-OW4I
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
ADDRESS RESERVE
5069-ARM
ANALOG OUTPUT
5069-OF8
ANALOG INPUT
5069-IY4
Continuous MOD Power Bus Limited to 10 A, max
Continuous SA Power Bus Limited to 10 A, max
SA Power Bus Current, max,
Per Module
10 mA
System SA Power Bus Current, max = 1.222 A
128 mA 128 mA 128 mA 128 mA 0 mA 0 mA 100 mA 100 mA 250 mA 250 mA
To Next Page
