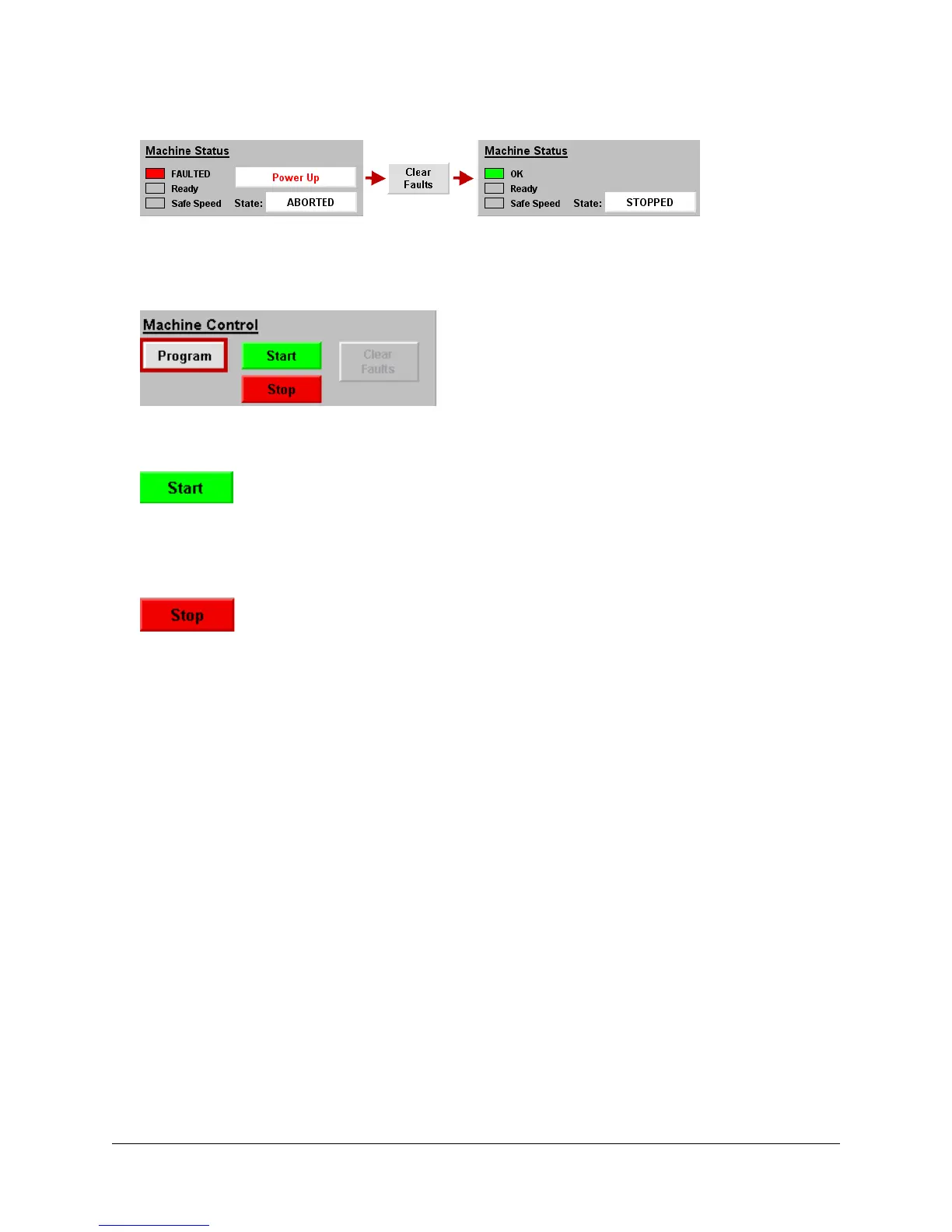

9. If the machine is currently in the ABORTED state, press the “Clear Faults” button.
After a few moments the state machine should transition to the STOPPED state.
10. Press the “Program/Operator” button until “Program” is displayed. Program mode (AUTO) is now the
active control mode.
11. Press the “Start” button. The system begins operating according to the Studio 5000 Logix Designer
program.
The same logic from the previous section will be executed.
12. Let the system run for about one minute to see the full cycle of the ladder logic. Once satisfied, press the
“Stop” button.
You can verify that the drive has the correct parameter now loaded for “P033 – Motor OL Current” through the HIM or the
Add-On Profile using techniques you learned earlier this lab.
Reset the System
To disable Automatic Device Configuration, you can either reverse the steps of the previous section, or more easily, download a
new program to the controller that does not have ADC enabled.
1. Close the PowerFlex_Lab_ADC project file. You don’t need to save changes.
2. Open the PowerFlex_Lab project file from the previous lab exercise.
3. Download the PowerFlex_Lab project to the controller, and put it back into “Remote Run” mode when
prompted.
This concludes the lab exercises. Additional information about the Drives and Motion Accelerator Toolkit has been included
for your reading as the next appendix if you are interested in it.
