Roland FA-06 Service Notes

11
Feb. 2014 FA-06

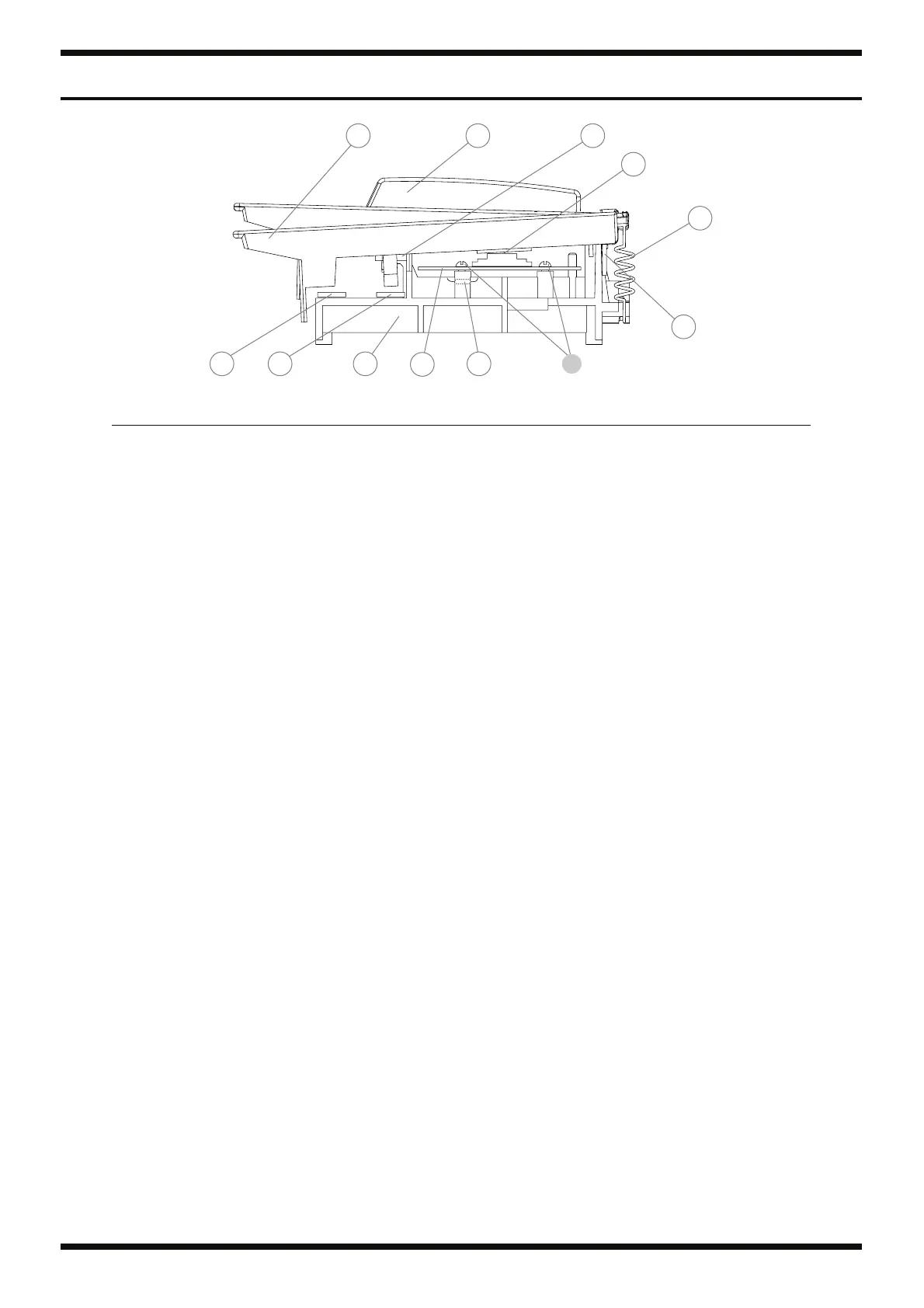

Keyboard Parts List (MSK-2)
fig.key.eps
* The cables (#5100036240) aren’t included in this unit (#04344189).
10
2
6
7
11 8
4
5
1
3
9
a
No. Part Code Part Name Description Q’ty
04344189 KEYBOARD ASSY MSK-261KEY (W/O CABLE)
1 03786378 NATURAL KEY C FOR MSK-2 5
03786389 NATURAL KEY D FOR MSK-2 5
03786390 NATURAL KEY E FOR MSK-2 5
03786401 NATURAL KEY F FOR MSK-2 5
03786412 NATURAL KEY G FOR MSK-2 5
03786423 NATURAL KEY A FOR MSK-2 5
03786434 NATURAL KEY B FOR MSK-2 5
03786445 NATURAL KEY C’ FOR MSK-2 1
2 03786456 SHARP KEY FOR MSK-2 25
3 03786312 KEY FELT MSK-2 HOOK T2.0MM L828XW5.5 1
4 03456967 COILED SPRING MSK-1 NATURAL KEY 36
03456978 COILED SPRING MSK-1 SHARP KEY 25
5 03786301 KEY FELT MSK-2 BACK T4.0MM L840XW6.0 1
6 04230834 RUBBER SWITCH 12P FOR MSK-1/MSK-2 4
04230845 RUBBER SWITCH 13P FOR MSK-1/MSK-2 1
7 03786345 PWB KEYBOARD LO ASSY FOR MSK-2 1
03786356 PWB KEYBOARD HI ASSY FOR MSK-2 1
8 ******** CHASSIS KEYBOARD FOR MSK-2 1
9 03786334 KEY FELT MSK-2 BOTTOM M T2.0MM L840XW10 1
10 03786323 KEY FELT MSK-2 BOTTOM L T2.0MM L840XW15 1
11 15019126 SWITCHING DIODE 1SS133 T-77 122
a 40011189 SCREW 3X8 PAN TAPTITE-P FE ZC 34

Roland FA-06 Specifications

General

Control type	Buttons
Backlight color	Red
Backlight buttons	Yes
MIDI-keyboard number of keys	61 keys
Display type	LCD
Display diagonal	5 \
Product color	Black
Sound effects	Acoustic resonance, Synthesizer
Interface	USB
Headphone outputs	1
USB ports quantity	2
Compatible memory cards	SDHC
6.35 mm (1⁄4-inch) output	3
Power source type	AC
Bit rate	16 bit
Product type	Digital synthesizer
Keyboard number of keys	61
Maximum polyphony (notes)	128
Reverberation effects quantity	6

Weight and Dimensions

Depth	300 mm
Width	1008 mm
Height	101 mm
Weight	5700 g
