Roland FA-06 Service Notes

4
Feb. 2014 FA-06

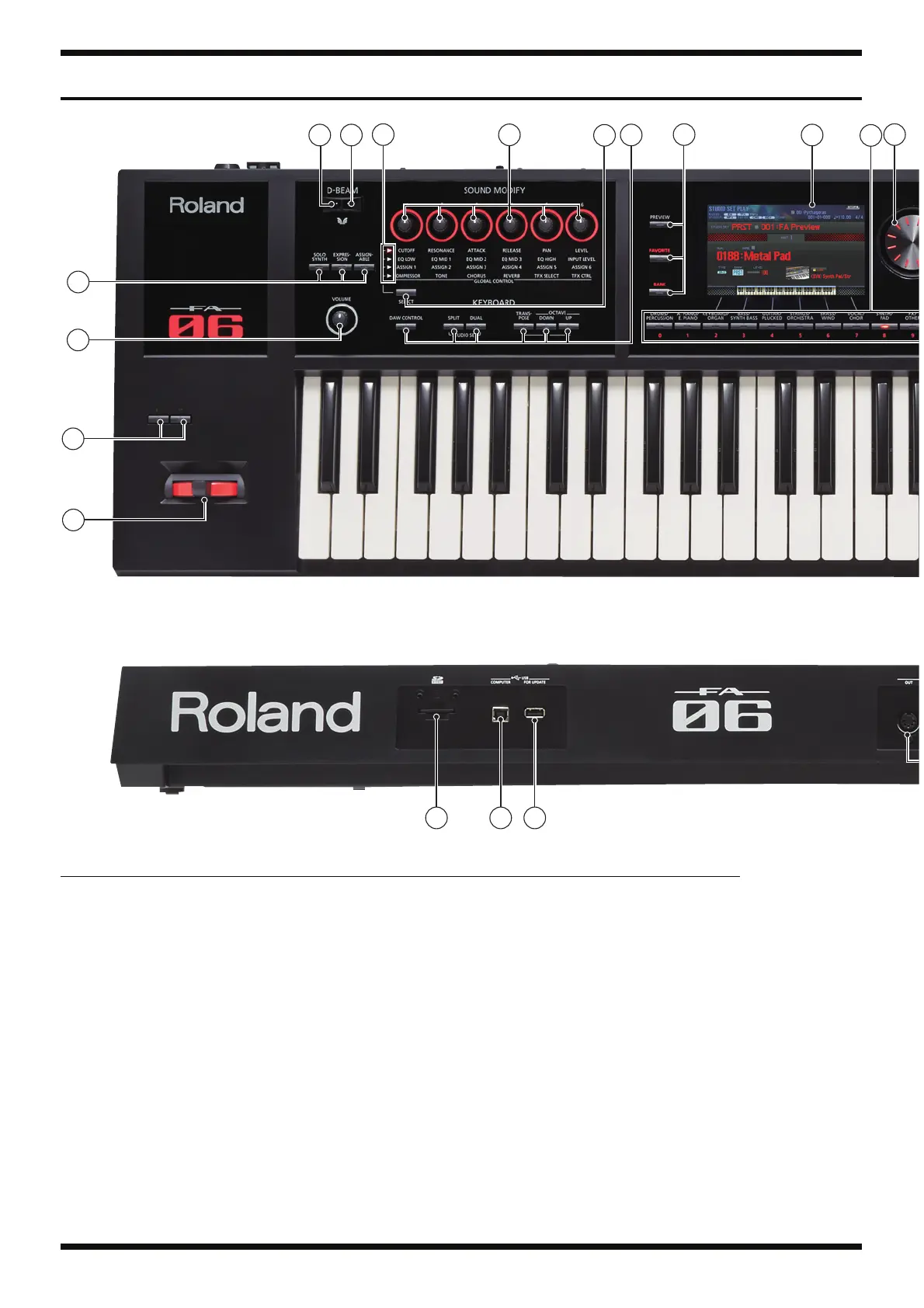

Location of Controls (Front, Rear)
fig.panel-FA06.eps@L
30 29 28
3
1
9
9
4
2
5
9
7
11
18
6
10
9
No. Part Code Part Name Description Q’ty
1 00453223 LED SPACER LDS-70G 1
5100029775 LED (INFRARED) L-7113F3C(F) 1
2 00453223 LED SPACER LDS-70G 1
5100030358 DIODE PT334-6B 1
3 5100035567 BENDER PB-H0302-RD 1
4 5100035158 ZS R-KNOB SF BLK/LCG 1
5100004183 POTENTIOMETER(231-08052-02-00 RK12L12C0A04 50KBX2 25MM 1
5 5100035158 ZS R-KNOB SF BLK/LCG 7
5100007846 ROTARY POT(231-09034-01-00) XV09213YNPV25F1B10K/D 7
6 5100035159 ZE R-KNOB LF BLK/RED 1
03122134 ROTARY ENCODER EC12E2420802 1
7 5100036236 LED L-7104SRD-F 4
8 5100020884 LED A-303SR-A Q/W 1
9 5100035241 ZS S-KEYTOP SD1H BLK 23
02781634 TACT SWITCH SKRGAED010 23
5100008349 LED L-132XIT 23
10 5100035722 ZS S-KEYTOP SX1H BLK 12
02781634 TACT SWITCH SKRGAED010 12
11 5100035242 ZS S-KEYTOP LD1H BLK 11
02781634 TACT SWITCH SKRGAED010 11
5100008349 LED L-132XIT 11
12 5100035242 ZS S-KEYTOP LD1H BLK 1
02781634 TACT SWITCH SKRGAED010 1
00127367 LED (RED/GREEN) SPR-39MVW 1

Roland FA-06 Specifications

General

Control type	Buttons
Backlight color	Red
Backlight buttons	Yes
MIDI-keyboard number of keys	61 keys
Display type	LCD
Display diagonal	5 \
Product color	Black
Sound effects	Acoustic resonance, Synthesizer
Interface	USB
Headphone outputs	1
USB ports quantity	2
Compatible memory cards	SDHC
6.35 mm (1⁄4-inch) output	3
Power source type	AC
Bit rate	16 bit
Product type	Digital synthesizer
Keyboard number of keys	61
Maximum polyphony (notes)	128
Reverberation effects quantity	6

Weight and Dimensions

Depth	300 mm
Width	1008 mm
Height	101 mm
Weight	5700 g
