Roland FA-06 Service Notes

8
Feb. 2014 FA-06

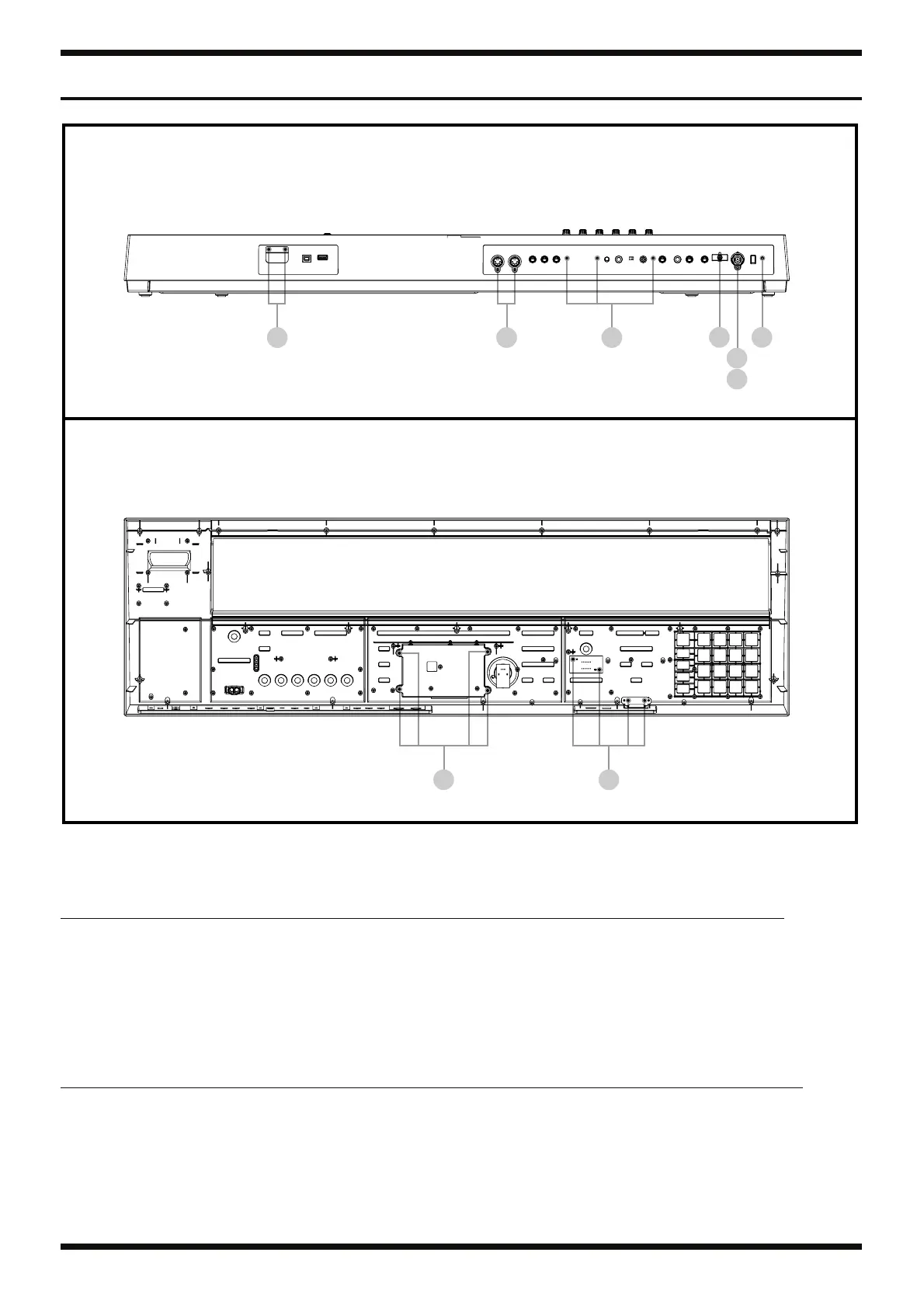

Plane View (1)
fig.bunkaizu-view-12.eps
View 1
View 2
gg
f
d
d
e
cba
View 1
View 2
No. Part Code Part Name Description Q’ty
a 40011501 SCREW M3X8 PAN MACHINE W/SW BZC 2
b 40011334 SCREW 3X12 BINDING TAPTITE-P FE BZC 2
c 40237101 SCREW M3X8 PAN MACHINE W/SW+SMALL PW BZC 3
d 5100034002 SCREW M3X12 PAN MACHINE W/SMW+PW BZC 2
e 5100011004 NUT HEX 529-08028-01-00 1
f 40454856 SCREW M4X10 BINDING MACHINE NI 1
No. Part Code Part Name Description Q’ty
g 40011312 SCREW 3X8 BINDING TAPTITE P FE BZC 8

Roland FA-06 Specifications

General

Control type	Buttons
Backlight color	Red
Backlight buttons	Yes
MIDI-keyboard number of keys	61 keys
Display type	LCD
Display diagonal	5 \
Product color	Black
Sound effects	Acoustic resonance, Synthesizer
Interface	USB
Headphone outputs	1
USB ports quantity	2
Compatible memory cards	SDHC
6.35 mm (1⁄4-inch) output	3
Power source type	AC
Bit rate	16 bit
Product type	Digital synthesizer
Keyboard number of keys	61
Maximum polyphony (notes)	128
Reverberation effects quantity	6

Weight and Dimensions

Depth	300 mm
Width	1008 mm
Height	101 mm
Weight	5700 g
