Main Specications
Roland FR-4x: V-Accordion
Roland FR-4xb: V-Accordion
Keyboards
Piano-type
Right-hand keyboards: 37 keys (with velocity)
Left-hand button keyboards: 120 buttons (with velocity)
Button-type
Right-hand button keyboards: 92 buttons (with velocity)
Left-hand button keyboards: 120 buttons (with velocity)
Power
Supply
AC adaptor
Batteries (ten AA rechargeable nickel-metal hydride
batteries)
Current
Draw
2000 mA
Dimensions
Piano-type:
481 (W) x 270 (D) x 430 (H) mm
18-15/16 (W) x 10-11/16 (D) x 16-15/16 (H) inches
Button-type:
470 (W) x 240 (D) x 390 (H) mm
18-9/16 (W) x 9-1/2 (D) x15-3/8 (H) inches
Weight
(excluding
strap, AC
adaptor and
batteries)
Piano-type: 8.9 kg/19 lbs 10 oz
Button-type: 8.6 kg/19 lbs
Accessories
Owner’s Manual, AC adaptor, Power cord, Reference caps
for left-hand button keyboard, Reference caps for right-
hand button keyboard (FR-4xb only), Accordion cover,
Strap, attachment strip
Options
USB ash drive, Soft case for accordion, Headphones, MIDI
foot controller (FC-300)
* This document explains the specications of the product at the
time that the document was issued. For the latest information,
refer to the Roland website.
29
USB COMPUTER (
O
) port
This port can be connected to one of your computer’s USB ports.
Please use a commercially available USB cable.
In order to use the FR-4x with your computer, you’ll need to
download the driver from the following URL and install it.
For details on installation, refer to the following URL.
&
http://www.roland.com/support/
30
INPUT jack
Devices such as an audio player can be connected to this jack via a
stereo mini-plug.
* To adjust the volume, use the controls of the connected
device (e.g., audio player).
31
OUTPUT L/MONO (TREBLE) jack
32
OUTPUT R/MONO (BASS) jack
These jacks can be connected to an amplifier, a mixing console or
a wireless system. If you use both connectors, the FR-4x’s output
is stereo. In that case the signals of the right-hand keyboard
section are transmitted to the L/MONO jack, while the R/MONO
jack transmits the bass (and chord) signal. If you only use one jack
(connected to the “L” or “R” jack), the FR-4x’s output is mono.
MEMO
5 On the FR-4x, connecting to these jacks does not mute the
internal speakers.
5 By holding down the [SHIFT] button and pressing the [5/12]
button you can turn the speakers on/o (p. 17). Switching o
the FR-4x’s speakers allows you to save battery power.
33
PHONES jack
This is where you can connect stereo headphones.
Connecting a pair of headphones mutes the internal speakers.
MEMO
You can change a setting so that the internal speakers produce
sound even when headphones are connected (p. 17).

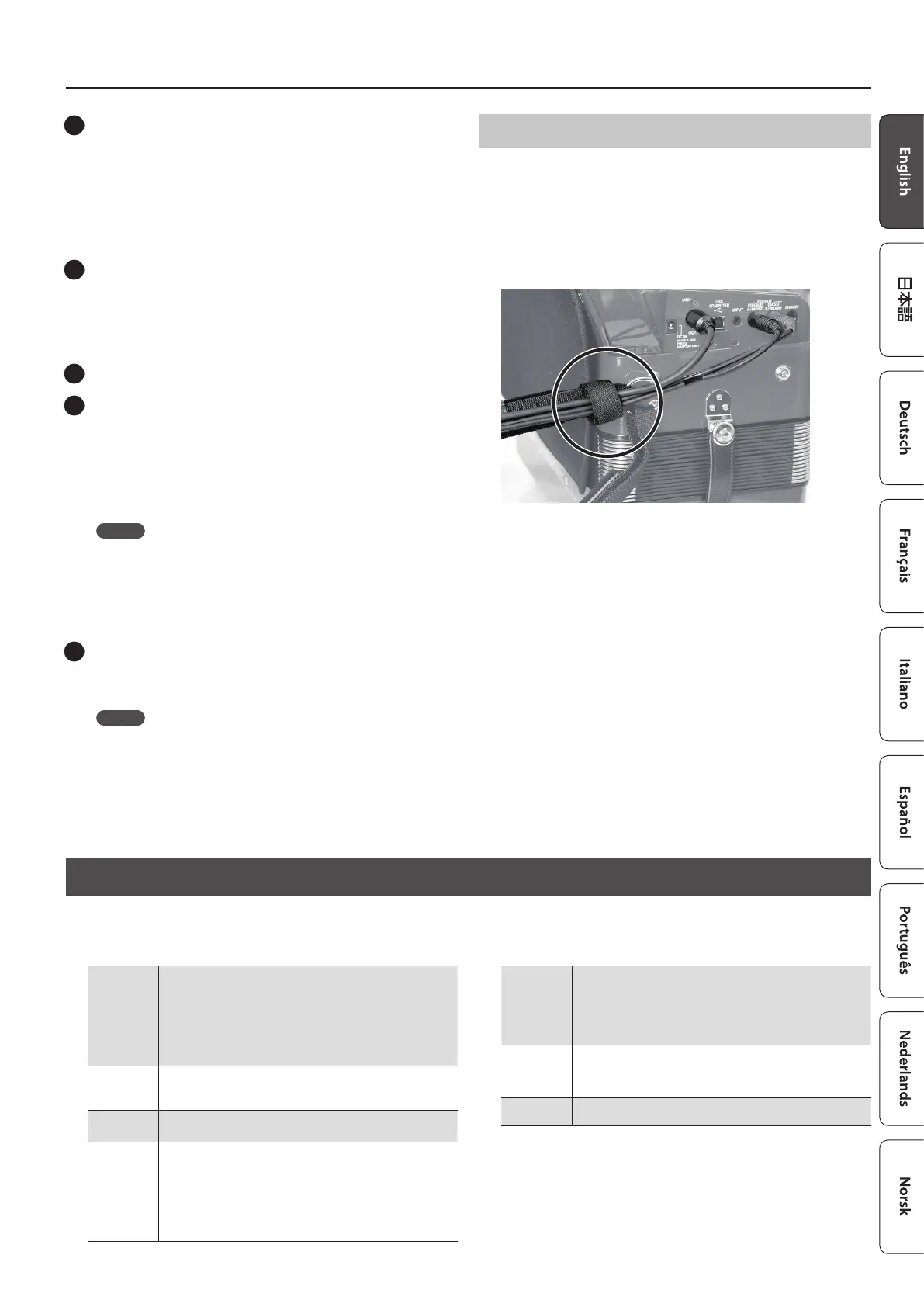

Securing the Cable
Proceed as follows to ensure that a MIDI cable–or an audio cable–
doesn’t come loose while you are playing.
Your FR-4x comes with an attachment strip that allows you to
secure optional MIDI as well as audio cables to the right strap.
1.
Wind the attachment strip around the cable and the
strap.
To Next Page
