Installing the Wave Expansion Board
Appendices
Checking that a wave
expansion board is installed
correctly
1.
Turn on the power as described in “Turning On/Off the Power”
(p. 16).
2.
Press [MENU].
3.
Use [CURSOR] to select [System].
4.
Press [ENTER] to access the System Menu screen.

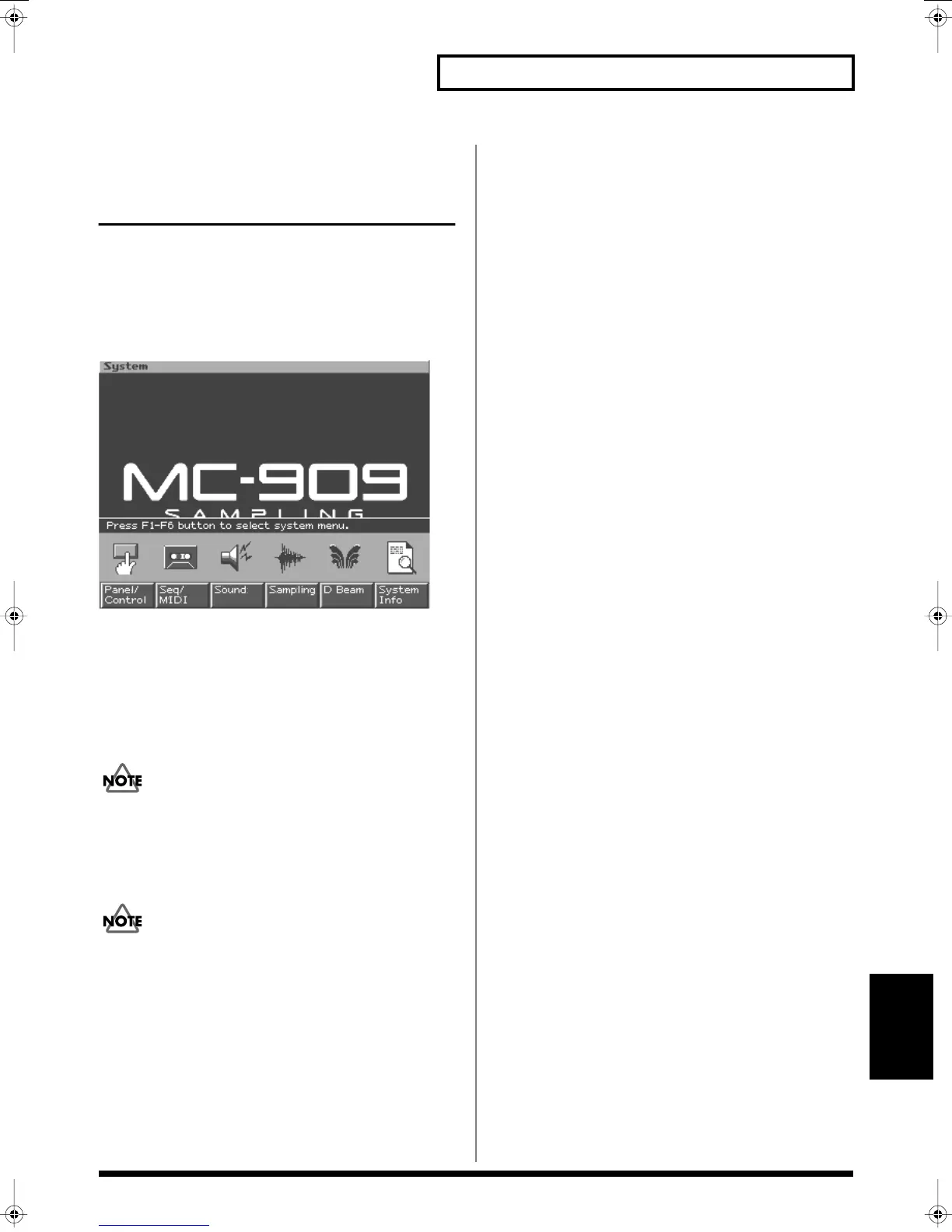

fig.6-02
5.
Press [F6 (System Info)].
6.
Press [F3 (SRX Exp Info)].
Verify that the screen shows the model number of the
wave expansion board you installed.
7.
Press [F6 (Close)] to return to the System Menu screen.
8.
Press [EXIT] to exit the System Menu screen.
If the model number of the board does not appear, it is
possible that the wave expansion board is not being
recognized properly. Turn off the power as described in
“Turning On/Off the Power” (p. 16), and re-install the wave
expansion board correctly.
• If SRX-01 “Dynamic Drum Kits” or SRX-02 “Concert Piano” is
installed, only the waves can be used. The patches/rhythm sets
cannot be used.
• When using the rhythm sets included on an expansion board,
the rhythm tones for the sixteen keys from note numbers 35 (B1)
through 50 (D3) will correspond to velocity pad 1 (59: B3)
through pad 16 (74: D5).
• For some of the patches/rhythm sets included on an expansion
board, pitch-related settings and FXM-related settings (p. 57, p.
71) will be ignored.
