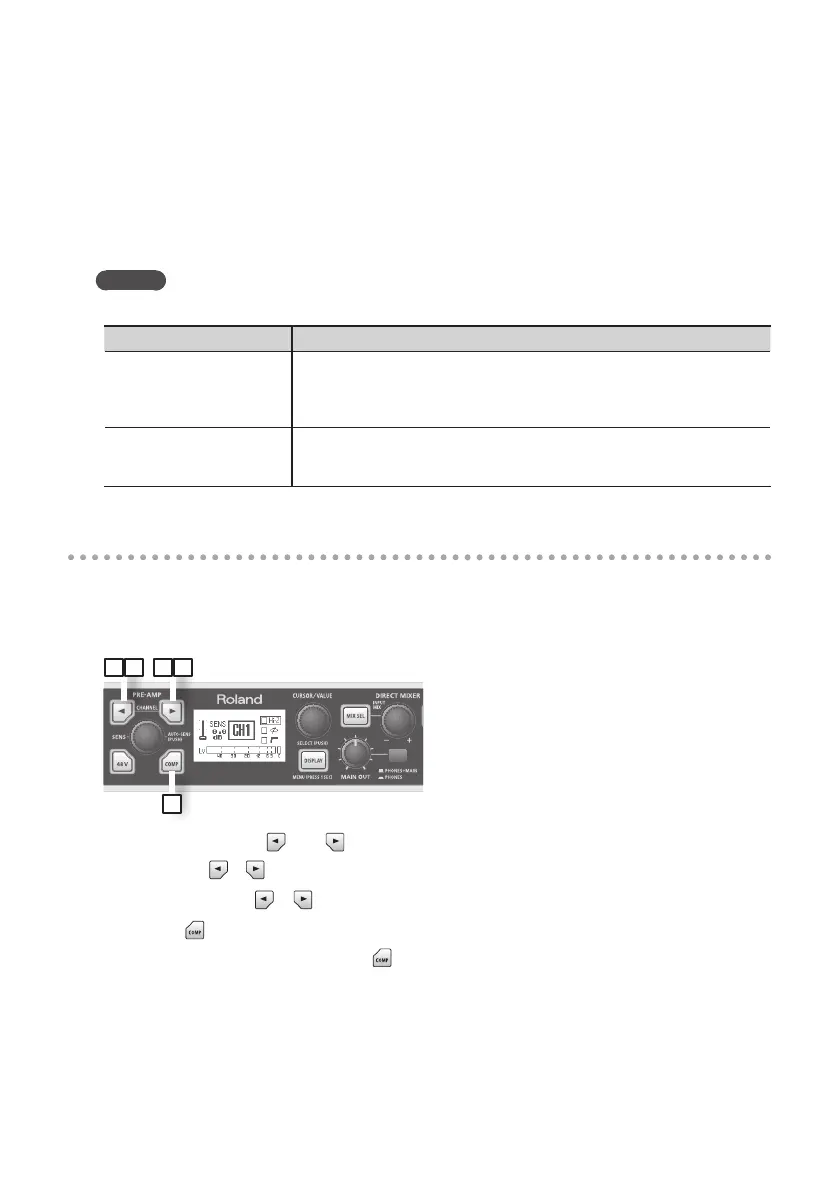

5. Press the [AUTO-SENS] button.
Auto Sens setting will begin. Play the loudest section of the song.
If you decide to cancel the operation, press the [DISPLAY] Button.
While the Auto Sens setting is taking place, the sensitivity will temporarily be set to the minimum.
6. Press the [AUTO-SENS] button once again.
MEMO
The time used by the Auto Sens setting is specied in the Utility section (p. 59).
Auto Sens Setting Time Explanation
Manual
The recording level will be set according to the maximum volume that was
input between the moment you initiated Auto Sens and the moment you
pressed the [AUTO-SENS] button once again. There is no limitation on the Auto
Sens time.
30 sec, 1 min, 3 min, 5 min
If you press the [AUTO-SENS] button once again while the Auto Sens setting
is in progress, the recording level will automatically be set according to the
maximum volume that was received up to that point during Auto Sens.
Compressor on/o
If the compressor is turned on, the input level will automatically be adjusted when a sudden high-
volume input is received at the combo input jack, preventing clipping distortion from occurring.
The volume will also be boosted automatically when the input is low, making the volume of your
recording more consistent.
1 2 21
3
1. Press the CHANNEL [ ] or [ ] button.
The CHANNEL [ ] [ ] buttons will light, and the preamp setting screen will appear.
2. Use the CHANNEL [ ] [ ] buttons to select the channel that you want to adjust.
3. Press the [
] button.
When the compressor is turned on, the [ ] button will light.
For details on the parameters, refer to “Compressor parameter settings” (p. 58)

Roland Octa-Capture Specifications

Audio Channels

number of audio record channels (44.1/48/96 kHz)	12 channels
number of audio playback channels (44.1/48/96 kHz)	10 channels
number of audio record channels (192 kHz)	4 channels
number of audio playback channels (192 kHz)	4 channels

Signal Processing

pc interface bit depth	24-bit
ad/da conversion bit depth	24-bit
internal processing bit depth	40-bit

Sampling Frequency

ad/da conversion sampling frequency	44.1/48/96/192 kHz
digital (in/out) sampling frequency	44.1/48/96 kHz

Input and Output Levels

nominal input level (input jack 1-6, xlr type)	-56 to -6 dBu
nominal input level (input jack 7-8, xlr type)	-50 to +0 dBu
nominal input level (input jack 1-8, 1/4-inch trs phone type)	-46 to +4 dBu
nominal output level (output 1-8)	+0 dBu (balanced)
headroom	16 dB

Impedance

input impedance (input jack 1-6, xlr type)	5 k ohms (balanced)
input impedance (input jack 7-8, xlr type)	10 k ohms (balanced)
input impedance (input jack 1-8, 1/4-inch trs phone type)	17 k ohms (balanced)
output impedance (output 1-8)	1.8 k ohms (balanced)
output impedance (phones)	47 ohms

Frequency and Noise

frequency response (192 kHz)	20 Hz to 90 kHz (+0/-8 dB)
frequency response (96 kHz)	20 Hz to 40 kHz (+0/-2 dB)
frequency response (48 kHz)	20 Hz to 22 kHz (+0/-2 dB)
frequency response (44.1 kHz)	20 Hz to 20 kHz (+0/-2 dB)
residual noise level	-87 dBu typ. (GAIN: min., 600 ohms terminated, IHF-A)

Dynamic Range and Display

dynamic range (ad block input 1-8)	104 dB typ. (GAIN: min.)
dynamic range (da block output 1-8)	113 dB typ.
display	128 x 64 dots Graphic LCD (backlit LCD)

Connectors

input jacks (xlr type / 1/4-inch trs phone type)	XLR type (balanced/phantom power +48 V), 1/4-inch TRS phone type (balanced)
coaxial input connector	present
coaxial output connector	present
headphone jack	Stereo 1/4-inch phone type
output jack (1/4-inch trs phone type)	balanced
midi connectors	In, Out
usb connector	present

Power and Dimensions

power supply	DC 9 V (AC adaptor)
current draw	1.45 A
dimensions	283.8 (W) x 157.9 (D) x 50.4 (H) mm / 11-3/16 (W) x 6-1/4 (D) x 2 (H) inches
weight	1.32 kg / 2 lbs 15 oz
