8
Apr.2005

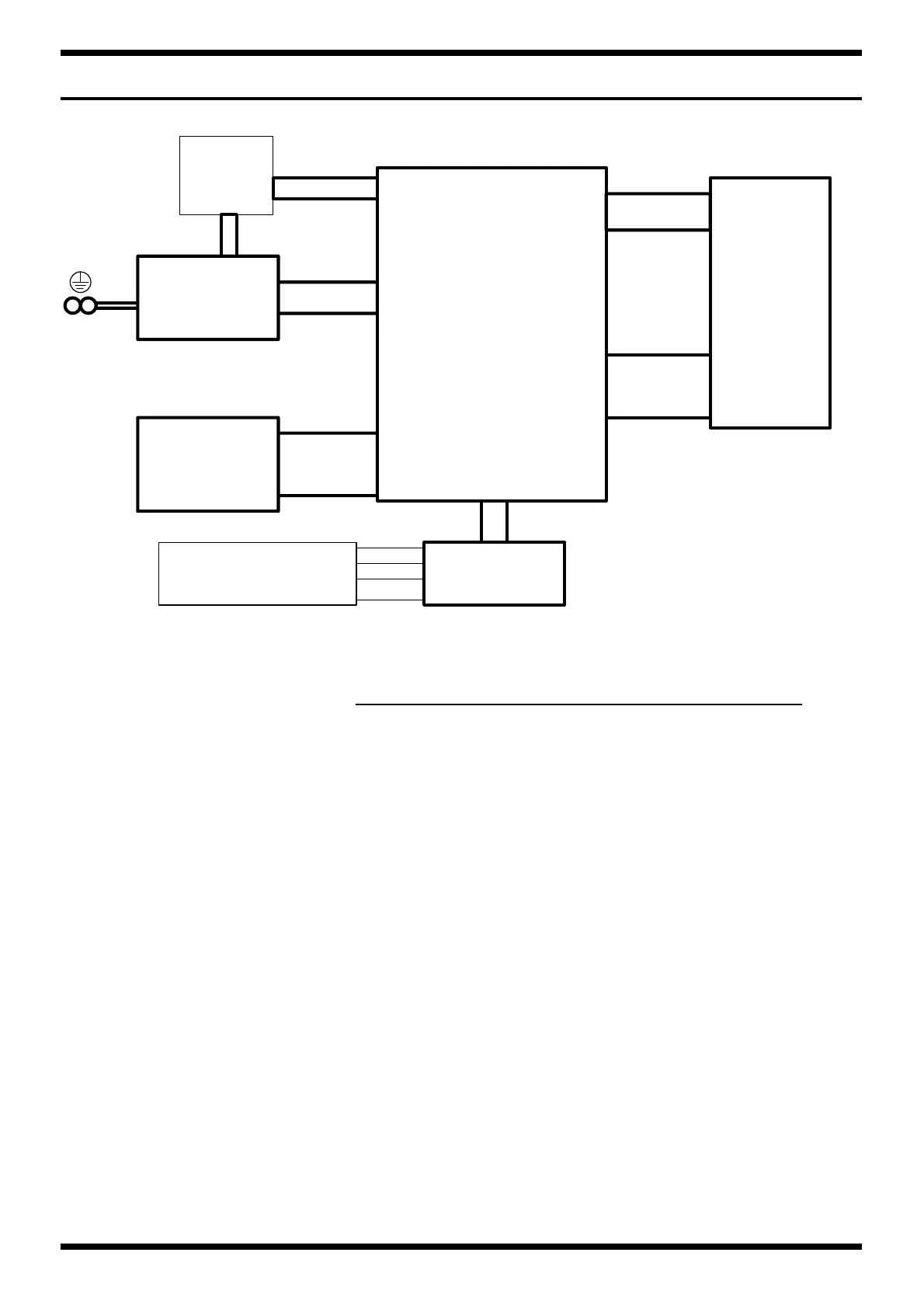

WIRING DIAGRAM
fig.wiring.eps
MAIN
BOARD
LCD
SWITING
UNIT
24pin FPC
LCD CN
BOARD
PANEL
BOARD
16pin FPC
W1
JACK
BOARD
TRIG
BOARD
CN1
CN2 CN6
CN38
CN20
CN37
CN40
CN204
CN203
CN205
CN6
CN101
CN41
CN1
CN2
W2
W3
W4
W5
W8
W6
W7
[Parts]
No PARTCODE PARTNAME
W1 02670889 BAN CARD BNCD-P=1.00-K-26-80
W2 03891834 BAN CARD BNCD-P=1.00-K-40-180
W3 02789112 BAN CARD BNCD-P=1.00-K-10-100
W4 03453723 BAN CARD BNCD-P=1.00-K-40-60
W5 03453667 BAN CARD BNCD-P=1.00-K-28-50
W6 02675701 WIRING W3(AC INLET+GND)
W7 02678478 WIRING W1
W8 03453512 WIRING W1
