Chapter 1 Outputting Sounds
Top Panel
Rear Panel

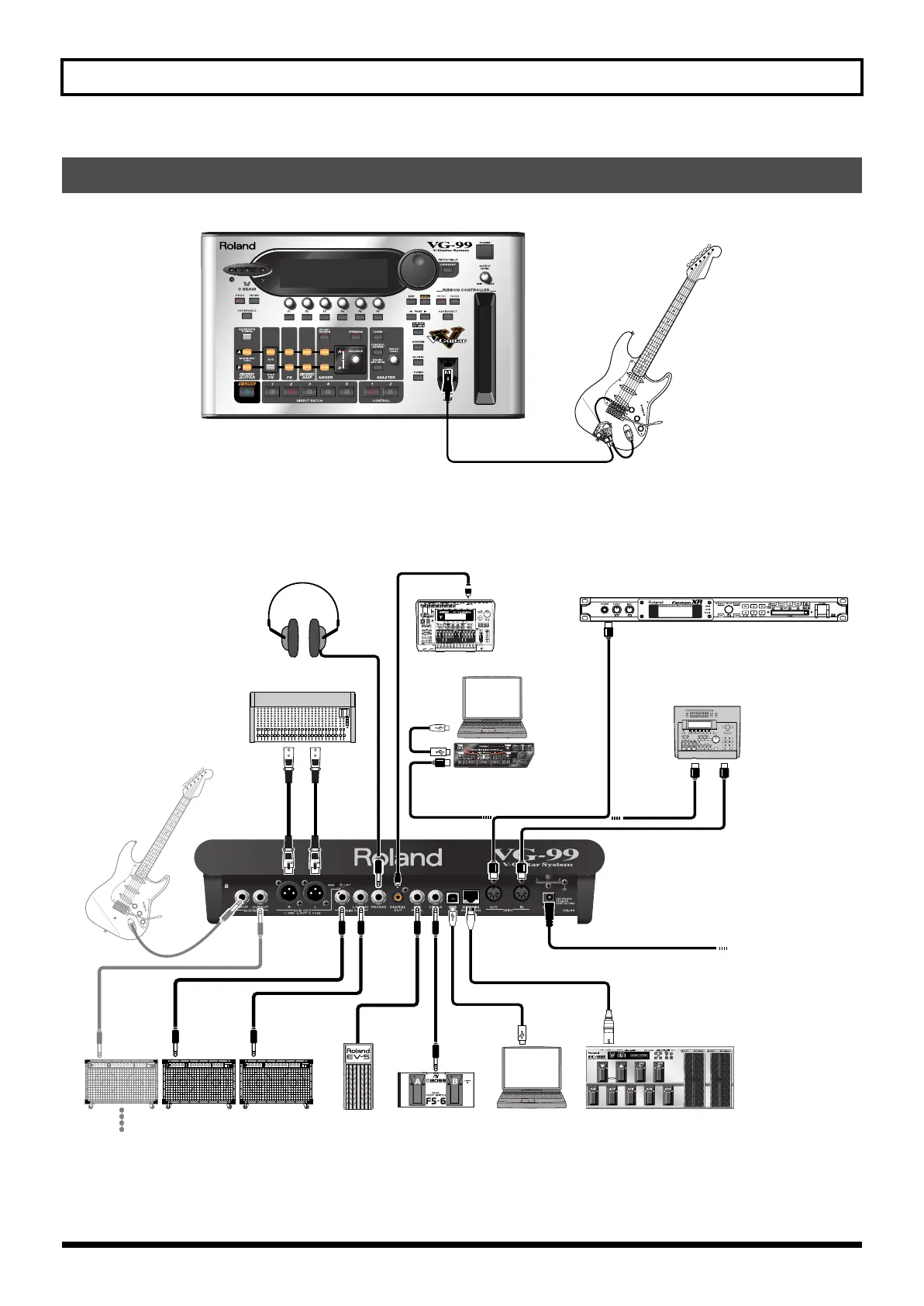

Making the Connections
Guitar with GK-3 / GK-2A /
other GK-Compatible guitar
GK cable
Guitar Amp
(for Normal Guitar)
Stereo
Headphones
Normal Guitar
Digital
Recorder etc.
MIDI Foot Controller
FC-300
Mixer etc.
Footswitch
(BOSS FS-6 etc.)
EXP Pedal
(EV
-5 etc.)
Computer
RRC2 cable
MIDI Sequencer etc.
MIDI IN
MIDI OUT
A
C Adaptor PSB-1U
V
-LINK
Compatible Device
(EDIROL MD-P1 etc.)
Computer
MIDI IN
MIDI IN
Synthesizer
(external sound module) etc.
