Chapter 3 Selecting Output Jacks
Chap.3
Performance Mode Settings

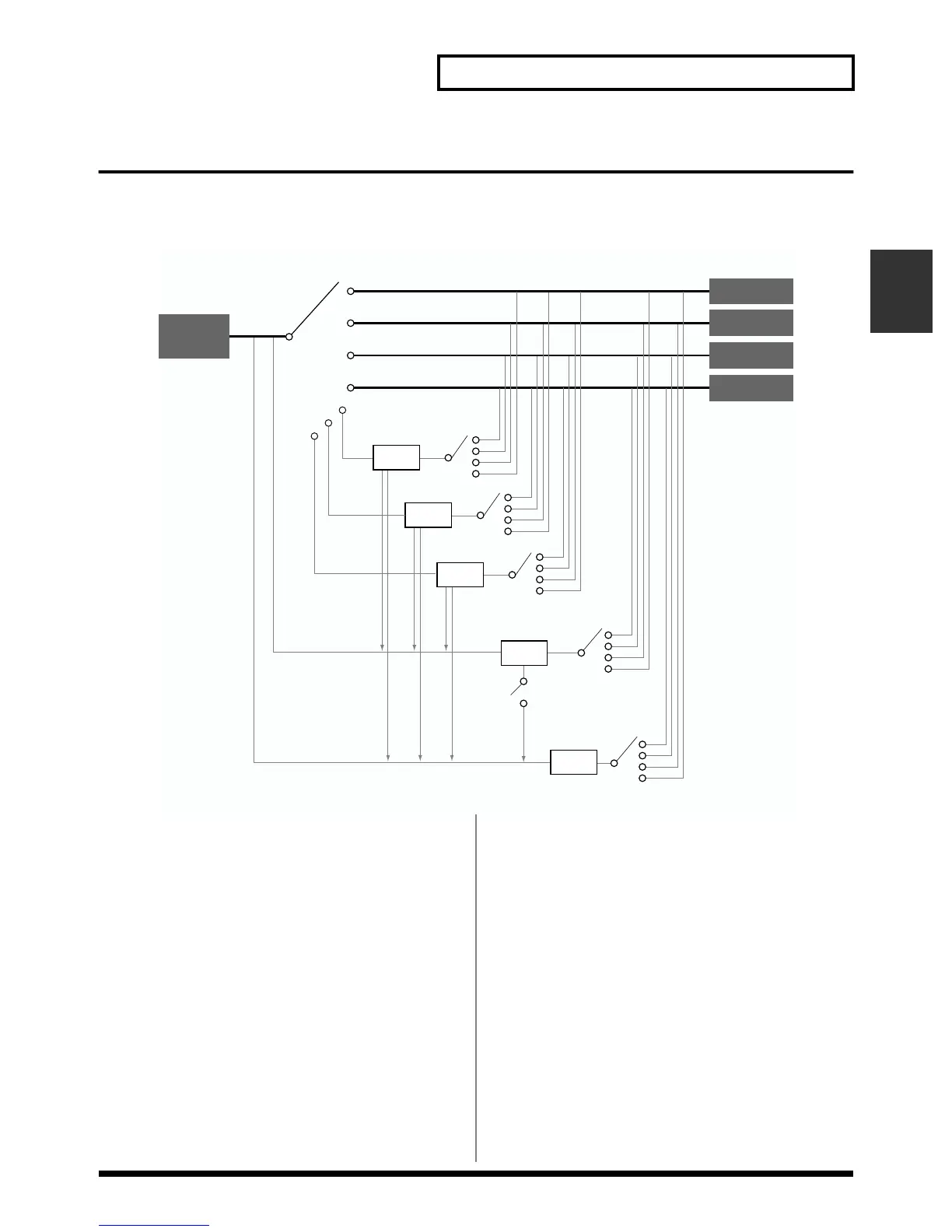

Signal (PART) Flow
fig.03-002.e
Parameters
The parameters related to Part output settings are shown
below.
PERFORMANCE Effects General page
([PERFORM] - [F6 (Effects)] - [F1
(General)])
Sets the output destination and level for the selected Part, as
well as its send level with respect to the Chorus and Reverb.
Part Output Assign
Available Settings:
MFX: The Part is sent into the Multi-effects. Its output
destination is determined by the Multi-effects output
settings.
A–D: The Part is sent to the selected pair of OUTPUT A–D
jacks.
1–8: The Part is sent to the INDIVIDUAL OUTPUT jacks 1–8.
PAT: The Part’s output destination is determined by the
settings of the Patch or Rhythm Set assigned to the Part.
Part Output MFX Select
Available Settings: A–C
Selects which of the three Multi-effects is to be used.
Part Dry Send Level
Range: 0–127
Sets the level of the signal to be sent to the OUTPUT jacks,
which is determined by Part Output Assign.
B
A
C
D
CHO
PART
OUTPUT B
OUTPUT C
OUTPUT D
REV
Output Assign
M-FX
Output Assign
Chorus
Output Assign
Reverb
Output Assign
OUTPUT A
M-FX A
M-FX B
M-FX C
To Next Page
