Roland XV-5080. User Manual

74
Chapter 2 Using the XV-5080 Effects
Output
Level (Output Level) #
Adjust the output level.
53:OVERDRIVE 2
This is an overdrive that provides heavy distortion.

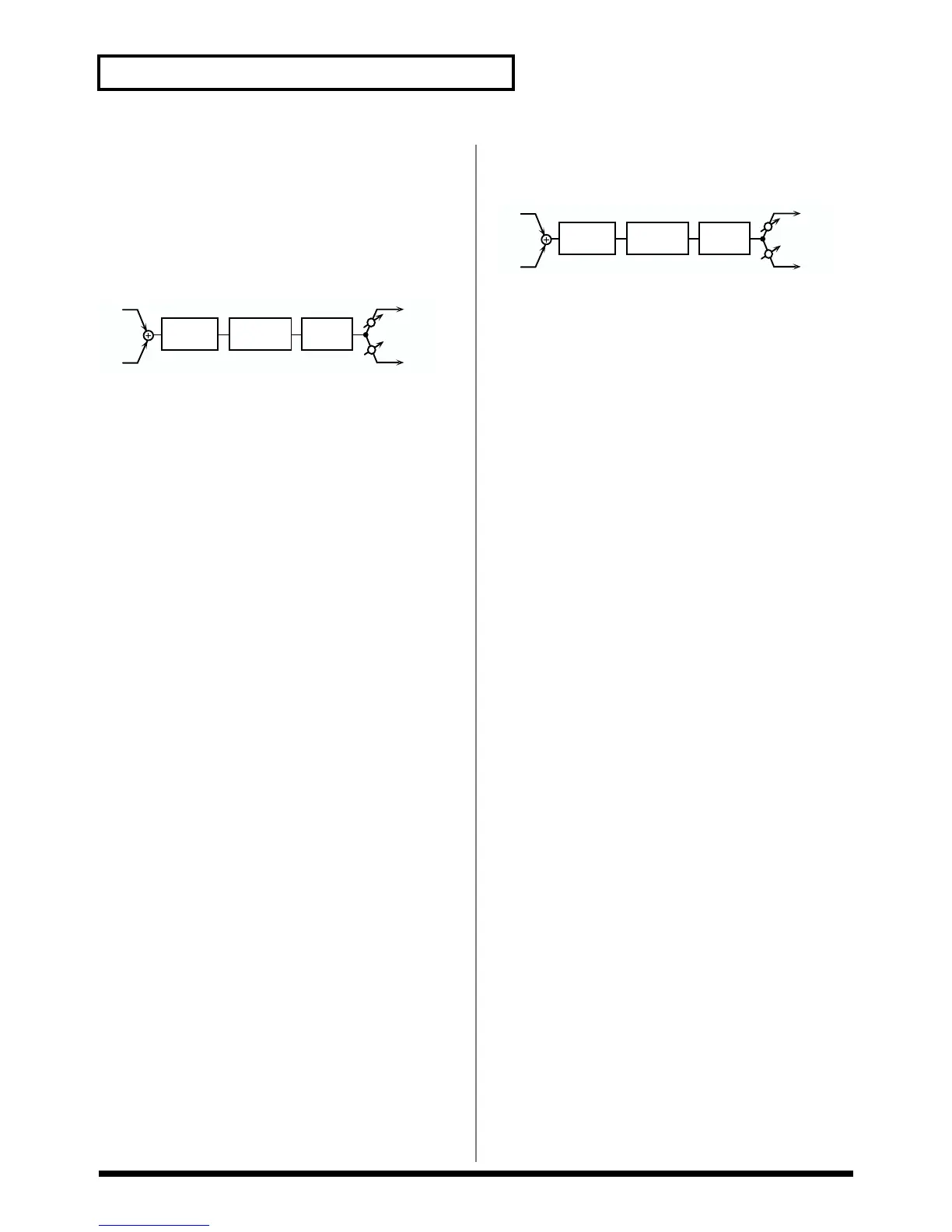

fig.2-63
Overdrive
Drive #
Adjust the amount of distortion. The volume will change
together with the degree of distortion.
Tone
Adjust the sound quality of the Overdrive effect.
Amp Simulator
Switch
Turns the Amp Simulator on/off.
Type (Amp Simulator Type)
Ajust the type of guitar amp.
SMALL : small amp
BUILT-IN : single-unit type amp
2-STACK: large double stack amp
3-STACK: large triple stack amp
EQ Gain
Low (Low Gain)
Adjust the low frequency gain (amount of boost or cut).
Positive (+) settings will emphasize (boost) the low
frequency range.
High (High Gain)
Adjust the high frequency gain (amount of boost or cut).
Positive (+) settings will emphasize (boost) the high
frequency range.
Output
Level (Output Level)
Adjust the output level.
Pan (Output Pan) #
Adjust the stereo location of the output sound. A setting of
L64 is far left, 0 is center, and 63R is far right.
54:DISTORTION 2
This is a distortion effect that provides heavy distortion.
fig.2-64
Distortion
Drive #
Adjust the amount of distortion. The volume will change
together with the degree of distortion.
Tone
Adjust the sound quality of the Overdrive effect.
Amp Simulator
Switch
Turns the Amp Simulator on/off.
Type (Amp Simulator Type)
Ajust the type of guitar amp.
SMALL : small amp
BUILT-IN : single-unit type amp
2-STACK: large double stack amp
3-STACK: large triple stack amp
EQ Gain
Low (Low Gain)
Adjust the low frequency gain (amount of boost or cut).
Positive (+) settings will emphasize (boost) the low
frequency range.
High (High Gain)
Adjust the high frequency gain (amount of boost or cut).
Positive (+) settings will emphasize (boost) the high
frequency range.
Output
Level (Output Level)
Adjust the output level.
Pan (Output Pan) #
Adjust the stereo location of the output sound. A setting of
L64 is far left, 0 is center, and 63R is far right.
L in
R in
L out
R out
Pan R
Pan L
Amp
Simulator
2-Band
EQ
Overdrive
L in
R in
L out
R out
Pan R
Pan L
Amp
Simulator
2-Band
EQ
Distortion
