Ruijie RG-AP720-I User Manual

2 Product Image

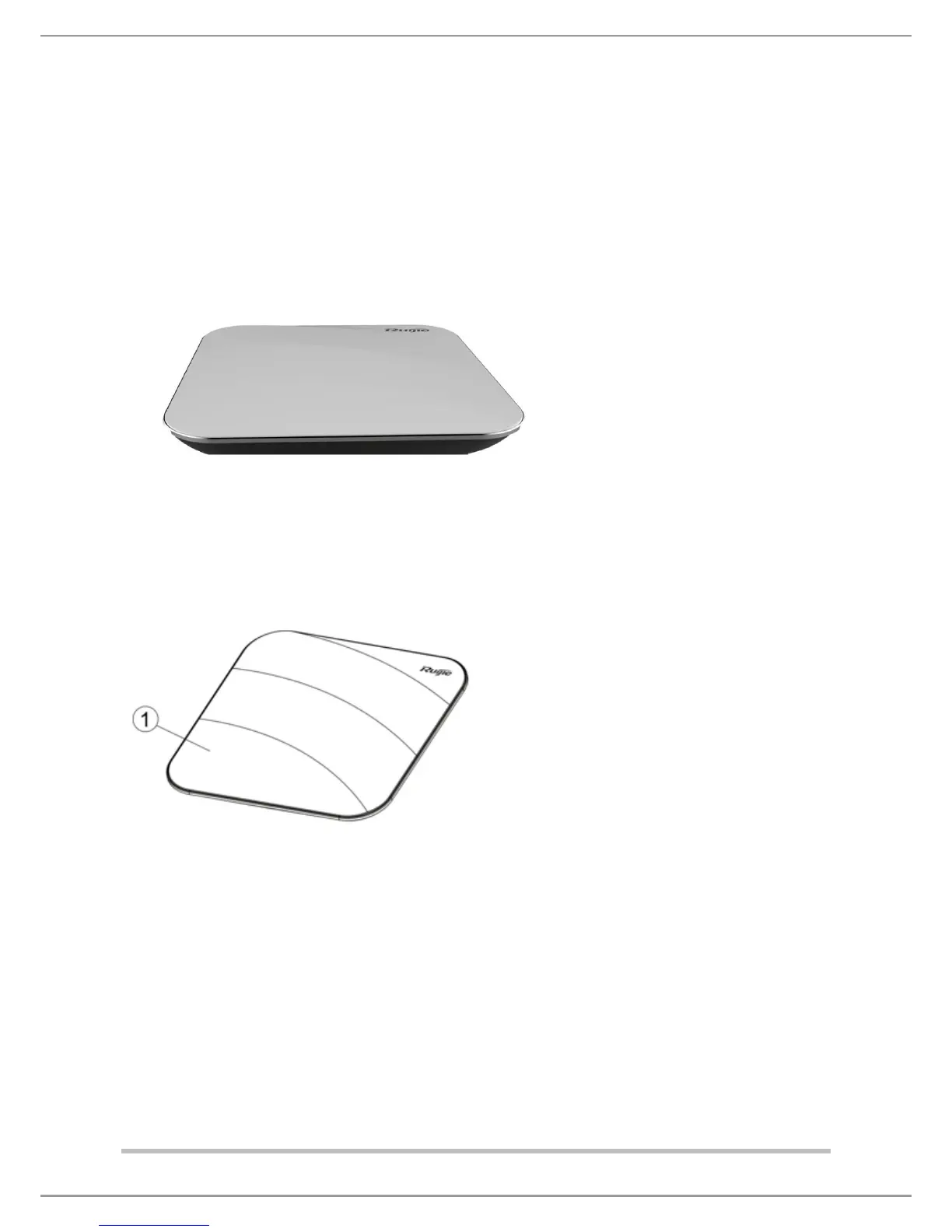

Figure 2-1 Product Image of RG-AP720-I
Figure 2-2 Top View of RG-AP720-I
Figure 2-3 Bottom View of RG-AP720-I

Ruijie RG-AP720-I Specifications

General

Model	RG-AP720-I
Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency Band	2.4 GHz, 5 GHz
Power over Ethernet (PoE)	802.3af/at
Dimensions	200 mm x 200 mm x 45 mm
Operating Temperature	-10°C to 50°C
Operating Humidity	5% to 95% (non-condensing)
Antenna	Internal Antennas
Maximum Transmit Power	20dBm
Ethernet Ports	1 x 10/100/1000 Mbps
Power Supply	DC 12V/1.5A
Mounting Type	Ceiling/Wall Mount
