5.12 FB Group Swing Frequency and Counting Meter
Parameters
The swing frequency function is applied to the textile and chemical fiber industry
etc and the applications where traversing and winding functions are required.

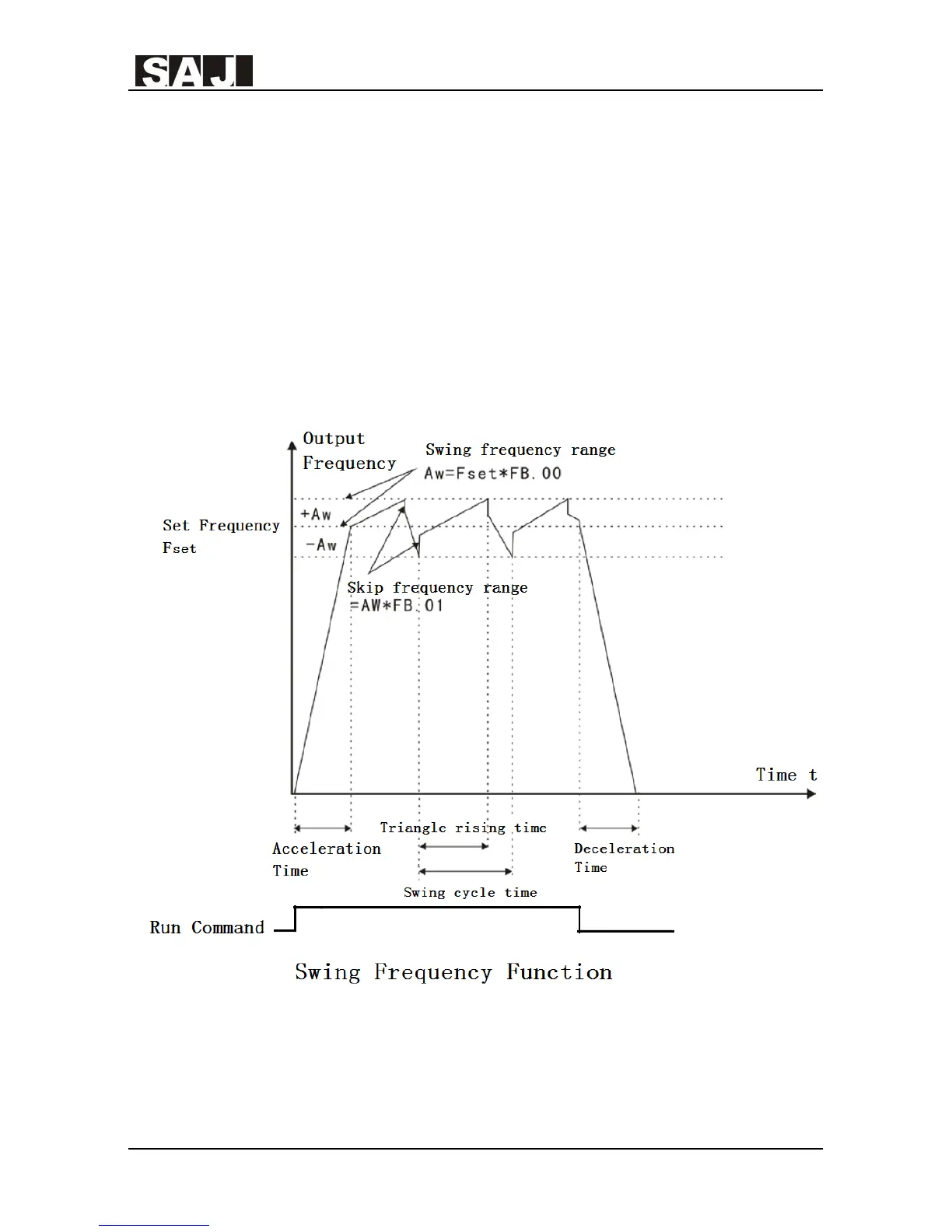

The swing frequency function indicates that the output frequency of the VFD
swings up and down with the setting frequency as the center. The trace of running
frequency at the time axis is shown in the following figure. The swing amplitude is
set by FB.00 and FB.01. When FB.01 is set as 0，namely the swing amplitude is 0，
the swing frequency is disable.
