R5 Series
- 36 -
5.5 Communication Connection
R5 inverter is standardly equipped with a RS485 interface and a RS232 interface.

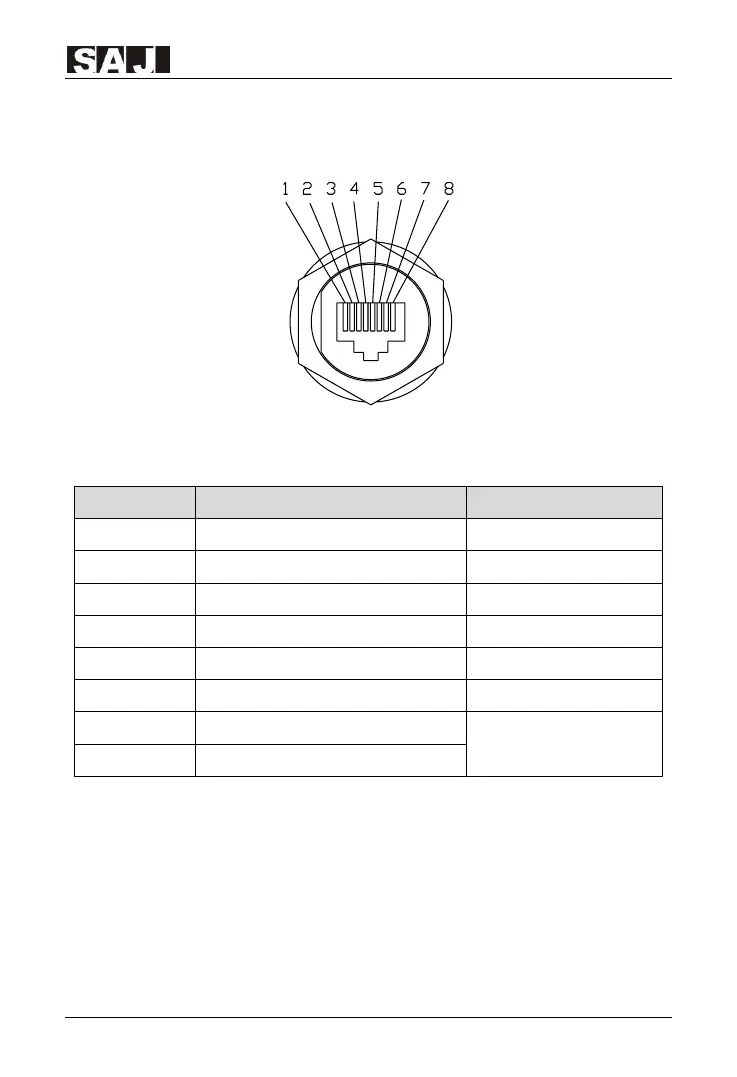

Figure5.15 RS485 pin
Pin Number
Description
Effect
1
NC
2
GND_W
Ground wire
3
+7V_W
Power supply
4
NC
5
NC
6
NC
7
RS485-A
Transmission RS485
differential signal
8
RS485-B
Table 5.6 RS485 pin port definition
