R5 Series
- 9 -
3.2 Specification for Product Model
R5 – XK – T2
① ② ③
① R5 represents for product name.
② XK represents rated power XkW of inverter, for example 4K means 4kW.
③ T means three phase; 2 represents the inverter has the function of dual MPPT.
3.3 Overview of products
The dimensions of R5 series products is shown in Figure 3.2 , Figure 3.3 & Figure
3.4.

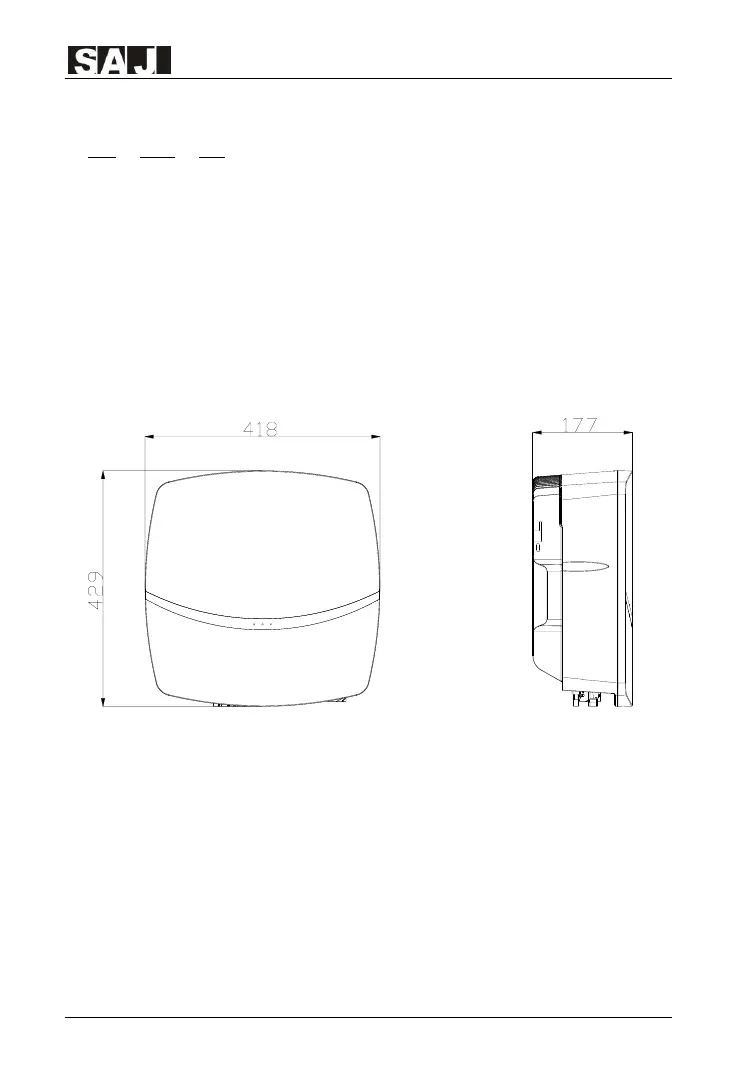

Figure 3.2 Dimensions of R5-3K/4K/5K/6K/8K/9K/10K/12K-T2

Table of Contents

Questions and Answers:

SAJ R5-10K-T2 Specifications

General IconGeneral
Max. DC Input Voltage1100 V
Number of MPPTs2
Nominal AC Output Power10000 W
Max. AC Output Power11000 W
Nominal AC Frequency50/60 Hz
THDi<3%
Max. Efficiency98.4%
Protection DegreeIP65
Cooling MethodNatural Convection
Max. DC Input Power15000 W
MPPT Voltage Range200 V - 950 V
Nominal AC Voltage230 V
AC Voltage Range180 V - 280 V
Power Factor0.8 leading to 0.8 lagging
Operating Temperature Range-25°C to +60°C
Humidity Range0% to 100% RH
CommunicationRS485, Wi-Fi, Ethernet
