SAJ R5-10K-T2 User Manual

R5 Series
- 36 -
5.5 Communication Connection
R5 inverter is standardly equipped with a RS485 interface and a RS232 interface.

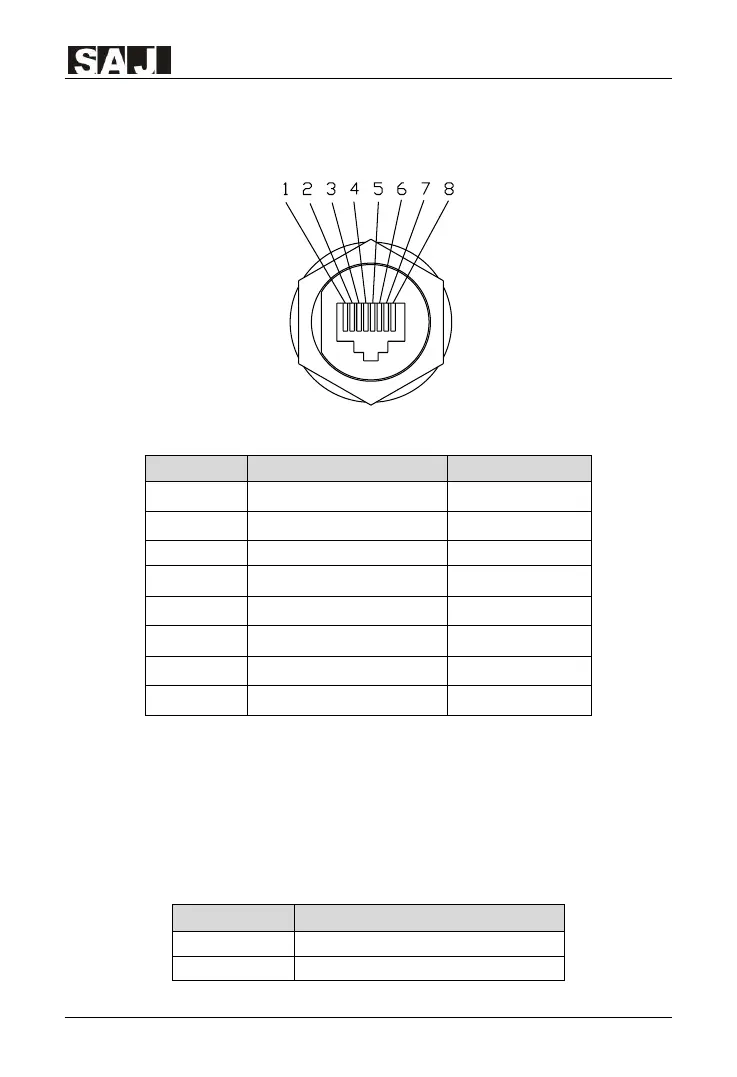

Figure5.16 DRM/RS485 pin
Pin Number
Description
Function
1
White-orange
NC
2
Orange
GND_W
3
White-green
+7V_W
4
Blue
NC
5
White-blue
NC
6
Green
NC
7
White-brown
RS485-A
8
Brown
RS485-B
Table 5.6 RS485 pin port definition
To comply with Australian and New Zealand safety requirements, the
DRMs terminals should be connected. DRM0 is supported. A RJ45
plug is being used as the inverter DRED connection.
Pin No.
Name
1
NC
2
NC
