SAJ R5-10K-T2 User Manual

R5 Series
- 8 -
Chapter 3 Product Information
3.1 Application Scope of Products
R5-XK-TX products are grid-tied three phase inverters without transformers, and
the inverters are important components of grid-tied solar power systems.
The R5 inverter converts the DC generated by solar panels into AC which is in
accordance with the requirements of public grid and send the AC into the grid,

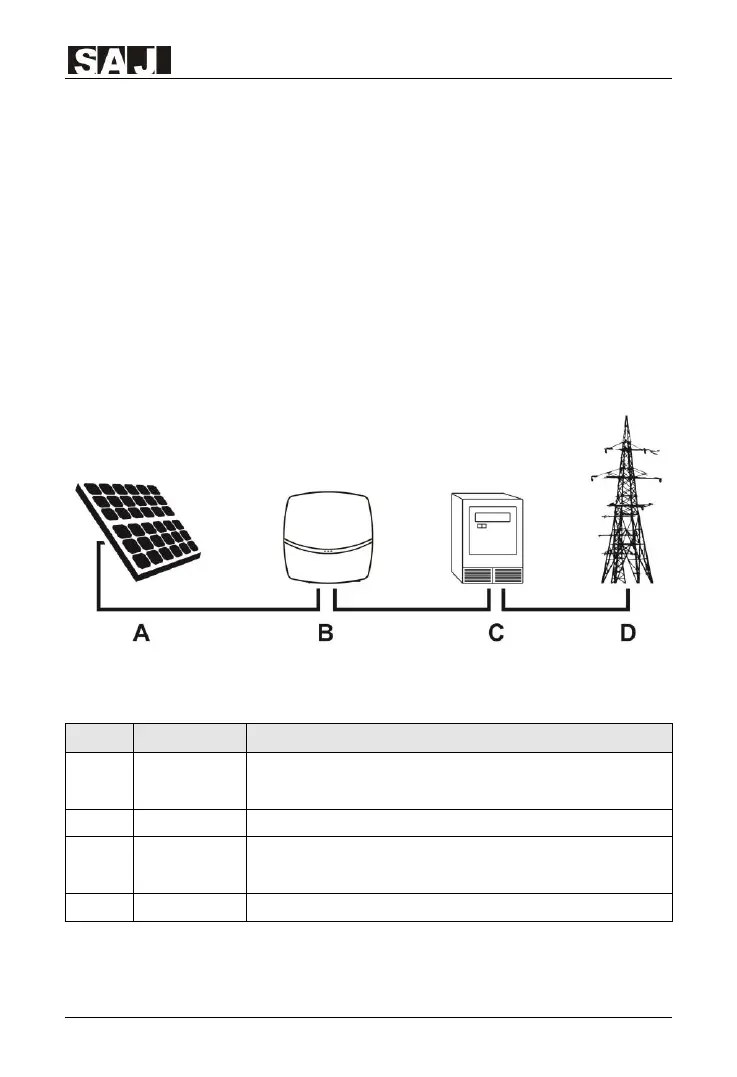

Figure 3.1 shows the structural diagram of the typical application system of R5
inverter.
Figure 3.1 R5 series application
Name
Description
Remarks
A
Solar panels
Monocrystalline or polycrystalline silicon, and thin-film PV
modules with II protection and need no ground connection
B
Inverters
R5-3K/4K/5K/6K/8K/9K/10K/12K/13K/15K/17K/20K-T2
C
Metering
equipment
Standard metering tool for measuring the output electric power
of inverters
D
Power grid
TT, TN-C, TN-S, TN-C-S

SAJ R5-10K-T2 Specifications

General

Max. DC Input Voltage	1100 V
Number of MPPTs	2
Nominal AC Output Power	10000 W
Max. AC Output Power	11000 W
Nominal AC Frequency	50/60 Hz
THDi	<3%
Max. Efficiency	98.4%
Protection Degree	IP65
Cooling Method	Natural Convection
Max. DC Input Power	15000 W
MPPT Voltage Range	200 V - 950 V
Nominal AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to +60°C
Humidity Range	0% to 100% RH
Communication	RS485, Wi-Fi, Ethernet
