SAJ R5-10K-T2 User Manual

R5 Series
- 39 -
Chapter 6 Debugging Instructions
6.1 Introduction of Human-computer Interface

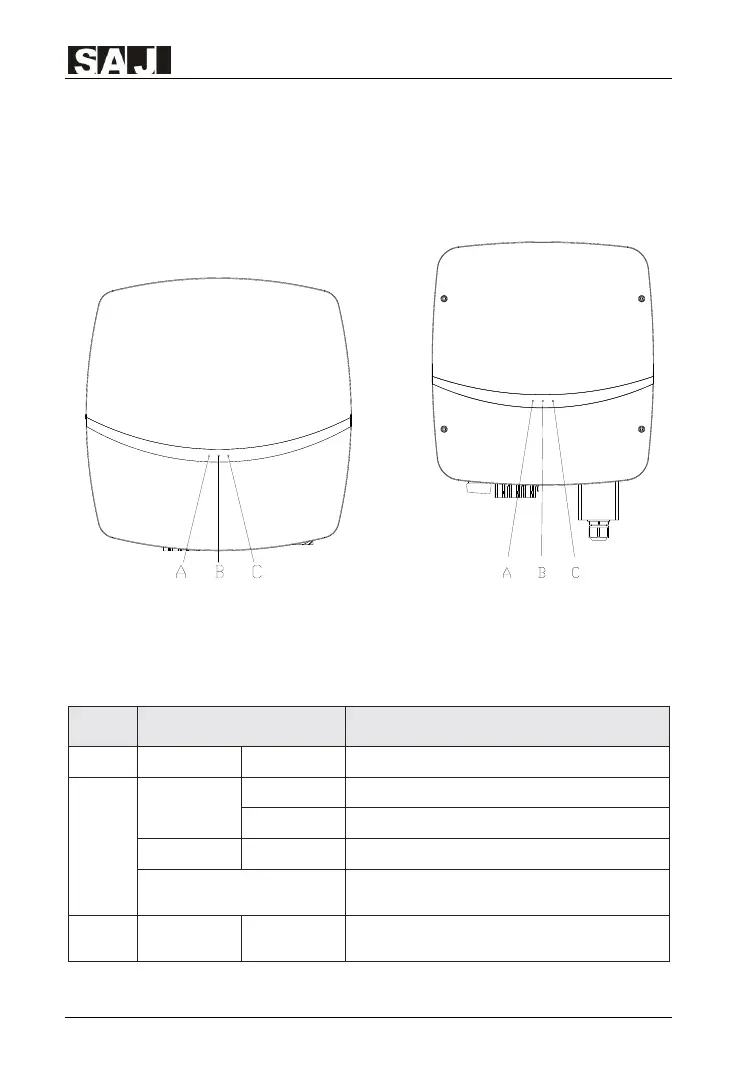

Figure 6.1 Human-computer interface
A-Power indicator light B-System status light C-Communication lamp
Indicator
lamp
LED lamps state
Description
A
Yellow
Always light on
The inverter is just on power.
B
Green
Flicker: 1 s/time
The inverter is in the initialization or waiting state.
Always light on
The inverter is in normal on-grid state.
Red
Always light on
Inverter reports fault.
Green lamp and red lamp 0.5
s/time flickering in alternative
Software is upgrading in the inverter.
C
Blue
Flicker
There is communication in data interaction form
outside the inverter.
Table 6.1 Interface description
