needed to protect the system from tripping, either type A or type AB RCD are
compatible with the inverter.
The integrated leakage current detector of inverter is able to detect the real time
external current leakage. When a leakage current detected exceeds the limitation
the inverter will be disconnected from grid quickly, if an external leakage current
device is connected, the action current should be 300mA or higher.
Inverter type
Recommended breaker specification
R5-3K/3.6K/4K/5K/6K-T2
16A
R5-8K/9K/10K-T2
32A
R5-15K-T2
40A
R5-17K/20K-T2
63A
Notice: Do not connect multiple inverters to one AC circuit breaker.
Table 5.4 Recommended breaker specification
5.4 DC Side Connection
Cross-sectional area of cables（mm²）
Outside diameter of the cables
（mm）
Scope
Recommended value
4.0-6.0
4.0
4.2~5.3
Table5.5 Recommended specifications of DC cables
DC connector is made up of positive connector and negative connector

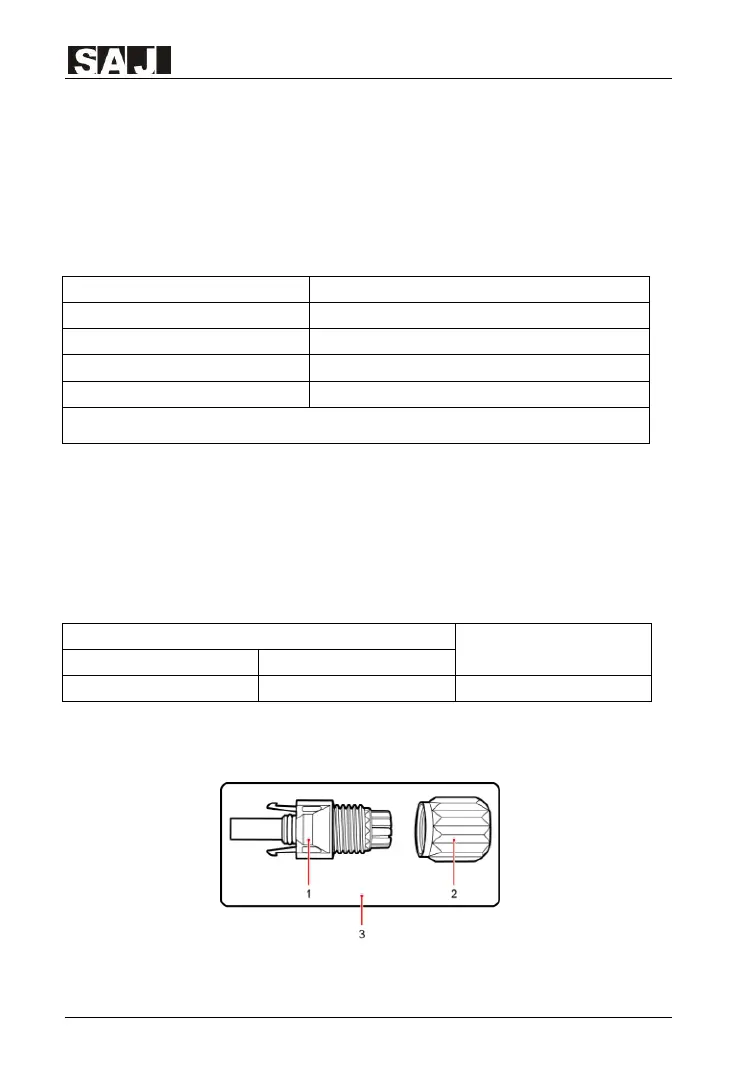

Figure 5.12 Positive connector
