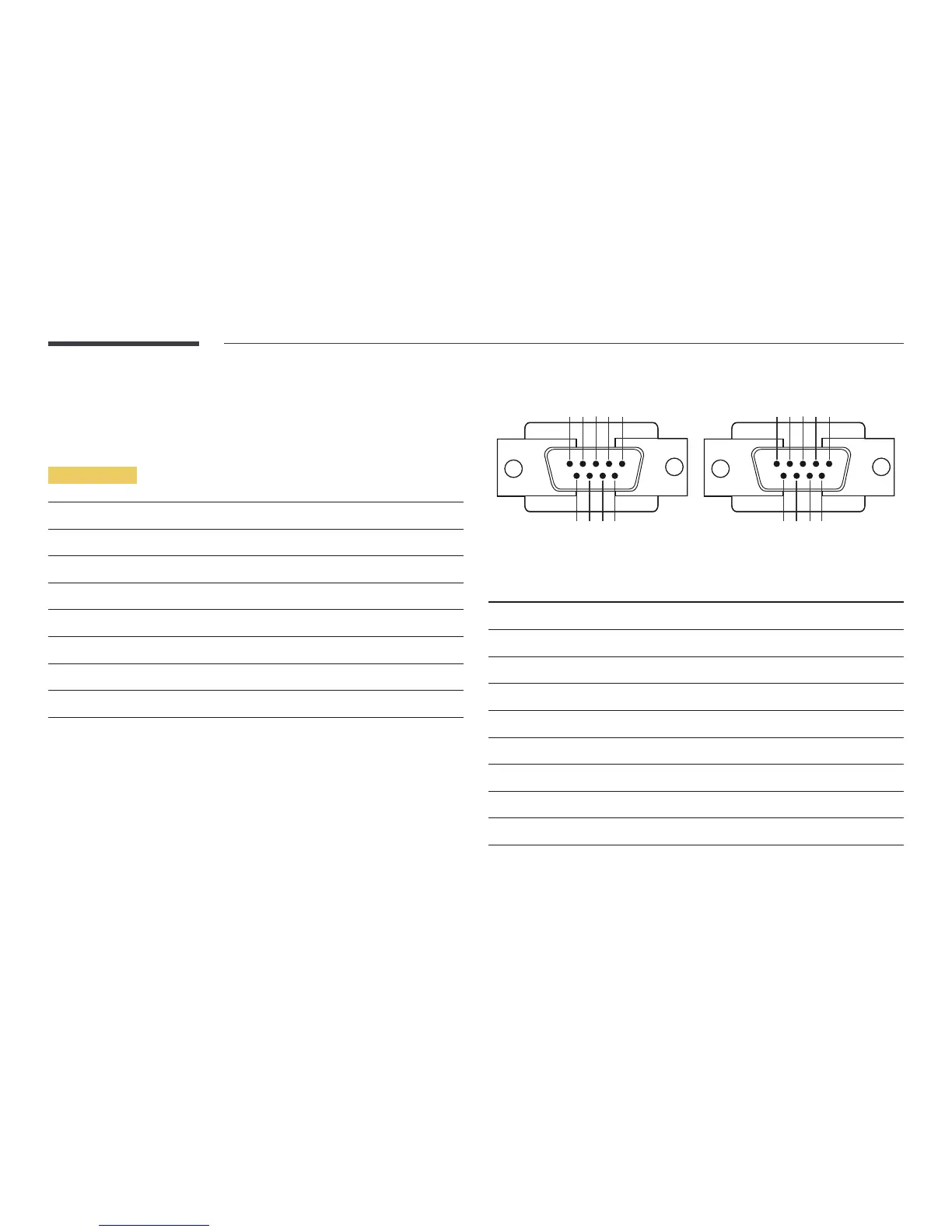

26
Remote C
ontrol (RS232C)
Cable C
onnection
RS232C Cable
Interface
RS232C (9 pins)
Pin
T
xD (No.2), RxD (No.3), GND (No
.5)
Bit rate
9600 bps
Data bits
8 bit
Parity
None
Stop bit
1 bit
Flow contr
ol
None
Maximum length
15 m (only shielded type)
•
Pin assignment
1
2
3
4
5
6
7
8
9
5
4
3
2
1
9
8
7
6
<Male type>
<Female type>
Pin
Signal
1
Detect data carrier
2
Received data
3
Transmitt
ed data
4
Prepar
e data terminal
5
Signal ground
6
Prepar
e data set
7
Send request
8
Clear to send
9
Ring indicator
25
