Before Installing the Product
Refer to the Outdoor Installation Guide.
(http://displaysolutions.samsung.com)
15 ˚
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
Ensure that an authorized installation company installs the wall mount.
Otherwise, it may fall and cause personal injury.
Make sure to install the specified wall mount.
If the product temperature increases due to high outside temperature or the environment in which the product is installed, the
luminance decreases for product overheating mitigation and accident prevention.
Tilting Angle and Rotation
Contact Samsung Customer Service Center for further details.
The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.
To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.

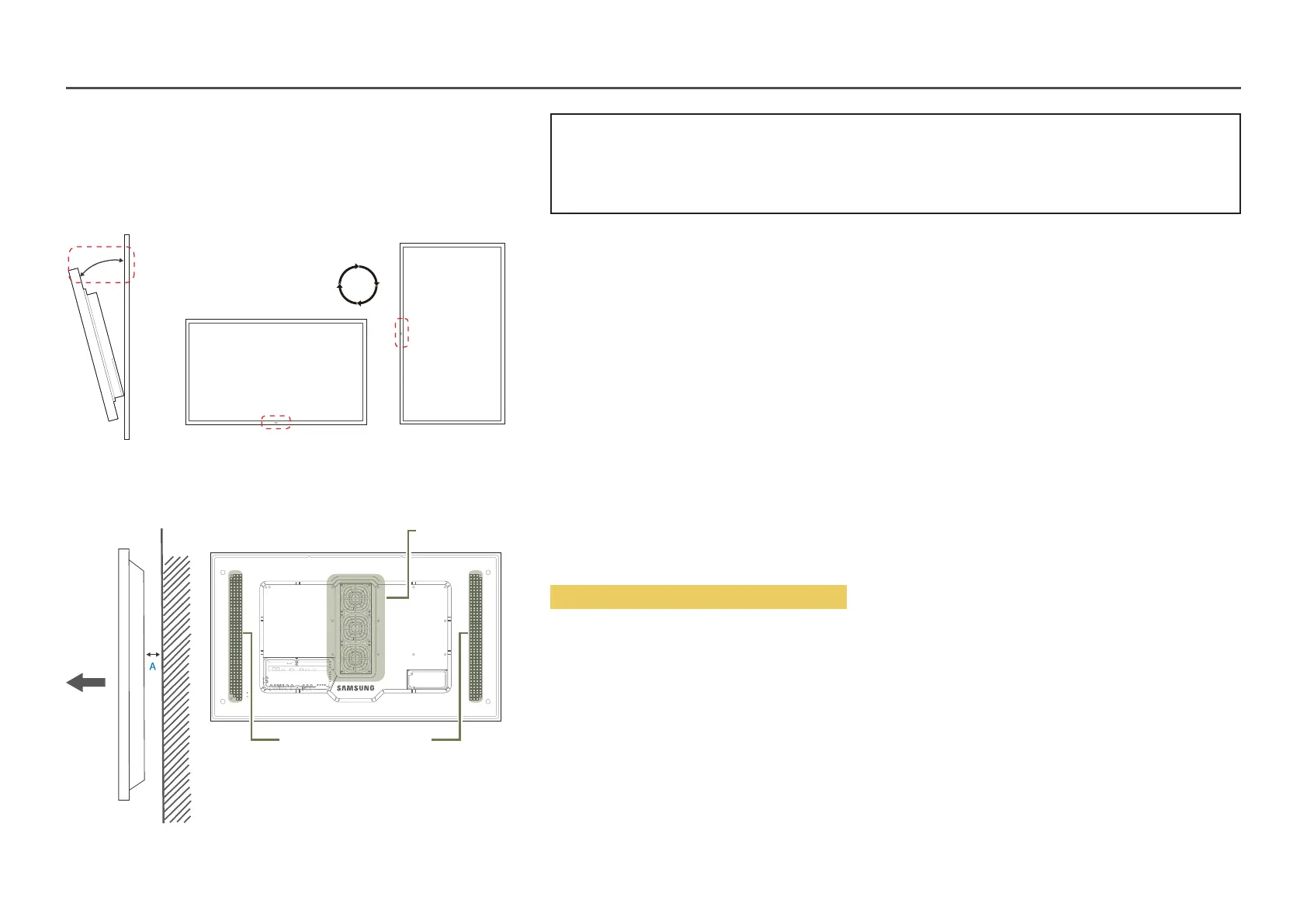

Figure 1.1 Side view
Air vent
Air intake
Ventilation
Installation on a Perpendicular Wall
A Minimum 50 mm
Do not block the vent on the product.
