Sanyo FWDV225F User Manual

PRECAUTIONS
PREPARATION
ADVANCED PLAYBACK
BASIC OPERATIONS RECORDING OPTIONAL SETTINGS TROUBLESHOOTING INFORMATION
EN
9
PREPARATION
1. DVD/VCR AUDIO OUT jack

p.10
•
Connect an RCA audio cable from here to the
audio input jack on your television or audio device.
Standard connection for DVD/VCR use.
2. VCR AUDIO IN jack

p.22
•
Connect an RCA audio cable from the audio output
jack on your camcorder, VCR, etc. to here.
3. DIGITAL AUDIO OUT COAXIAL* jack

p.12
•
Connect a digital audio coaxial cable from here to
the digital audio coaxial in jack on a decoder or
audio receiver.
4. DVD AUDIO OUT* (analog) jack

p.11
•
Connect an RCA audio cable from here to the audio
input jack on your television or audio device.
5. COMPONENT VIDEO OUT* jacks

p.11
•
Connect component video cables from here to the
component video input jacks on your television.
6. DVD/VCR VIDEO OUT jack

p.10
•
Connect an RCA video cable from here to the
VIDEO input jack of your television or audio device.
Standard connection for DVD/VCR use.
7. VCR VIDEO IN jack

p.22
•
Connect an RCA video cable from here to the video
output jack on your camcorder, VCR, etc.
* For enhanced DVD viewing. DVD/VCR video and audio
connection required to view cassette tapes.
Note:
•
RCAaudioandvideocablesareincludedforboth
VCRandDVDviewing.Youcanenhanceyour
DVDpictureandsoundqualitywithcomponent
videocablesoradigitalaudiocoaxialcable.
Please purchase the necessary cables at your
local store.(Refertopages11-12.)

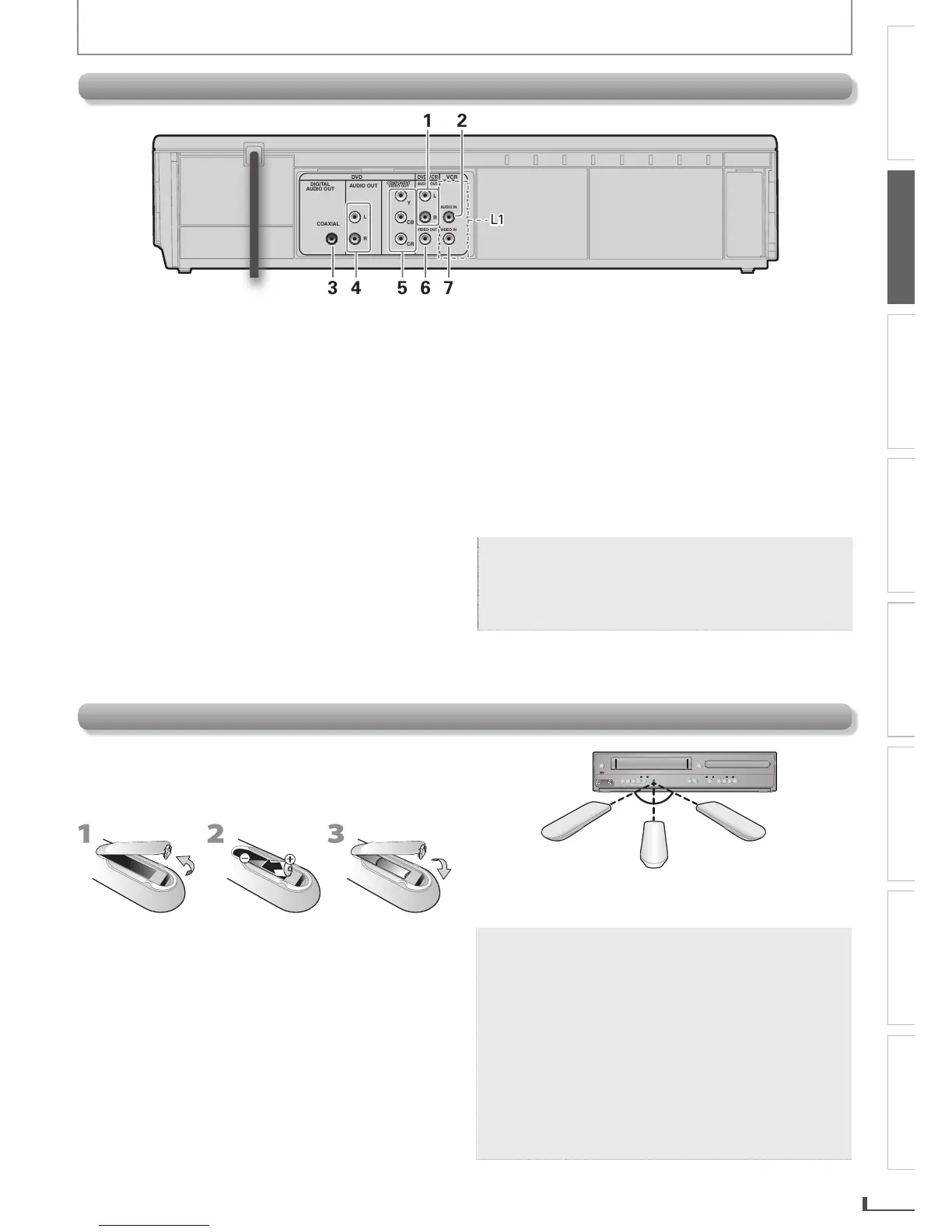

Rear Panel
DIGITAL
AUDIO OUT
COAXIAL
AUDIO OUT
DVD VCR DVD/VCR
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
AUDIO OUT
VIDEO OUT
L
L
Y
R
R
CB
CR
3 4 5 6 7
L1
1 2
L1
Install the 2 AA (1.5 V) batteries matching the polarity
indicated inside battery compartment of the remote
control.
Keep the following in mind when using the remote
control:
•
Make sure that there are no obstacles between the
remote control and the infrared sensor window on the
unit.
•
The maximum operable ranges of the unit are:
- Line of sight: approx. 23 feet (7m)
- Either side of center:
approx. 16 feet (5m) within 30°
- Above: approx. 16 feet (5m) within 15°
- Below: approx. 10 feet (3m) within 30°
16 feet (5m)
30˚30˚
16 feet (5m)
23 feet (7m)
Caution: Never throw batteries into a fire.
Note:
•
Donotmixdifferenttypesofbatteriestogether
(e.g.,AlkalineandCarbon-Zinc)oroldbatteries
withfreshones.Althoughtheymaylooksimilar,
differentbatteriesmayhavedifferentvoltages.
•
Iftheremotecontrolisnottobeusedforalong
periodoftime,removethebatteriestoprevent
damageorinjuryfrompossiblebatteryleakage.
•
Donottrytorechargebatteries;theycan
overheatandrupture.
•
Batteriesshouldalwaysbedisposedofwith
theenvironmentinmind.Alwaysdisposeof
batteriesinaccordancewithapplicablelawsand
regulations.
Installing the Batteries in the Remote Control
