21
Installation

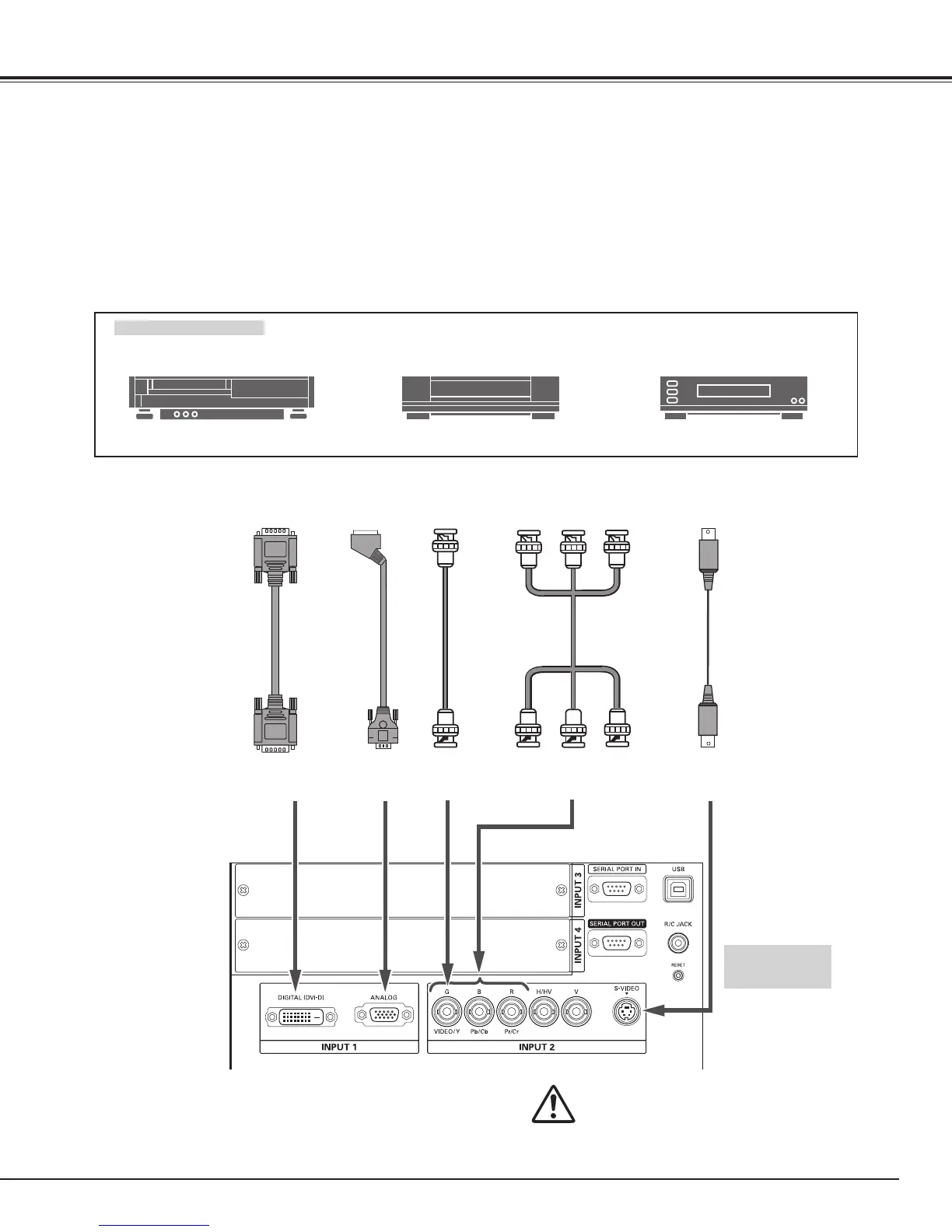

Connecting to Video Equipment
Video Source (example)
Video Cassette Recorder
Video Disc Player
RGB SCART
21-pin Output
Y
Pb/Cb Pr/Cr
Y-Pb/Cb-Pr/Cr
Component video output equipment.
(such as DVD player or
high-definition TV source.)
Component Video Output
BNC
Cable
Digital Output
(HDCP compatible)
DVI Cable
SCART-VGA
Cable
DIGITAL
Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting cables.
S-Video Output
S-VIDEO
Cables used for connection
• Video Cable (BNC x 3, BNC x 1)
• SCART-VGA Cable
• DVI Cable
• S-Video Cable
( Cables are not supplied with the projector.)
Composite
Video Output
S-Video Cable
VIDEOANALOG
Terminals of
the projector
BNC
Cable
To Next Page
