-49-

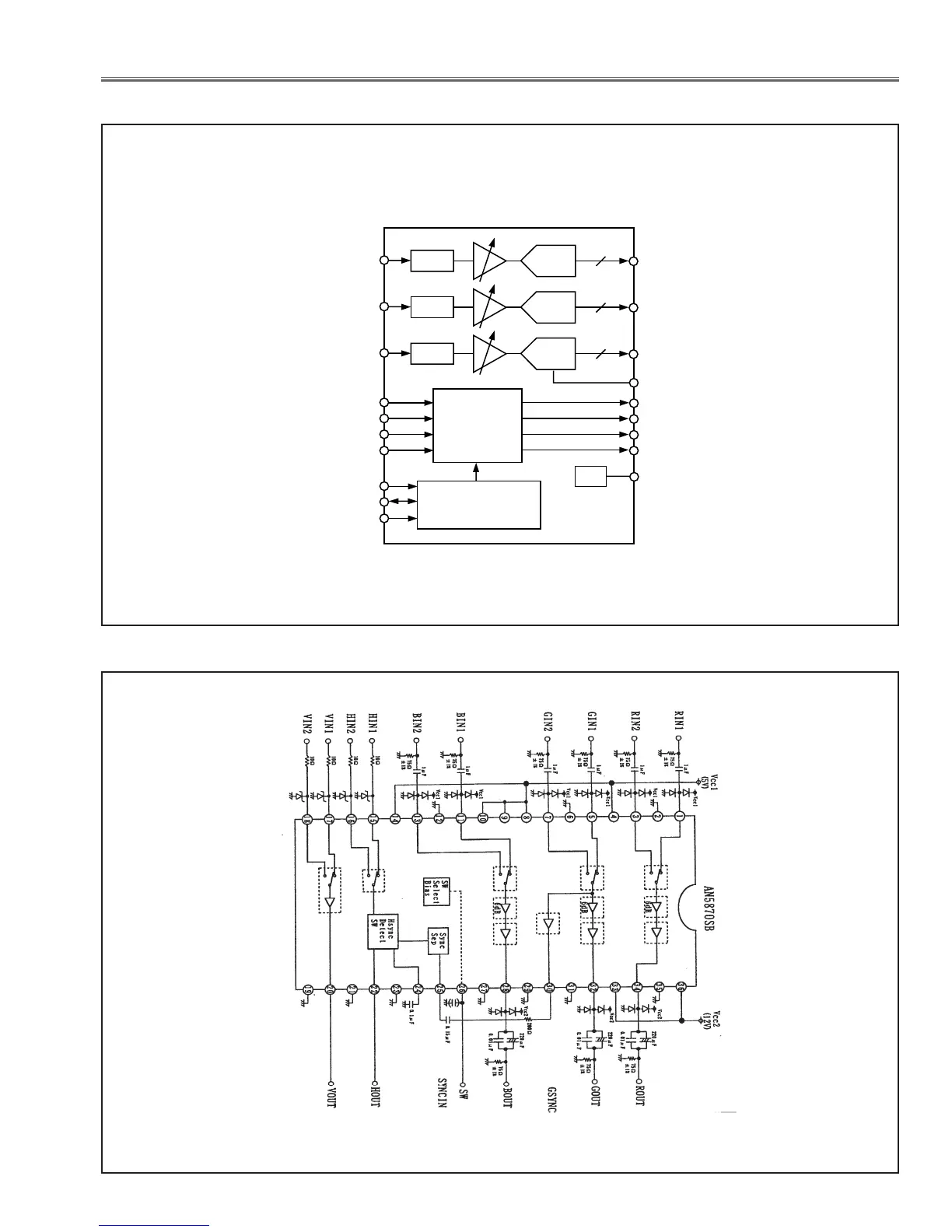

IC Block Diagrams
● AD9882 <A/D, IC8201>
R
AIN
R
OUTA
G
AIN
G
OUTA
B
AIN
B
OUTA
MIDSCV
SYNC
PROCESSING
AND CLOCK
GENERATION
HSYNC
COAST
CLAMP
FILT
DTACK
HSOUT
VSOUT
SOGOUT
REF
REF
BYPAS
S
SERIAL REGISTER
AND
POWER MANAGEMENT
SCL
SDA
A
0
AD9883A
CLAMP
8
A/D
CLAMP
8
A/D
CLAMP
8
A/D
● AN5870 <RGB,SYNC-SW, IC5201>
