Installation

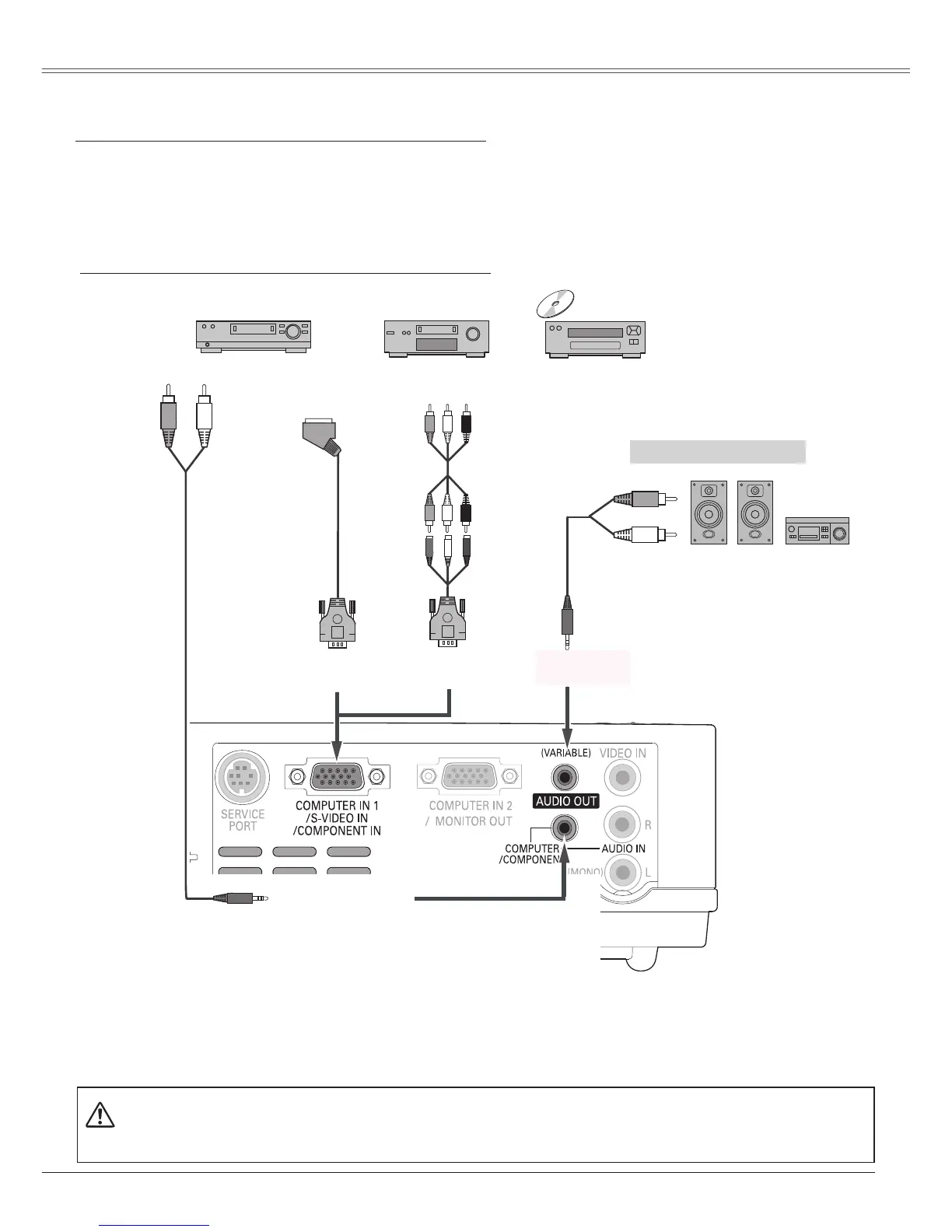

Connecting to Component Video and RGB (Scart) Equipment
Cables used for connection
• Audio Cables (Mini Plug :stereo)
• Scart-VGA Cable
• Component Cable
• Component-VGA Cable
(Not all the cables are supplied with this projector.)
External Audio Equipment
COMPUTER IN 1/S-VIDEO IN/COMPONENT IN
COMPUTER/
COMPONENT
AUDIO IN
Audio cable
(stereo)
Au d i o ca b l e
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart
21-pin Output
Audio Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
✔ Notes:
•
When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 72 for ordering optional parts.
Unplug the power cords of both the projector and external equipment from the AC outlet before
connecting cables.
