Part Names and Functions

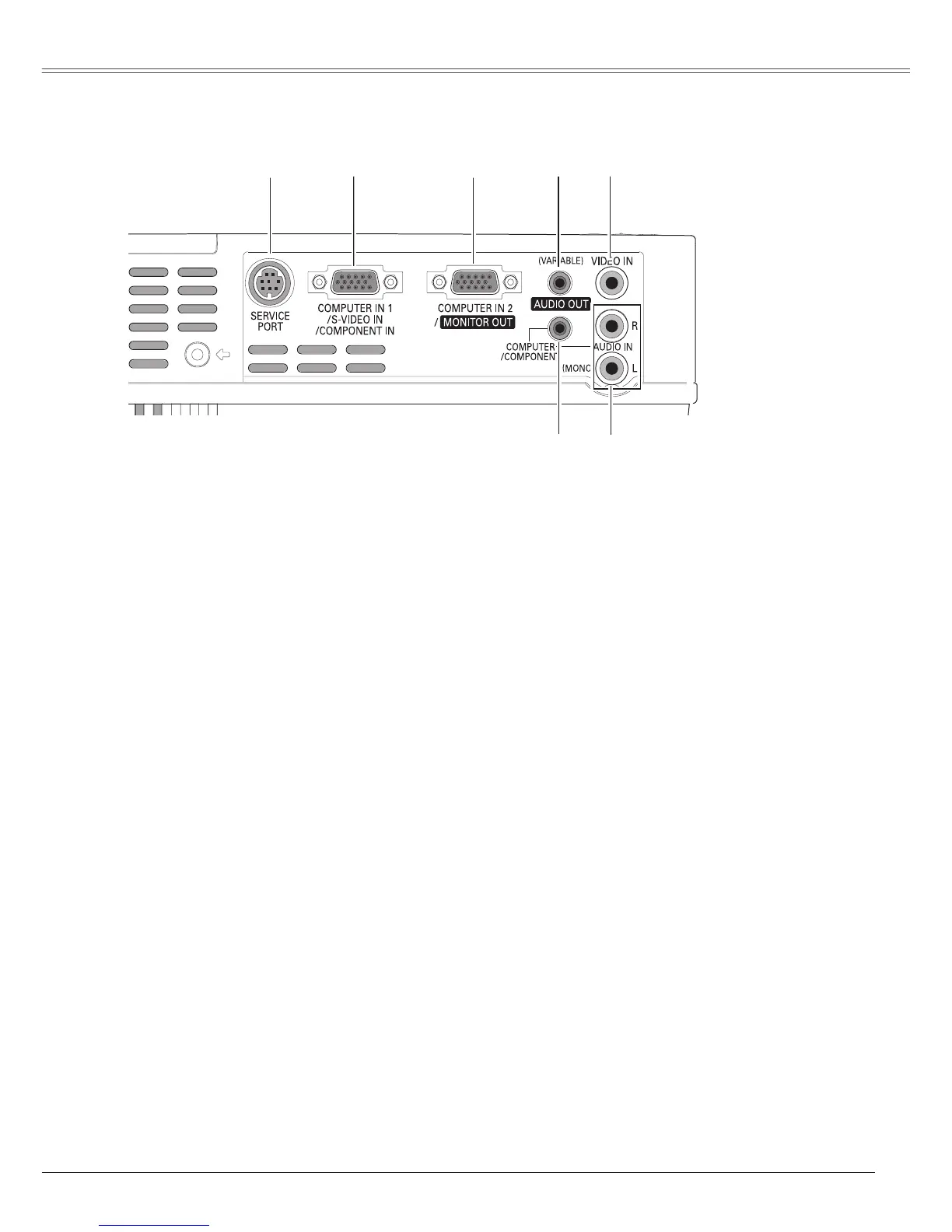

Rear Terminal
e COMPUTER IN 2 / MONITOR OUT
This terminal is switchable and can be used for
input from a computer or output the incoming
RGB analog signal from COMPUTER IN1
/S-VIDEO IN / COMPONENT IN terminal to the
other monitor.
Set the terminal up as either Computer input
or Monitor output properly. (Used for Monitor
out, this terminal outputs only incoming RGB
signal from COMPUTER IN 1/S-VIDEO IN /
COMPONENT IN terminal.) (p15, 17, 50)
q SERVICE PORT
This jack is used to service the projector.
w COMPUTER IN 1 / S-VIDEO IN
/ COMPONENT IN
Connect output signal from a computer, RGB
scart 21-pin video output, S-video output,
or component video output to this terminal.
(p.15-17)
When the cable is of the longer variety, it
is advisable to use this terminal and not
COMPUTER IN 2 / MONITOR OUT.
y AUDIO IN
Connect the audio output from video equipment
connected to w or t to this jack. (When
the audio output is monaural, connect it to L
(MONO) jack.) (p.16)
u COMPUTER/ COMPONENT AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to w or
e to this jack. (p15, 17)
t VIDEO IN
Connect the composite video output from video
equipment to VIDEO jack. (p16)
r AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack.
(p15 - 17)
This terminal outputs sound from AUDIO IN
terminal (y or u).
