Adjustment should be made
in
the
following manner.
The
maximum steering angle
is
53° when inside
of
both
right and left
wheels are measured. Turn the steering wheel
to
both right
or
left
with
the
maximum angle, and loosen
the
drag link lock
nut
and
tum
the drag link so
that
the
rear end
of
the inner wheel steering
lever comes contact with
the
stopper. When the wider tread
is
required
the
drag link becomes longer while
the
narrower tread
makes
the
tube shorter.
B.
Rear wheel tread adjustment
To
adjust
the
rear wheel tread, jack up the rear wheels. Select the
tread required for operation by means
of
turning
the
rim inside
out
or
replace
the
tires
of
the
right and left as one side
to
the
other.

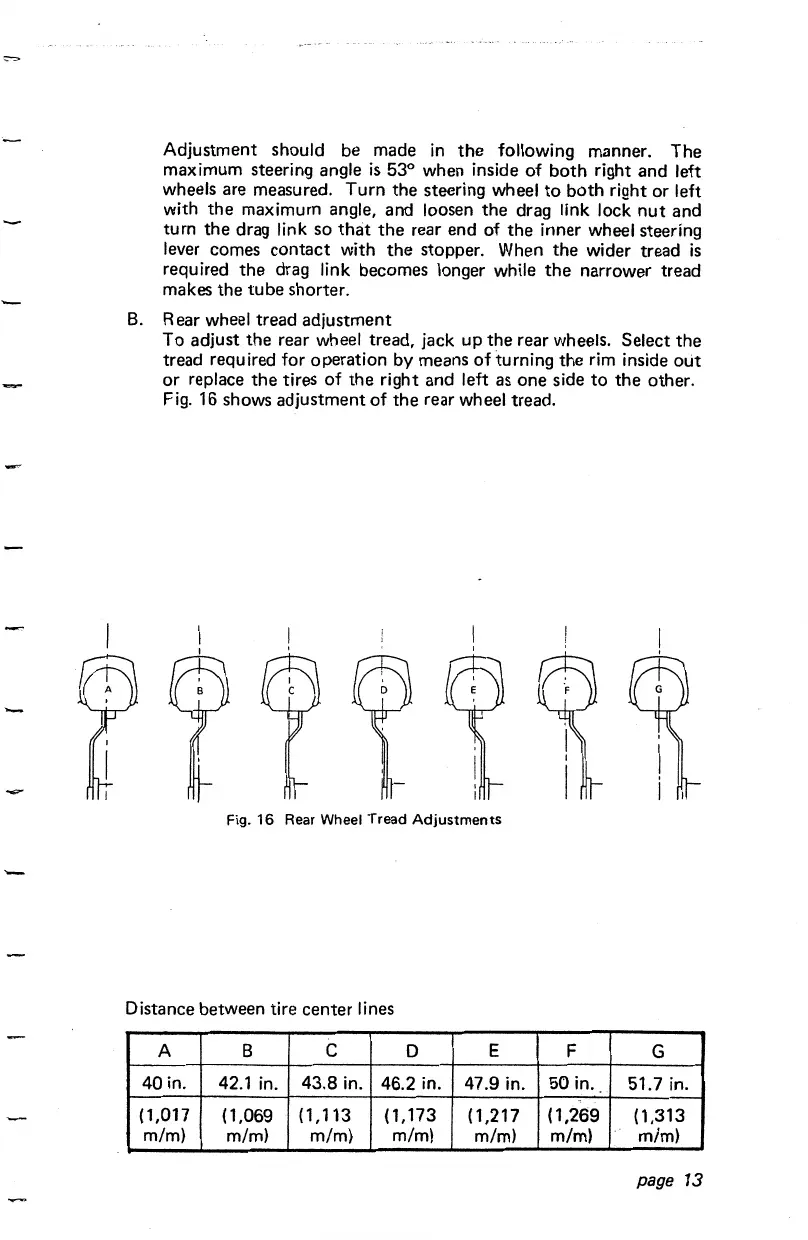

Fig. 16 shows adjustment of the rear wheel tread.
Fig.
16
Rear Wheel Tread
Adjustments
Distance between tire center
Jines
A 8
c D
E F
G
40in.
42.1 in.
43.8 in. 46.2 in. 47.9 in.
50
in. 51.7 in.
(1,017
( 1,069
(1,113
( 1,173 ( 1,217 (1,269
( 1,313
m/m) m/m) m/m) m/m)
m/m) m/m) m/m)
page
13
