G.
The
hydraulic system has improved its performance and durability
by
the
use of an exclusive oil.
H.
External hydraulic valve (optional equipment) provides availability
of
hydraulically driven implements, such as
front
loader, dump
trailer, hydraulic mower, etc.

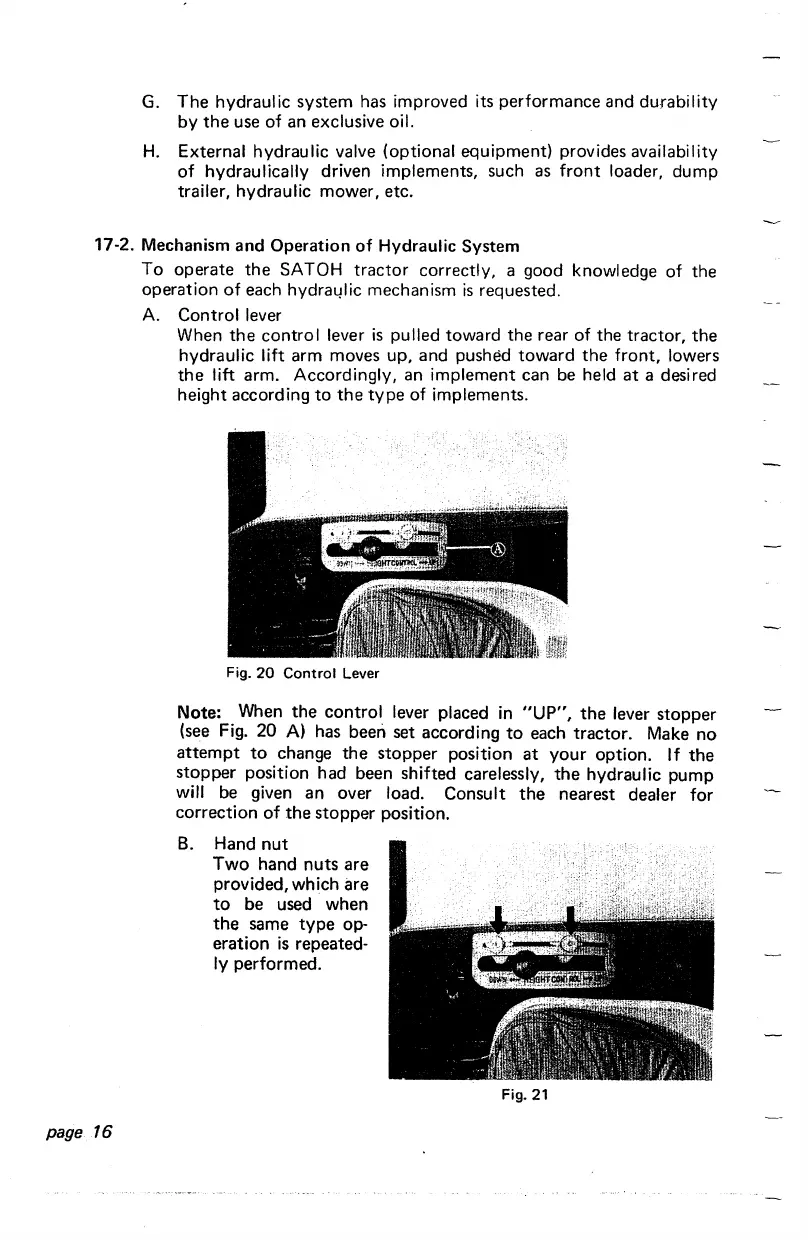

17-2. Mechanism
and
Operation
of
Hydraulic System
page 16
To
operate
the
SATOH
tractor
correctly, a good knowledge of the
operation of each hydra4lic mechanism
is
requested.
A.
Control lever
When
the
control lever
is
pulled toward the rear of the tractor,
the
hydraulic lift arm moves up, and pushed
toward
the
front, lowers
the
lift arm. Accordingly, an implement can be held
at
a desired
height according
to
the
type
of implements.
Fig.
20
Control
Lever
Note: When
the
control lever placed
in
"UP",
the
lever stopper
(see Fig. 20 A) has been set according
to
each tractor. Make no
attempt
to
change
the
stopper position
at
your
option. If
the
stopper
position had been shifted carelessly,
the
hydraulic pump
will
be given
an
over load. Consult
the
nearest dealer for
correction of
the
stopper position.
B.
Hand
nut
Two
hand nuts are
provided, which are
to
be used when
the
same
type
op-
eration
is
repeated-
ly performed.
Fig. 21
