6. Technical data
AC motor ..................................... 220 - 240 V~ 50 Hz
Nominal power S1 ........................................ 710 Watt
Operating mode ................................ S2 5min* 900W
Idle speed n
0
- 1st gear .............................................170 - 880 min
-1
- 2nd gear ......................................... 490 - 2600 min
-1
Max. drilling speed
- Steel ..................................................170 - 880 min
-1
- Wood .............................................. 490 - 2600 min
-1
Drill chuck clamping range .......................1,5 - 13 mm
Max. drill stroke. .............................................100 mm
Size of base plate ................................ 330 x 300 mm
Weight ..............................................................9,4 kg
Protection class .................................................. II /
Laser class ................................................................2
Laser wavelength ........................................... 650 nm
Laser power .................................................... < 1 mW
* After an uninterrupted operating period of 5 min-
utes, the device should be allowed to rest until its
temperature has dropped to within 2 K (2° C) of room
temperature.
The workpiece must have a minimum height of
3 mm and a minimum width of 45 mm.
Make sure that the workpiece is always secured
with the clamping device.
Sound
Sound and vibration values were measured in ac-
cordance with EN 62841.
Sound pressure level L
pA
........................... 89,6 dB(A)
Uncertainty K
pA
.................................................... 3 dB
Sound power level L
WA
............................. 102,6 dB(A)
Uncertainty K
WA
................................................... 3 dB
Wear ear-muffs.
The impact of noise can cause damage to hearing.
The above-mentioned noise emission values were
measured in accordance with a standardised test
procedure and can be used to compare one power
tool with another.
The above-mentioned noise emission values can
also be used for the preliminary assessment of ex-
posure.
m Warning:
• The noise emissions during the actual use of the
power tool may differ from the above-mentioned
values depending on the power tool being used,
in particular on the type of workpiece being pro-
cessed.

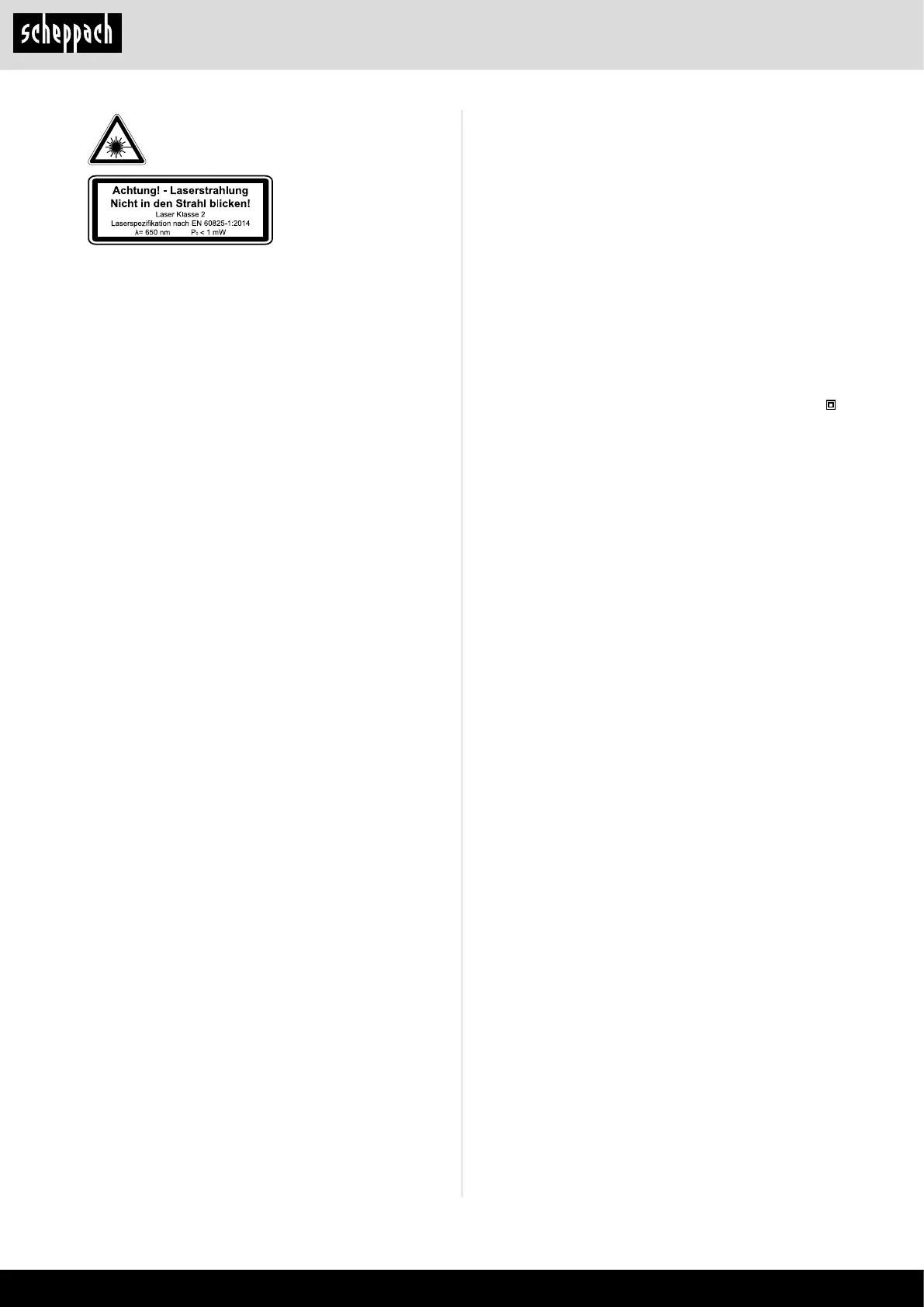

Attention: Laser radiation
Do not stare into the beam
Class 2 laser
Protect yourself and you environment from acci-
dents using suitable precautionary measures!
• Do not look directly into the laser beam with unpro-
tected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specied here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected expo-
sure to the beam can occur.
• The laser may not be replaced with a different type
of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.
Remaining hazards
Even if you use this electric power tool in accord-
ance with instructions, certain residual risks
cannot be eliminated. The following hazards may
arise in connection with the equipment’s con-
struction and layout:
• Lung damage if suitable dust protection mask is not
worn.
• Hearing damage if suitable hearing protection is
not worn.
• Damage to health resulting from hand/arm vibra-
tion if the device is used over an extended period of
time or if it is not properly operated and maintained.
m Warning!
This electric tool generates an electromagnetic eld
during operation. This eld can impair active or pas-
sive medical implants under certain conditions. In or-
der to prevent the risk of serious or deadly injuries,
we recommend that persons with medical implants
consult with their physician and the manufacturer of
the medical implant prior to operating the electric tool.
