26
|
GB
9 Handle insertion tool with caution. They are ide-
ally stored in the originally package or special
containers. Wear protective gloves in order to im-
prove grip and to further reduce the risk of injury.
10 Prior to the use of insertion tools, make sure that
all protective devices are properly fastened.
11 Prior to use, make sure that the insertion tool
meets the technical requirements of this electric
tool and is properly fastened.
12 Only use the supplied saw blade for sawing oper-
ations in wood, materials similar to wood, plastics
and non-ferrous metals (except for magnesium
and alloys containing magnesium).
13 Never use the saw to cut other than dened ma-
terials.
14 Make sure that the machine is safe before work-
ing.

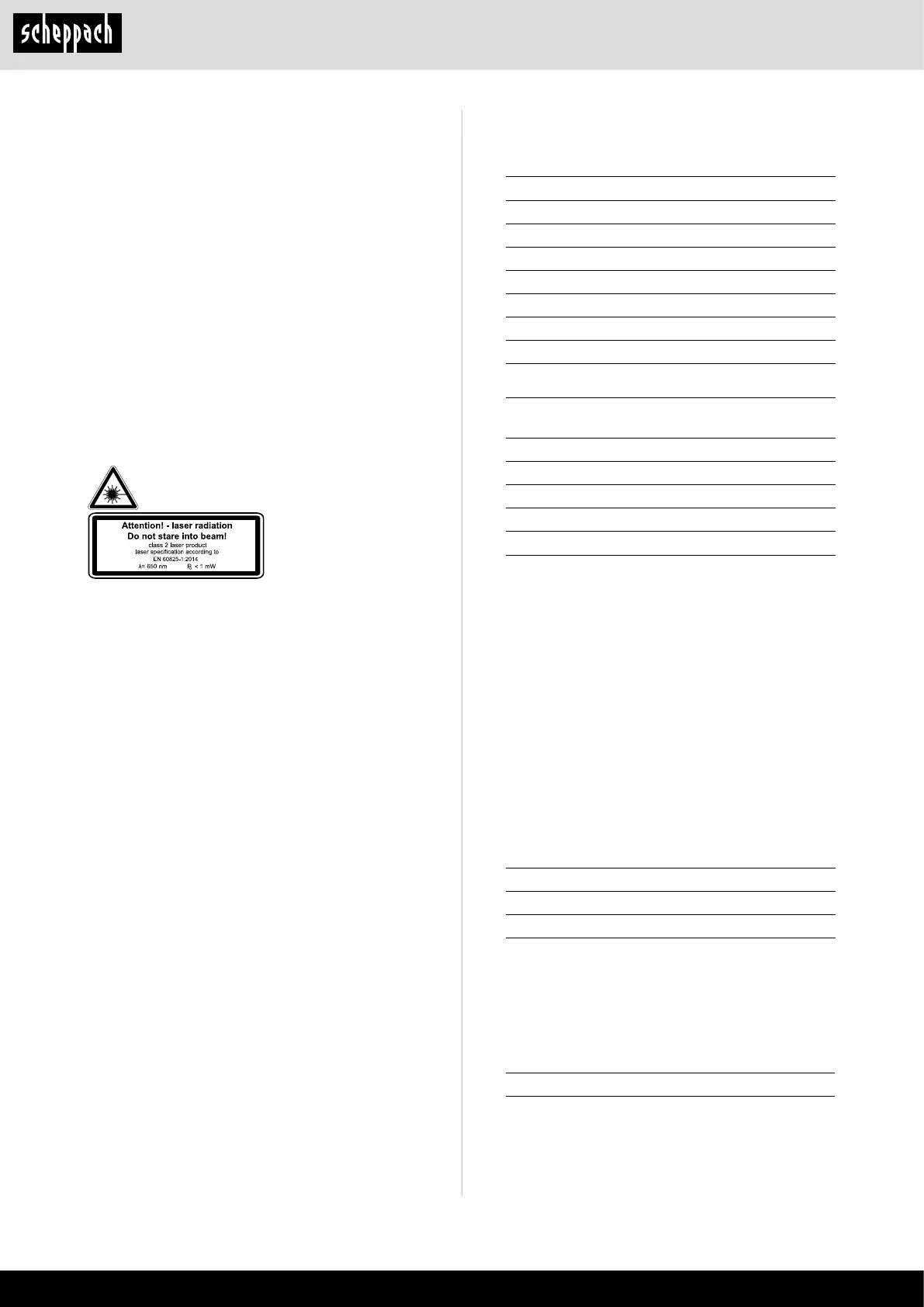

Attention: Laser radiation
Do not stare into the beam
Class 2 laser
Protect yourself and you environment from ac-
cidents using suitable precautionary measures!
• Do not look directly into the laser beam with un-
protected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specied here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected expo-
sure to the beam can occur.
• If the mitre saw is not used for an extended period
of time, the batteries should be removed.
• The laser may not be replaced with a different type
of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representa-
tive.
6. Technical data
AC motor 230 V~ 50Hz
Power 2000 Watt
Operating mode S6 25%*
Idle speed 4200 min
-1
Carbide saw blade ø 305 x ø 30 x 3,0 mm
Number of teeth 60
Swivel range -45° / 0°/ +45°
Mitre cut 0° to 45° left / right
Saw width at 90° 340 x 90 mm
Saw width at 45°
240 x 90 mm
Saw width at 2 x 45°
(double mitre cut)
240 x 55 mm
Protection class II
Weight (incl. accessories) 23,0 kg
Laser class 2
Wavelength of laser 650 nm
Laser output < 1 mW
* S6 25%, continuous operation periodic duty.
Identical duty cycles with a period at load fol-
lowed by a period at no load. Running time 10
minutes; duty cycle is 25% of the running time.
The work piece must have a minimum height of
3 mm and a minimum width of 10 mm.
Make sure that the workpiece is always secured
with the clamping device.
Noise and vibration
Total vibration values determined in accordance with
EN 61029.
sound pressure level L
pA
99,9 dB(A)
uncertainty K
pA
3 dB
sound power level L
WA
112,9 dB(A)
uncertainty K
WA
3 dB
Wear hearing protection.
The effects of noise can cause a loss of hearing.
Total vibration values (vector sum - three directions)
determined in accordance with EN 61029.
Vibration emission value a
h
2,091 m/s²
Uncertainty K 1,5 m/s²
